Questions & Answers
Will this work with New England's km3 Max rope Expert Answer

Recommend reaching out to manufacturer there number is (+1) 801 926 1500

by Ryan Tarczynski, Gear Expert, July 3, 2021
Customer Reviews
Most Recent Reviews Pencil chicane by Climber, January 11, 2024
This works just as it's described allows you to do single rope technique using zigzag or a climate hitch. The okay carabiner does work with the chicane is just really really stiff to make it go in.
Read 1 Review

Free Express Shipping!

Free Two Day Shipping
Select Two-Day Shipping and use coupon code 2DAYAIRClick to Copy Coupon Code during checkout to get a free shipping upgrade if eligible!
Color: Yellow Weight: 255 gRope Diameter Range: 11.5 - 13 mm

Code: PET-RPD-PETZL19S53-D022CA00

MPN: D022CA00

UPC: 3342540826533

Free Two Day Shipping
$174.95

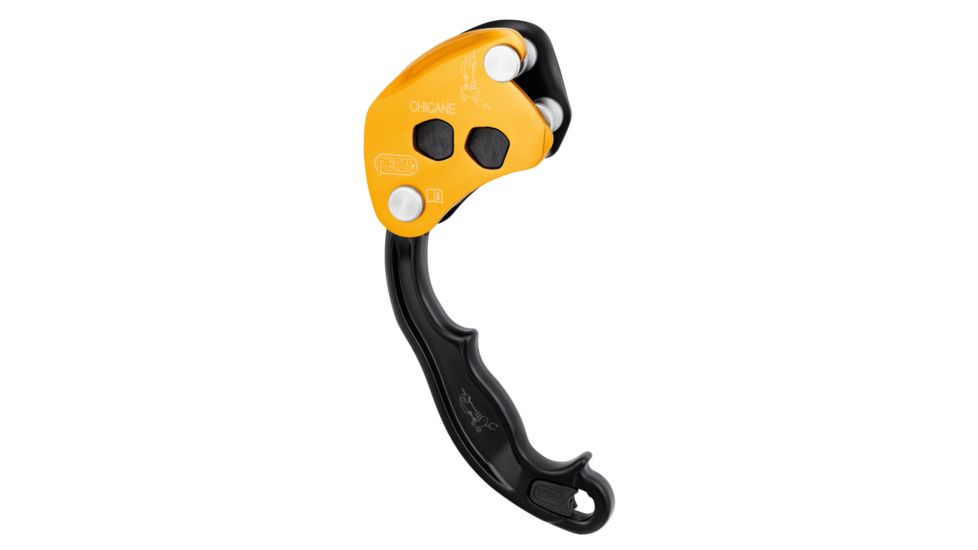

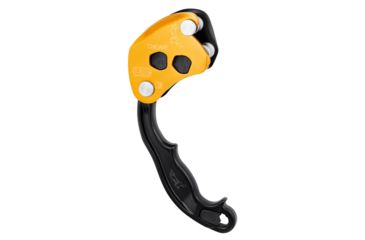

Product Info for Petzl Chicane Auxiliary Brake

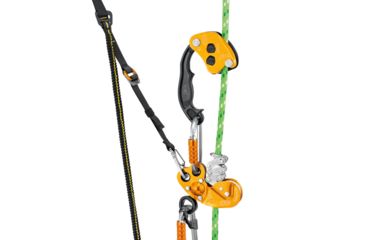

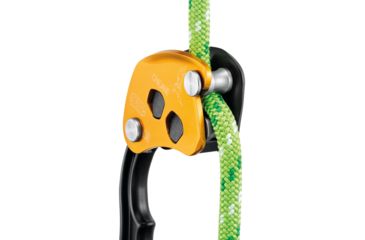

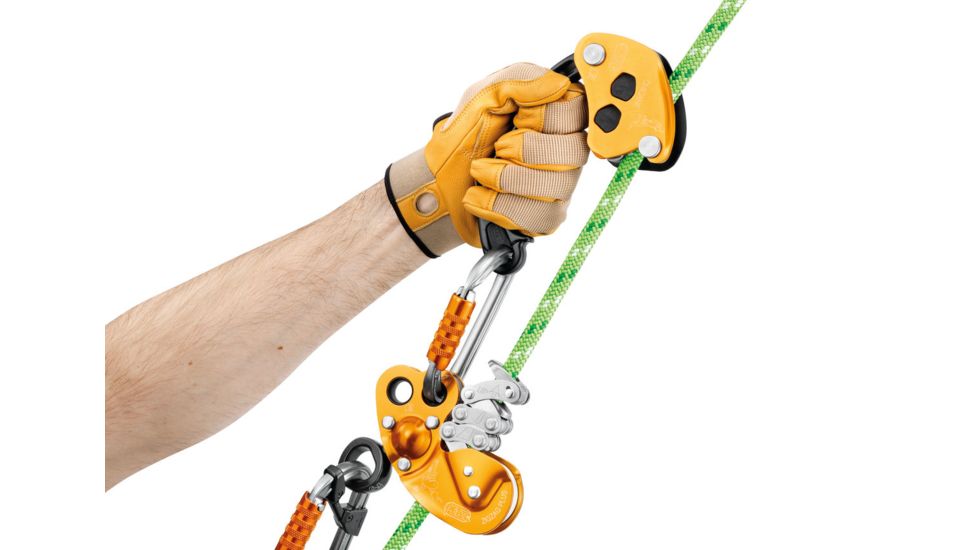

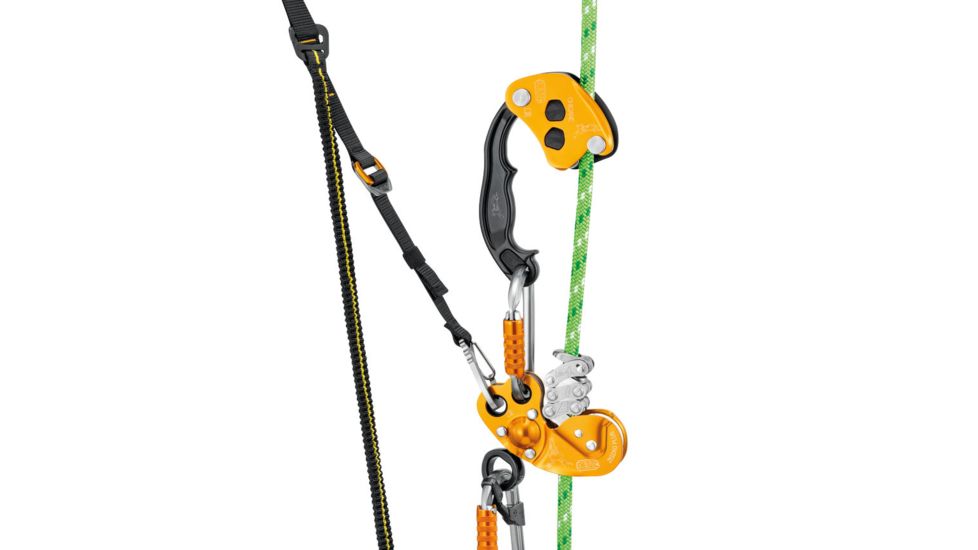

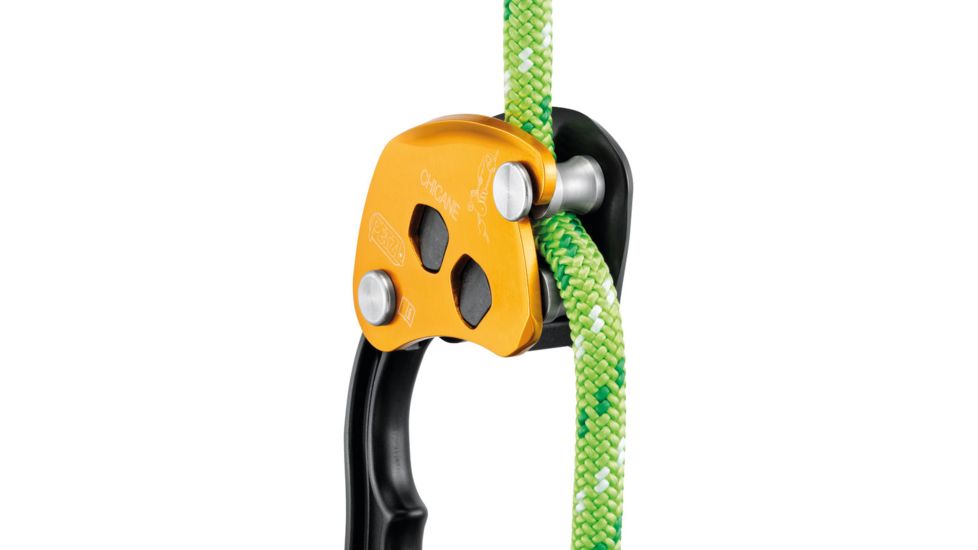

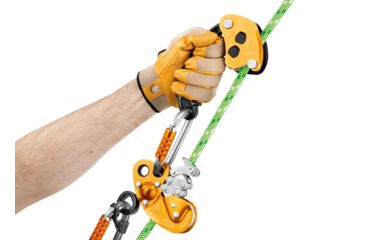

The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.image

Specifications for Petzl Chicane Auxiliary Brake:

Manufacturer: Petzl
Color: Yellow
Weight: 255 g
Fabric/Material: Aluminum, steel, nylon
Rope Diameter Range: 11.5 - 13 mm
Type: EN 1891 type A low stretch kernmantel ropes
Breaking Strength: 140 kg

Features of Petzl Chicane Auxiliary Brake

  • Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:- continuous additional braking action, thanks to the added friction of the two friction pins- used with an Am'D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents- ergonomic handle facilitates movement while limb walking
  • Easy installation:- openable side plate for quick and easy installation on the rope- triple action unlocking limits rick of accidentally opening the side plate - connects on the upper hole of the mechanical Prusik
  • Optimized durability, thanks to the two friction pins, available as spare parts
  • CHICANE allows the user to work in compliance with the ANSI Z133 standard

Package Contents:

  • Petzl Chicane Auxiliary Brake

Petzl Chicane Auxiliary Brake Orderable Models

List of Orderable Models

Petzl Chicane Auxiliary Brake, One Size, D022CA00 , MPN: D022CA00 , UPC: 3342540826533 , Code: PET-RPD-PETZL19S53-D022CA00
