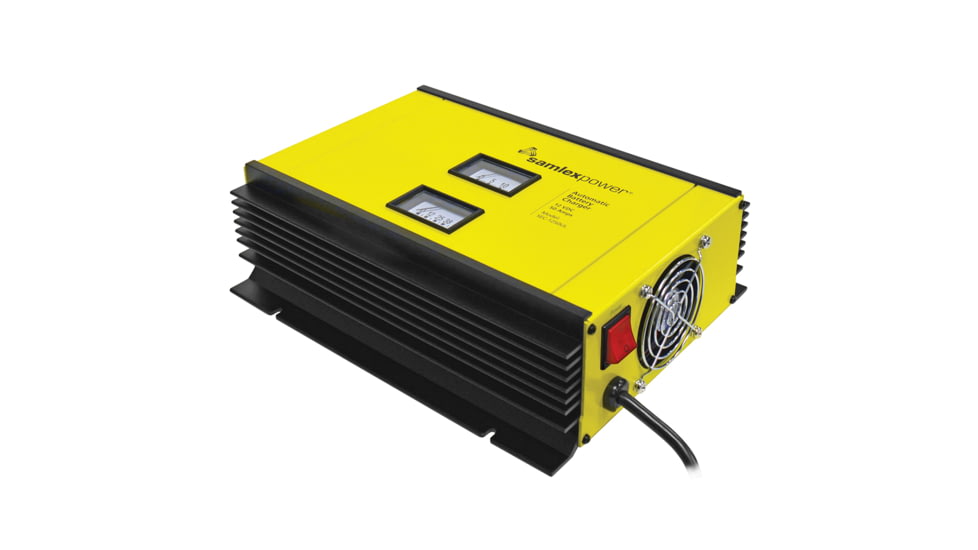

Samlex America 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor 67189
Tap Tap to Zoom
Questions & Answers
- Color:
- Black
- Amperage:
- 50 amps
- Voltage:
- 12 volts
Code: 743-CR-CWR2854-SEC-1250UL
MPN: SEC-1250UL
UPC: 622988083037
List: $714.37Save 22%
$558.80
Product Info for Samlex America 50A Battery Charger
50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp SensorThis advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V 60 Hz or 230 V 50 Hz AC source. By means of a DIP switch setting conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply.
Specifications for Samlex America 50A Battery Charger:
| Manufacturer: | Samlex America |
| Color: | Black |
| Amperage: | 50 amps |
| Voltage: | 12 volts |
Features of Samlex America 50A Battery Charger
- Switch mode technology for high efficiency lightweight and quiet operation
- Automatic operation for ALL Lead Acid Batteries Flooded AGM or Gel Cell
- Can charge 2 banks of batteries simultaneously no isolator necessary
- Can be used as a power supply or DC UPS when used in conjunction with a battery
- User Configurable AC Input voltage 120 or 230 VAC 50 / 60 Hz
- User Selectable ( by DIP Switch) for 2 or 3 stage rapid and safe charging of stand-alone and loaded Lead Acid Batteries
- Half Power Mode reduces maximum charging current to half the rated capacity allows for safe charging of lower capacity batteries
- Voltmeter and Ammeter for monitoring
- Fan cooled based on output current
- Protections: Short circuit overload reverse battery connection and over temperature
- Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
- Input: 120 VAC 60 Hz or 230 VAC 50 Hz
- Output: 12 VDC
- Amps: 50
- Remote Control: 900-RC
- Weight: 9.0 (lbs)
- Weight: 4.1 (kg)
- Dimensions: 13.03 x 9.60 x 3.82 (in)
- Dimensions: 331 x 244 x 97 (mm)
- Safety: Listed to UL Standard UL-1564 EMI Compliant to FCC Part 15(B) Class B
- Warranty: 2 Year Limited
- Applications:Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
Package Contents:
- Samlex America 50A Battery Charger
Samlex America 50A Battery Charger Orderable Models
List of Orderable Models
- Samlex America 50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor, SEC-1250UL , MPN: SEC-1250UL , UPC: 622988083037 , Code: 743-CR-CWR2854-SEC-1250UL
