New! Samlex America Power Supply SEC-1223 Color: Black, Application: Outdoor, w/ Free S&H

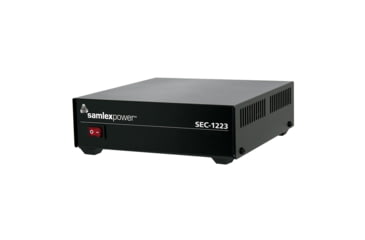

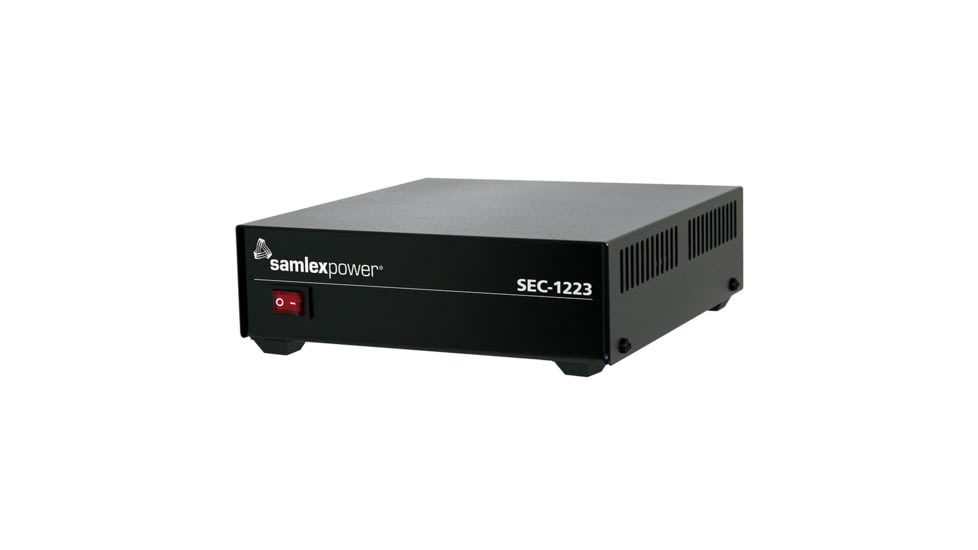

SEC-1223 Power SupplyThis high-efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.Features:Advanced switch-mode technologyReliable power with minimum weight and sizeCircuit innovations minimize output voltage ripple and RFIInput voltage can be set at 120VAC or 240VAC (internal jumper)UL listed to both USA & Canadian safety standardsSpecifications:Input: 100-130 VACOutput: 13.8 VDCAmps: 23 AmpsFuse: 6.3 AmpsWeight: 3.5 (lbs)/1.6 (kg)Dimensions: 7.28 x 8.19 x 2.40 (in)/18.5 x 20.8 x 6.1 (cm)Safety: UL, FCCApplications:Two way radio base stationsCommunications systemsSecurity systemsTest equipmentPlottersGPS receiversAutomotive & Marine displaysDC computers12 Volt lighting systemsOEM applications

Specifications for Samlex America Power Supply:

Package Contents:

• Samlex America Power Supply
