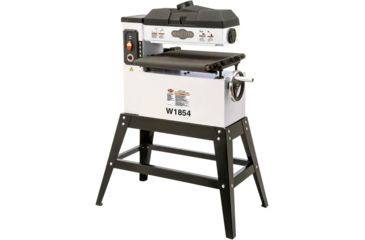

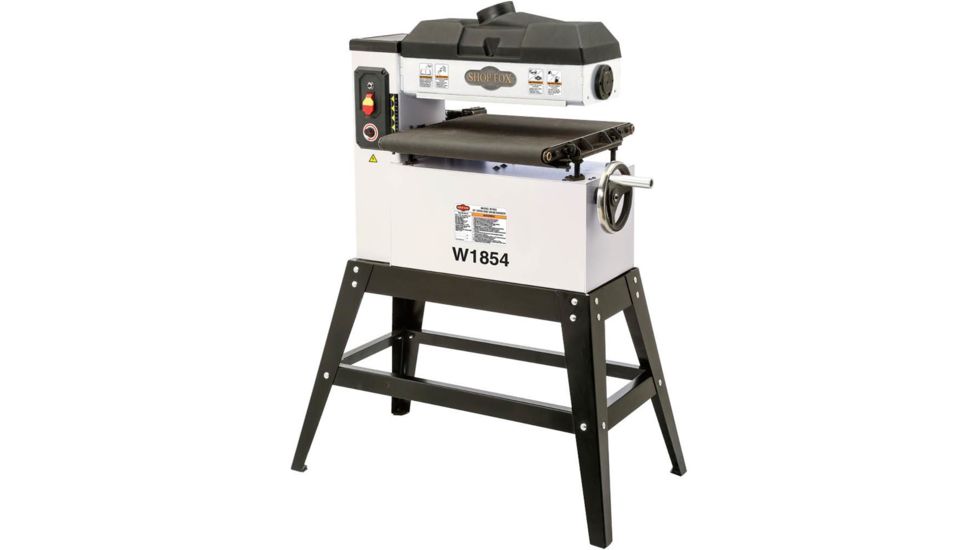

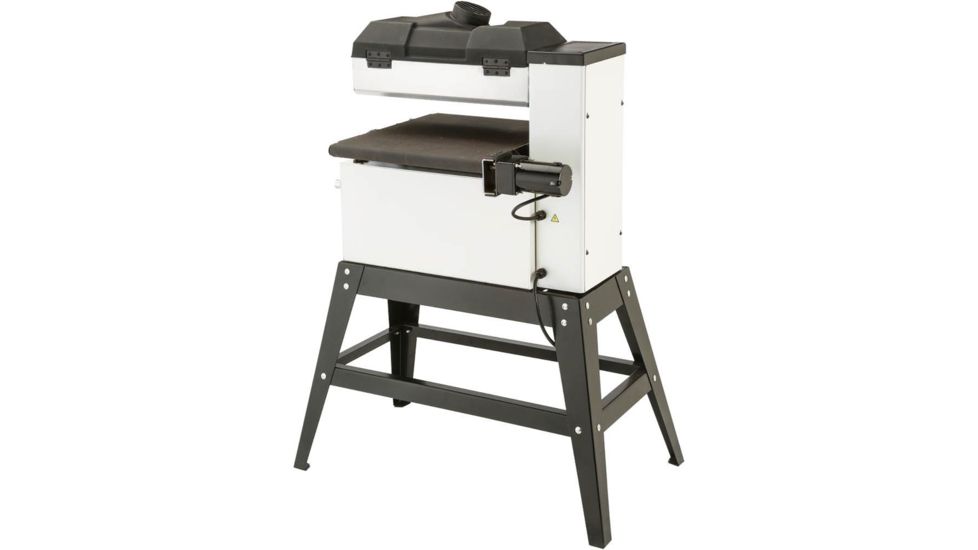

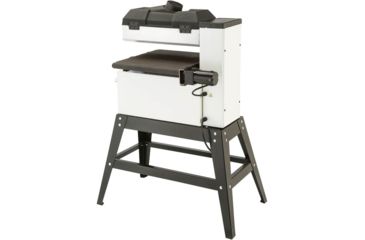

Shop Fox 11/2 HP Open End Drum Sander W1854

Shop Fox 18in 11/2 HP Open End Drum Sander, W1854
Shop Fox 18in 11/2 HP Open End Drum Sander, W1854
Shop Fox 18in 11/2 HP Open End Drum Sander, W1854
1 of 2 images
Shop Fox 18in 11/2 HP Open End Drum Sander, W1854
Shop Fox 18in 11/2 HP Open End Drum Sander, W1854
2 of 2 images
Shop Fox 18in 11/2 HP Open End Drum Sander, W1854

Tap Tap to Zoom

Questions & Answers
I am looking to do a final thickness of .09 to .110.. will it do ir? Expert Answer

This has a minimum board thickness of 1/8"

by Nick B., Gear Expert, October 21, 2021
Can this item be purchased without the stand? Jim Expert Answer

No you cannot.

by Ryan Tarczynski, Gear Expert, October 1, 2021
View All Q&A You Have a Question? Ask!

Product Discontinued by Manufacturer

Shop Fox 11/2 HP Open End Drum Sander has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tools yourself to try and find the perfect replacement for you!

Product Info for Shop Fox 11/2 HP Open End Drum Sander

Our 18" OpenEnd Drum Sander offers a lot of sanding capacity in a small amount of floor space. Sand stock up to 36" wide and 41/2" thick! Unlike other openend drum sanders, the table moves up and down instead of the head. This means drum support is much more rigid during sanding operations, giving you more consistent results. Also includes builtin dust collection. Check out the rest of the features below and you'll agree that this featurepacked sander is an incredible value!image

Features of Shop Fox 11/2 HP Open End Drum Sander:

  • Sanding motor: 1-1/2 HP
  • 120V
  • single-phase
  • 13 Amps
  • Sandpaper speed: 2600
  • 3400 FPM
  • Conveyor feed rate: 0-12 FPM
  • Maximum stock dimensions: 36" wide x 4-1/2" thick
  • Minimum board length: 6"
  • Minimum board thickness: 1/8"
  • Sanding drum size: 4"
  • Dust collection port: 4"
  • V-belt drive
  • Steel construction
  • 18" x 44-1/2" abrasive conveyor belt
  • Variable-speed conveyor
  • Stationary drum head stock
  • Safety switch
  • Uses 3" wide sandpaper roll
  • Easy access for sandpaper changes
  • Includes 100-grit sandpaper
  • Overall size: 50" H x 35-1/2" W x 22-1/2" D
  • Approximate shipping weight: 235 lbs.

Package Contents:

  • Shop Fox 11/2 HP Open End Drum Sander
