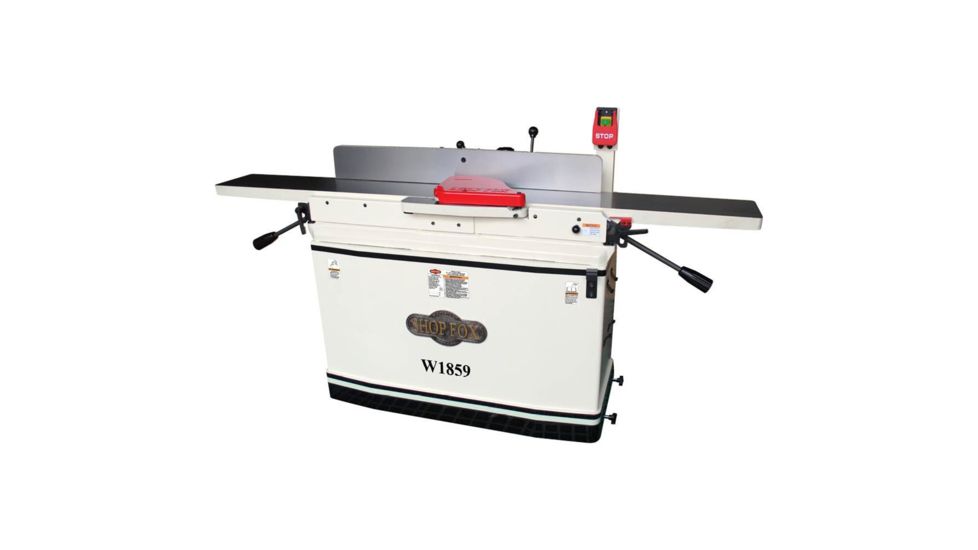

Shop Fox Parallelogram Jointer with Mobile Base W1859

Shop Fox Parallelogram Jointer with Mobile Base, 8x76 W1859
Shop Fox Parallelogram Jointer with Mobile Base, 8x76 W1859
1 of 1 images
Shop Fox Parallelogram Jointer with Mobile Base, 8x76 W1859

Tap Tap to Zoom

Questions & Answers

Product Discontinued by Manufacturer

Shop Fox Parallelogram Jointer with Mobile Base has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tools, Hand Tools yourself to try and find the perfect replacement for you!

Product Info for Shop Fox Parallelogram Jointer with Mobile Base

This 8" Parallelogram Jointers feature extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal mounted switch is conveniently located for easy on and easy off. This version features a straight knife cutterheadimage

Features of Shop Fox Parallelogram Jointer with Mobile Base:

  • Motor: 3 HP
  • 230V
  • single-phase
  • Total table size: 9" x 76"
  • Fence size: 4-5/8" x 38"
  • Maximum depth of cut: 1/8"
  • Rabbeting capacity: 1/2"
  • Cutterhead speed: 5500 RPM
  • Cutterhead diameter: 3-1/16
  • Cuts per minute: 22,000
  • Cutterhead knives: 4
  • Lever-adjusted table height with depth gauge
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Precision-ground cast-iron tables
  • Extra-long 40" infeed table
  • Powder-coated finish
  • 4" dust port with built-in dust chute
  • Parallelogram table design
  • Power transfer: Poly V-belt
  • Switch: magnetic push-button switch with large off paddle for safety
  • Fence system: positive stops at +/- 45 degrees and 90 degrees
  • Approximate shipping weight: 298 lbs

Package Contents:

  • Shop Fox Parallelogram Jointer with Mobile Base
