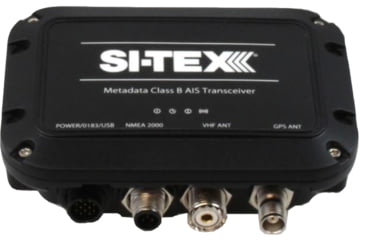

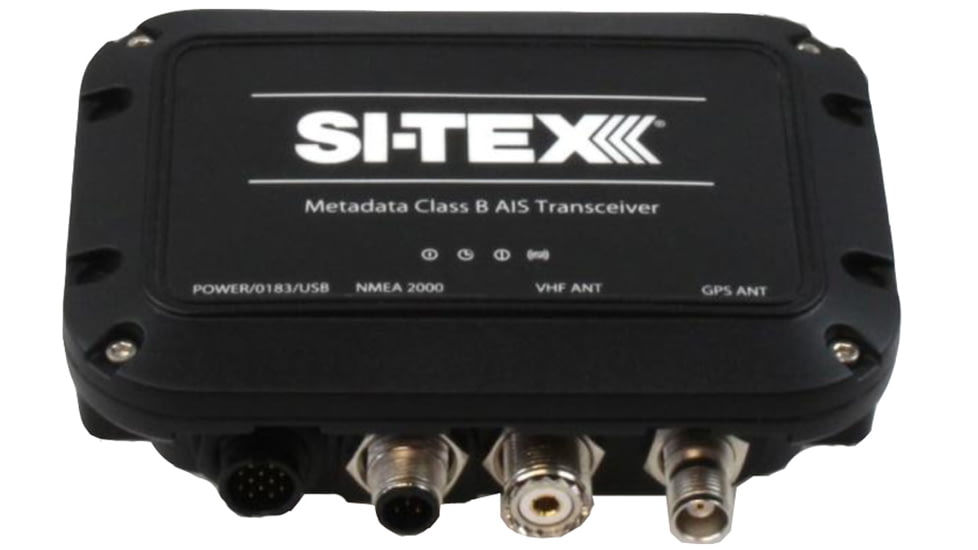

Si-Tex Metadata Class B AIS Transceiver MDA-1 21% Off w/ Free S&H

Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna.

Features of Si-Tex Metadata Class B AIS Transceiver:

Power

• 12 to 24V DC
• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB
• NMEA2000
• IEC61162-1 (NMEA0183) output, 38400baud
• IEC61162-1 (NMEA0183) input, 4800baud
• Silent mode switch input

Package Contents:

• Si-Tex Metadata Class B AIS Transceiver
• 2m power and NMEA0183 cable
• User manual and quick start guide
• Product CD
• Fixing screws
