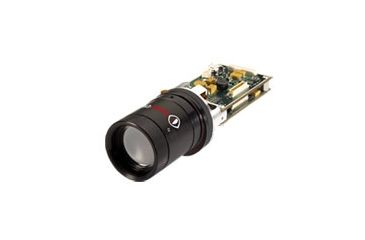

Name: Thermal Eye Infrared Sensor 17-640 Series
Brand: Thermal Eye
SKU: EY-TIA-17640
Availability: Discontinued

Product Info for Thermal Eye Infrared Sensor 17-640 Series

Thermal-Eye Series 17-640 is a high performance yet compact and lightweight design. The 17-640 by Thermal Eye Cameras and Thermal Scopes features 640 x 480 amorphous silicon wafer-level packaging for greater sensitivity, sharper images and the same response time and performance as the larger arrays. The Thermal Eye 17 640 thermal imager provides excellent target resolution at longer ranges. The Thermal Eye 17640 infrared device is available in analog, digital, or dual mini digital cores in models with or without lens. The infrared capability and an open platform for expansion and ease in integration into security systems. Be sure to see the full line of Thermal Eye thermal imagers for more high grade, precise thermal sensors.

The following models of Thermal Eye 17640 Thermal Image Sensors are available:

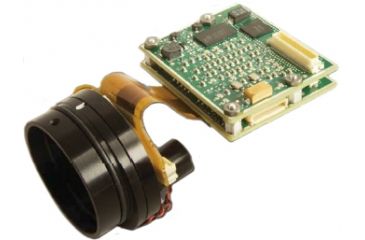

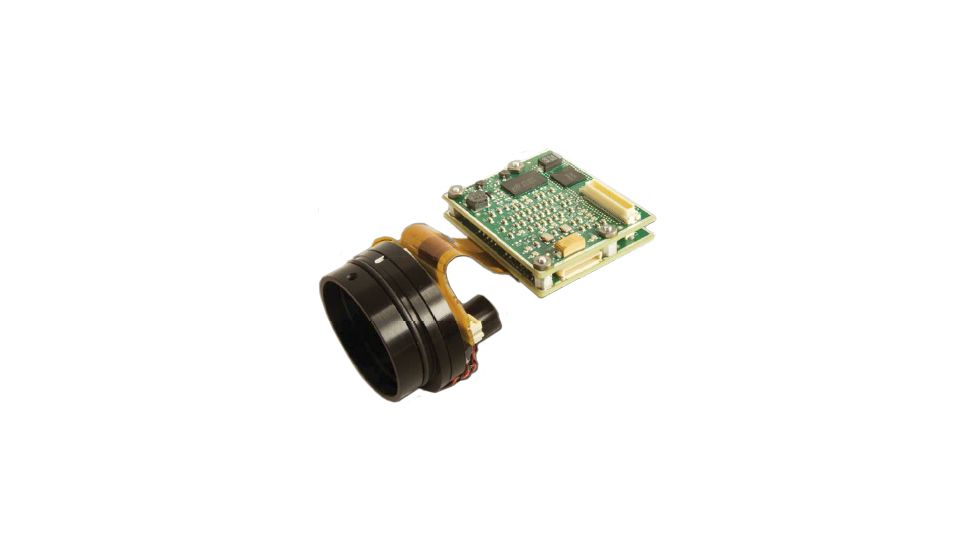

5000653-0001: 17-640 Digital No Lens Core Kit with DFE Single CCA
5000351-0001: 17-640 Digital No Lens Core Kit with DFE Dual Mini CCA
5000352-0001: 17-640 Analog No Lens Core Kit with DFE Dual CCA

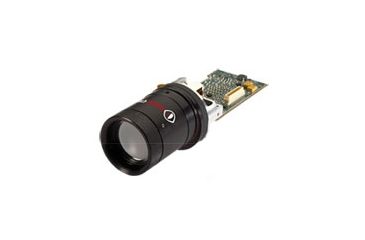

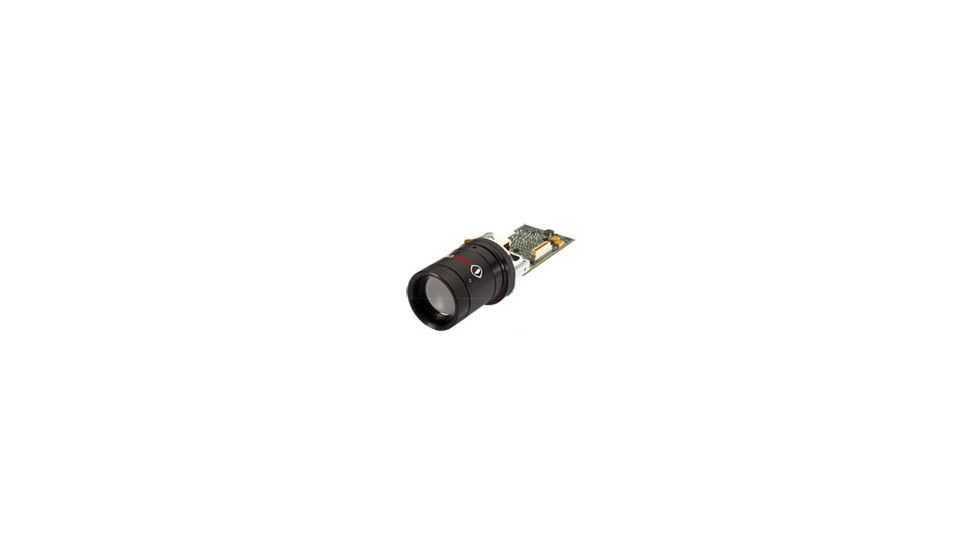

5000350-0002: 17-640 Digital 140 HFOV f/1.0 non Athermalized Lens Single CCA

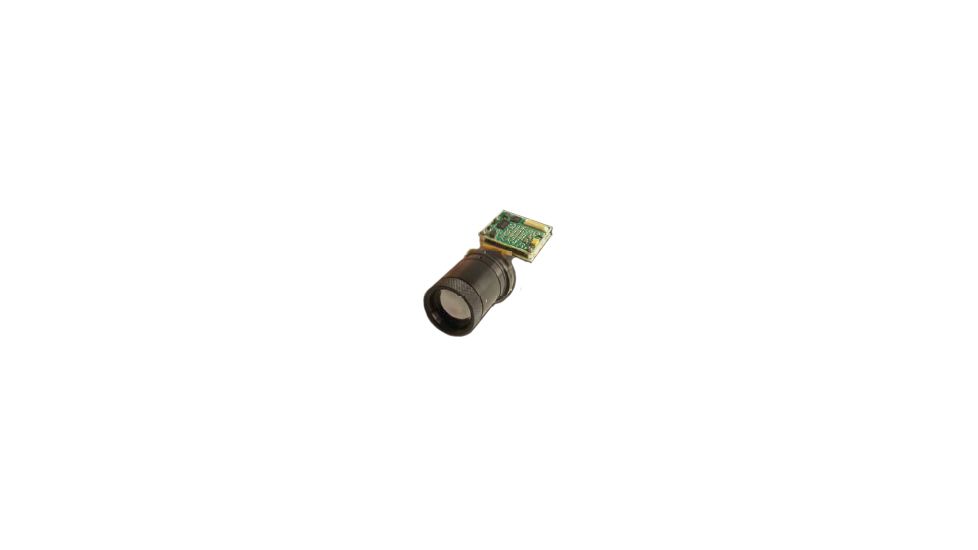

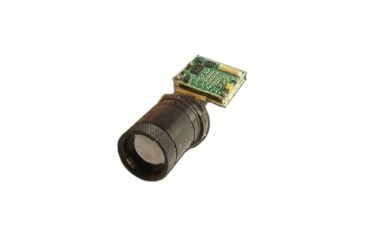

5000351-0002: 17-640 Digital 140 HFOV f/1.0 non Athermalized Lens Dual Mini CCA
5000352-0002: 17-640 Analog 140 HFOV f/1.0 non Athermalized Eye Lens Dual CCA
5000350-0003: 17-640 Digital 140 HFOV f/1.2 Core Kit Athermalized Lens Single CCA
5000351-0003: 17-640 Digital 140 HFOV f/1.2 Athermalized Core Dual Mini CCA
5000352-0003: 17-640 Analog 140 HFOV with f/1.2 Athermalized Core Dual CCA
5000350-0005: 17-640 Digital 280 HFOV f/1.2 Athermalized Core Single CCA
5000351-0005: 17-640 Digital 280 HFOV f/1.2 Athermalized Core Dual Mini CCA
5000352-0005: 17-640 Analog 280 HFOV f/1.2 Athermalized Core Dual CCA
5000350-0007: 17-640 Digital 550 HFOV f/1.0 Athermalized Core Single CCA
5000351-0007: 17-640 Digital 550 HFOV f/1.0 Athermalized Core Dual Mini CCA

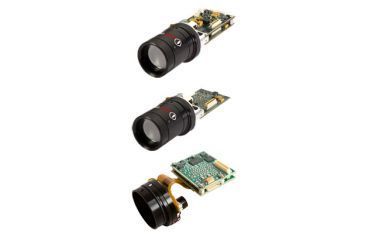

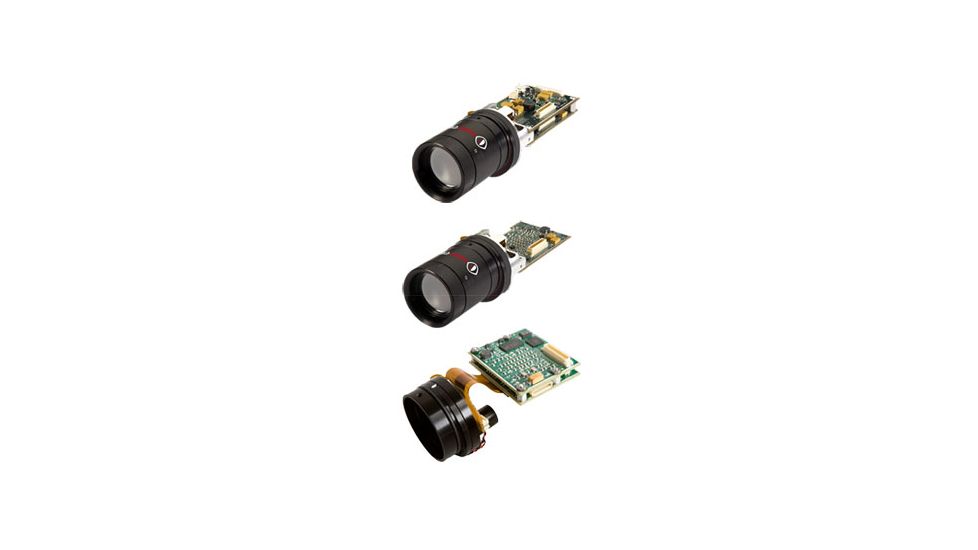

5000352-0007: 17-640 Analog 550 HFOV f/1.0 Athermalized Core Dual CCA
5000350-0004: 17-640 Digital 200 HFOV f/1.0 Athermalized Core Single CCA
5000351-0004: 17-640 Digital 200 HFOV f/1.0 Athermalized Core Dual Mini CCA
5000352-0004: 17-640 Analog 200 HFOV f/1.0 Athermalized Core Dual CCA
5000350-0006: 17-640 Digital 400 HFOV f/1.0 Athermalized Core Single CCA
5000351-0006: 17-640 Digital 400 HFOV f/1.0 Athermalized Core Dual Mini CCA
5000352-0006: 17-640 Analog 400 HFOV f/1.0 Athermalized Core Dual CCA

Specifications for Thermal Eye 17-640 Series Thermal Imaging Sensor:

Focal Plane Array

Material, Structure & Format:	Uncooled Amorphous Silicon Microbolometer, 17 micron, 640 x 480 pixels
Spectral Response:	LWIR (7.5 - 13.5μm)
Thermal Sensitivity:	≤50 mK
Refresh Rate:	30 Hz
Interface/Controls

Camera Setup:	USB and RS-232 available
Discrete Controls:	Programmable Electronic Zoom, Polarity and Touchup signals
Thermal Imaging System Performance

Start-up Time:	≤ 5 seconds
Brightness/Contrast:	Advanced Image Processing Utilizing AGC and Histogram Equalization Modes
Environmental Characteristics

Operating Temperature:	-40°C to 85°C
Storage Temperature:	-45°C to 100°C

Optics

Focus Type:	HFOV	FL(mm)	HD Range	FOV	FL(mm)	HD Range	FOV	FL(mm)	HD Range
Manual (Available):	14°*	46	1.3km	28°	22	670m	55°	10	350m
Manual (Planned):	20°	31	930m	40°	15	500m

HD Range = Human Detection Range assuming a 0.75m x 0.75m target. 50% confidence. Calculated using NVTherm.

All lenses are f/1.0 athermalized unless otherwise specified. FOV & FL values are nominal.

*14° lens is f/1.2. Non-athermalized 14° f/1.0 lenses are available.

Video

:	Digital	Analog
Analog Output:	N/A	NTSC (monochrome)
Digital Output:	8-bit digital, or 16-bit NUC, or raw data	N/A
Output Resolution:	640 x 480	640 x 480
Power

Input Voltage:	3.3V, 5V Regulated	8-32V single supply
Power Dissipation @ 25°C Ambient:	<1.8 Watts RMS	<2.4 Watts (@12VDC) RMS
Dimensions (w/o Lens, LWH)

:	Weight w/o Lens	Size CCA's (LWH)
Digital 4" x 1.7" x 1.7":	<71g	1 circuit card 2.73" x 1.67" x 0.42"
Analog 4" x 1.7" x 1.7":	<92g	2 circuit cards 2.73" x 1.67" x 0.67"
Dual Mini Digital 3.6" x 2.0" x 1.7":	<74g	2 circuit cards 1.70" x 2.00" x 0.60"

Features of ThermalEye Infrared Imager 17 640 Series:

Extensive customization and control available through USB interface or serial communication interface
Programmable E-Zoom Settings
Real-time control of touch up parameters
Digital data accessible through the expansion port
Analog, digital, and dual mini formats available with or without a lens
Sophisticated user interface for OEM customization
Programmable electronic zoom sequence, expansion port for video processing and real-time control of touch up parameters
17μm 640 x 480 format assures better target resolution and longer stand-off range
Compared to 25μm, 17μm allows ~30% reduction in lens length and diameter while maintaining range performance
17 micron detector − Wafer level packaging enables small detector size
Size, weight and power − Compact design weighs less than 95g without lens
Three configurations − Analog, digital, or dual mini digital cores are available with or without lens
Sophisticated GUIs − Flexible OEM customization
Open architecture − Expansion port provides access to digital data along video processing chain for advanced OEMs
Integration Support − Efficient and knowledgeable technical support available

Package Contents:

Thermal Eye 17-640 Infrared Sensor
