Code: TPL-ON-TP-H-LS-B20
MPN: TP-H-LS-B20

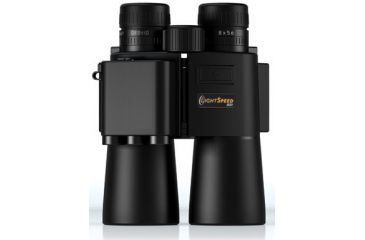

Product Info for Torrey Pines Logic Binoculars LightSpeed 2 Unit Kit B20
The Torrey Pines Logic LightSpeed B20 Unit is the latest generation of the optical communication system, incorporating the latest technology in a handheld optics scopes. Binoculars Kit B 20 from Torrey Pines Logic is built on the award-winning Geovid 8x56 BRF binocular platform by Leica. The eye-safe InfraRed LED used by B-20 allows non-visible communications between units at distances up to 2.5km. Using the supplied headsets, Light Speed B 20 provides full-duplex voice communication. The B20 Unit also functions as a network link to a remote computing device or to another system via USB network connection. In situations where a hardwire connection is unavailable or undesirable, Binoculars B-20 Unit is the perfect alternative to network cables.
Specifications for Torrey Pines Binocular Light Speed Unit:
| Voice Communication: | 16 - 32 - 64Kbps |
| Data Communication: | Up to 1Mbps |
| Data Interface: | USB |
| Operating Distance: | Up to 2.5km (1.56 miles) |
| Transmitter: | IR LED Class 1 |
| Optical Spectral Band: | Custom from 300nm to 2000nm |
| Field-of-View: | 6.8 degrees |
| Headset: | Any tactical/COTS |
| Size: | 153mm x 80mm x 182mm |
| Weight: | 1,230 grams |
| Mounting: | Handheld, tripod |
| Power Supply: | 3 AA batteries or 5V DC, 2.5W |
| Operating Temperature: | -20°C to +60°C |
| Storage Temperature: | -40°C to +80°C |
| Magnification: | 8X |
| Front Lens Diameter: | 56mm |
| Exit Pupil: | 7mm |
| Field-of-View: | 118 meters at 1,000 meters |
| Eye Relief: | 18.5mm |
| Close Focusing Distance: | 5.6 meters |
| Diopter Compensation: | +-3.5 diopters |
Features of Torrey Pines Logic B20 Binocular Kit:
- Most secure communication technology on the market
- LPD (Low Probability of Detection) – LPI (Low Probability of Intercept)
- Bi-directional Data, Voice, and Video
- Uses the best optical binocular system built by Leica
- 100% eye-safe IR LED communications
- Wide field-of-view
- Perfect for emergency or clandestine communications
- Handheld or tripod mounted for ease of use
- Best alternative to cables
Package Contents:
- Torrey Pines Logic Binocular Light Speed B20
- Headsets
- Power supplies
- Cables
