Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter , Color: Black, 25% Off
w/ Free S&H
This 6x ACOG Scope is perfect for Down Range. For my 20" Barrel I can Still Go out to 1000, but Real World, Practical Application. Holosun on Top for 25yds, and dial in at 100yds, anything in that horse shoe is Gone. Finally a Diopter, as well as a ...
Read More...
I have this ACOG on my SASS rifle.
While its a little more heavy then the other ACOGs, I prefer the larger objective lens and higher magnification for my SASS as I am not running around shouldering the rifle anyway.
I am able to make sub MOA g...
Read More...
Will not zero on SA SOCOM II 308 with extended rails or on Trijicon's Rock River 308. Designed for machine gun who's rail is not parallel with the barrel. Optics Planet will not allow return/refund if mounted and fired. 4th time to Trijicon custome...
Read More...
I'm having the same problems as Legacy reviewer with getting it to zero. I have it on a Fulton Armory custom Titan. It zeros great with other scopes I've used. This is the first set of serious problems I've had with Trijicon, and I've had 5 of the...
Read More...
Awesome is the word for it. I am completely 100% satisfied with this scope. Power, clarity, operation, all great. It attaches to the rail with a quick release which is real convenient and I like the lens covers to prevent any damage or just keep the ...
Read More...
The only issue I had is that it showed up with rust on it. A $2000 scope and showed up rusty on the rail bracket as well as on the main scope. Very disappointing. I own many Trigicon scopes but this one is just to heavy. Still need to sight it in fo...
Read More...
1 ACOG Manual, 1 Brown Soft Case Pouch, 1 Eyepiece Flip Cap, 1 Lanyard Assembly for Adjuster Caps Fit TA107, 1 LensPen Fit TA56, 1 Objective Flip Cap with killFlash Anti-Reflection Device Fit TA97, 1 Picatinny Rail Adapter Fit TA75, 1 Warranty Card, GDI Mount
Help support American manufacturing! Marked models of this product have gone through rigorous review and been certified by the manufacturer as Made in the USA.
Product Info for Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter

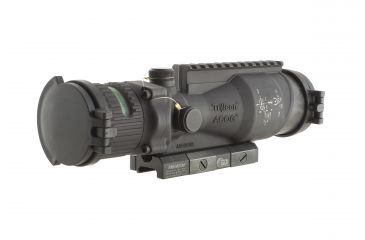

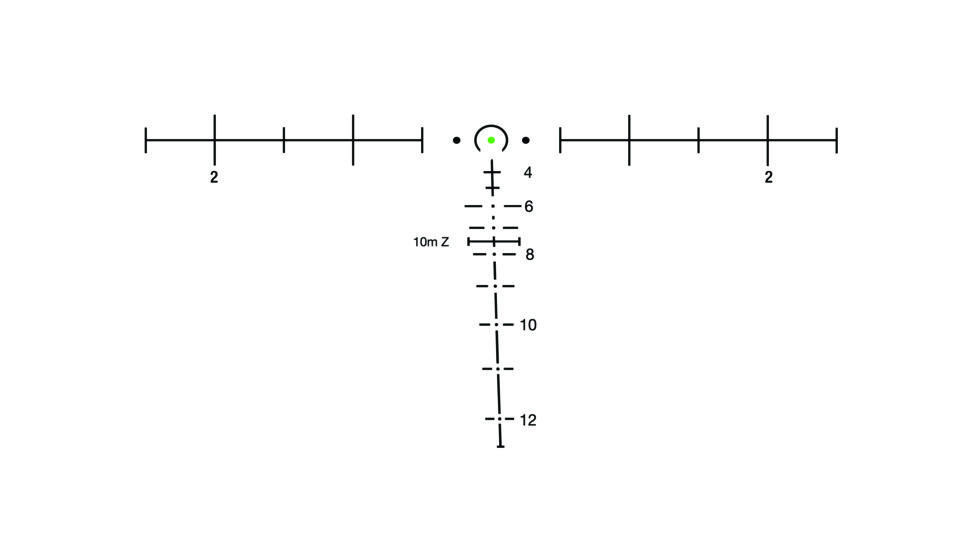

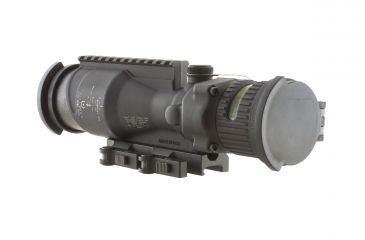

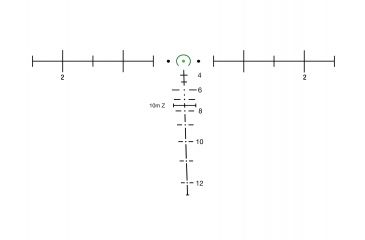

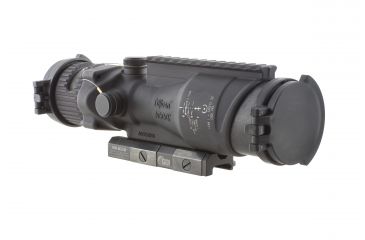

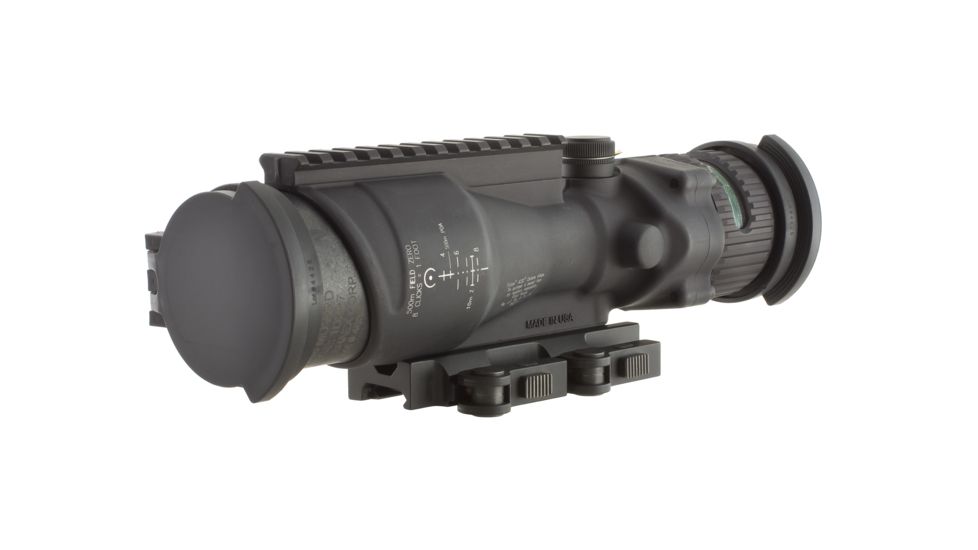

Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ BAC includes M14913 Rail and TA75 Adapter is the military's answer for a magnified, self-luminous Fixed Power Rifle Scopes that enhances target identification and increases hit probability on extended-range shots has given rise to the new Trijicon ACOG 6x48. Powered by Trijicon 's patented fiber optics and tritium-based technology, the new TA648MGO ACOG reticle features a red chevron aiming point. It also incorporates a bullet drop compensator (BDC) with additional aiming points estimated for trajectory of the 5.56mm M855 out to 800 meters. To further improve target acquisition and hit potential, the new A COG 6 x 48mm incorporates Trijicon's Bindon Aiming Concept (BAC) - a revolutionary both-eyes-open method of aiming. Like other members of Trijicon Rifle Scopes, new ACOG 6x48mm TA 648 is Fixed Power Rifle Scopes free and waterproof to 328 feet. This model of the Trijicon 6x 48 ACOG MGO features an M1913 Military rail for mounting of additional Trijicon products such as the RedDot and Reflex.
Specifications for Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter:
Manufacturer:
Trijicon
Objective Lens Diameter:
48 mm
Magnification:
6 x
Reticle:
Illuminated Green TA648MGO-M240 Dot
Exit Pupil:
8 mm
Illumination Color:
Green
Finish:
Matte
Field of View, Linear:
17 ft at 100 yds
Field of View, Angle:
3.3 degrees
Eye Relief:
2.7 in
Color:
Black
Weight:
44.3 oz
Adjustment Click Value:
1/4 MOA
Length:
9 in
Adjustment Type:
MOA
Illumination Type:
Fiber Optics/Tritium
Width:
3.2 in
Fabric/Material:
Forged Aluminum
Height:
3.5 in
Shockproof:
Yes
Fogproof:
Yes
Package Type:
Polymer Hard Case
Included Accessories:
1 Eyepiece Flip Cap, 1 Brown Soft Case Pouch, 1 Picatinny Rail Adapter Fit TA75, 1 LensPen Fit TA56, 1 Lanyard Assembly for Adjuster Caps Fit TA107, 1 Warranty Card, GDI Mount, 1 ACOG Manual, 1 Objective Flip Cap with killFlash Anti-Reflection Device Fit TA97
Magnification Type:
Fixed
Condition:
New
Country of Origin:
USA
Attachment Type:
TA75
Features of Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter:
Always On, Always Ready: Most ACOG models are battery-free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
Take Control: Several ACOG models are designed with a user-adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
Rugged, Reliable Housing Design: Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
"Both Eyes Open" Design: "Both eyes open" shooting using Trijicon's Bindon Aiming Concept (BAC) feature allows for improved situational awareness.
Outstanding Clarity: The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
Exact Target Distances & Holds: Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
Combat Proven: No other magnified optic has been used more in combat than the ACOG.
Shock-Resistant: Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Waterproof: Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Package Contents:
Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter
Picatinny Rail Adapter (TA75)
Brown Soft Case Pouch
Eyepiece Flip Cap
Objective Flip Cap with killFlash Anti-Reflection Device (TA97)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA107)
Trijicon Logo Sticker (PR15)
ACOG Manual
Warranty Card
Trijicon ACOG 6x48 Machine Gun Rifle Scopes w/ Chevron (Horseshoe) BAC includes M14913 Rail and TA75 Adapter Orderable Models
