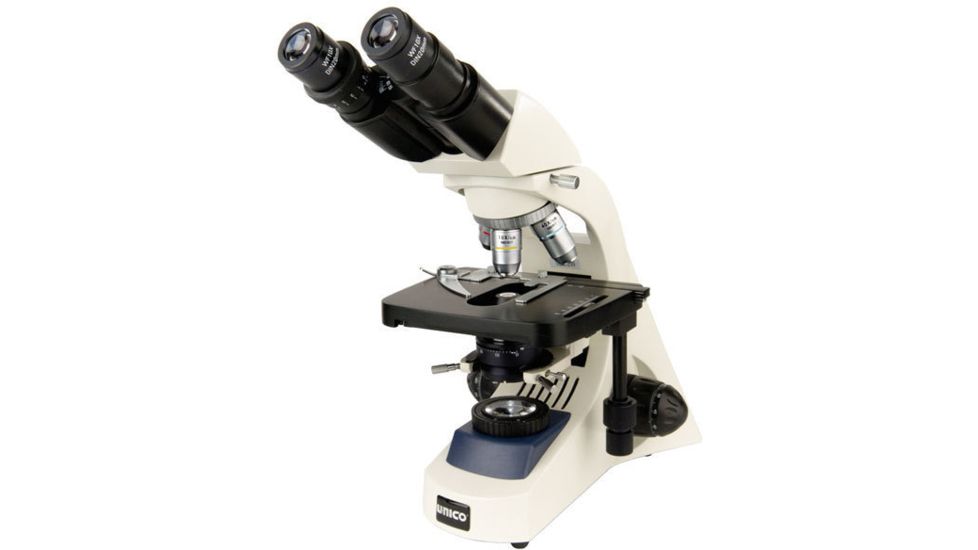

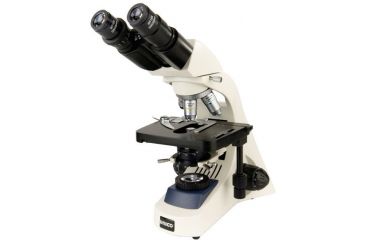

Product Info for UNICO Medical / Research Microscopes IP730 and IP750 Series

The Unico Medical / Research Microscope IP730 or IP750 is a general-purpose, high-performance medical / research microscope that has excellent transmitted light (transmitted) and transmitted brightness characteristics. That's why these UNICO Microscopes are so highly regarded by researchers, doctors, and clinicians worldwide. The UNICO Medical / Research Microscope is also a fully adjustable, mechanical stage that features low-position coaxial X-Y controls. Unlike many competitor's products, the Unico Microscope has an exceptionally smooth X-Y stage travel and allows you to make minute adjustments to the focus and diopter so you can get a truly personalized viewing experience. That's because Unico planned all the moving parts of the Microscopes into an integrated, single unit, allowing you to eliminate many of the moving parts from the microscope if you so desire. This allows you to keep the remainder of the Microscopes workings entirely on one bench. This allows you to put the other, larger, more cumbersome parts out of the microscope as well. This is one of the most "up-to-date" models UNICO sells. All models are the top selling UNICO Microscopes, and they are the result of more than 50 years of experience in the manufacture of precision optical and mechanical parts. The design of these UNICO Microscopes was based on input from doctors, scientists, and other clinicians.image

Features of UNICO Medical / Research Microscopes IP730 and IP750 Series:

  • HEADS: Binocular or Trinocular(80/20 beam splitter) heads . Featuring 55 - 75 mm interpupillary distance adjustment. Both heads rotate 360., one eye tube with diopter adjustment
  • EYEPIECES: 10X, 20mm FN High Eyepoint Widefield (IP730) or 10X, 22mm FN High Eyepoint Widefield (IP750)
  • STAGE: Graduated Mechanical Stage with low-position coaxial X-Y controls. Ball bearing movement allows for smooth, precise adjustments. Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm
  • OBJECTIVES: All models are equipped with either achromatic or plan Infinity 4X, 10X, 40XR and 100XR (Oil) objectives. The Phase Contrast model has 4X Plan, 10X, 40X, and 100X Plan Phase objectives
  • CONDENSER: Focusable and centerable N.A. 1.25 Abbe condenser with graduated iris diaphragm and filter holder. Phase contrast microscopes have a phase condenser
  • ILLUMINATION: Koehler illumination with field iris diaphragm featuring a 6 Volt / 20 Watt Halogen light source. Variable intensity rheostat wheel is located on the left side of the base
  • ELECTRICAL: 110V- 60 Hz to 240V- 50 Hz
  • Five Year Limited Warranty, One Year on electrical system; excludes bulbs and fuses

Package Contents:

  • UNICO Medical / Research Microscopes IP730 or IP750
  • Dust cover
  • Blue filter
  • 2 extra fuses
  • Manual

UNICO Medical / Research Microscopes IP730 and IP750 Series Orderable Models

List of Orderable Models

  • UNICO Binocular DIN Achromat 40X, 100X, 400XR, 1000XR oil IP730 , MPN: IP730 , Code: UI-MI-BBFABE-IP730
  • UNICO Binocular Infinity Achromat 40X, 100X, 400XR 100XR Oil, IP750 , MPN: IP750 , Code: UI-MI-BBFABE-IP750
  • UNICO Binocular DIN Semi-Plan 40x, 100x, 400xr, 1000xr Oil, IP730SP , MPN: IP730SP , Code: UI-MI-BBFABE-IP730SP
  • UNICO Trinocular DIN Achromat 40X, 100X, 400XR 1000XR Oil IP733 , MPN: IP733 , Code: UI-MI-BBFABE-IP733
  • UNICO Trinocular Infinity Achromat 40X, 100X, 400XR 1000XR Oil IP753 , MPN: IP753 , Code: UI-MI-BBFABE-IP753
  • UNICO Trinocular WF10x 4x, 10x, 40xr, 100xr Semi-plan Achromat , MPN: IP733SP , Code: UI-MI-BBFABE-IP733SP
  • UNICO Binocular DIN Plan 40X, 100X, 400XR, 100XR Oil IP730PL , MPN: IP730PL , Code: UI-MI-BBFABE-IP730PL
  • UNICO Trinocular DIN Plan 40X, 100X, 400XR 1000XR Oil IP733PL , MPN: IP733PL , Code: UI-MI-BBFABE-IP733PL
  • UNICO Binocular Infinity Plan 40X, 100X, 400XR, 1000XR Oil IP750PL , MPN: IP750PL , Code: UI-MI-BBFABE-IP750PL
  • UNICO Trinocular Infinity Plan 40X, 100X, 400XR, 1000XR Oil IP753PL , MPN: IP753PL , Code: UI-MI-BBFABE-IP753PL
  • UNICO Binocular DIN Phase Contrast Microscope 40X Plan 100X, 400XR, 1000XR Oil Plan Phase, IP735 , MPN: IP735 , Code: UI-MI-BBFABE-IP735
  • UNICO Trinocular Microscope WF10x eyepiece, plan 4x, Plan Phase Contrast 10x-40xr-100xr , MPN: IP735T , Code: UI-MI-BBFABE-IP735T
  • UNICO Binocular Infintiy 40X Plan 100X, 400XR, 1000XR Oil Plan Phase, IP755 , MPN: IP755 , Code: UI-MI-BBFABE-IP755
  • UNICO Trinocular Infinity Plan 40X, Plan Phase 100X, 400XR, 1000XR Oil, IP755T , MPN: IP755T , Code: UI-MI-BBFABE-IP755T

UNICO Medical / Research Microscopes IP730 and IP750 Series Unavailable & Discontinued Models

List of Unorderable Models

  • Medical Research Kit, Trinocular Microscope IP755T, Video Adapter IP750 8020, Darkfield Condenser, Digital Video Microscope Camera B6 8083 , MPN: IP755T-KIT , Code: UI-MI-BBFABE-IP755T-KIT
