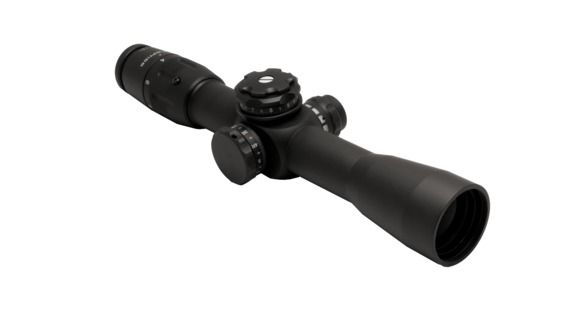

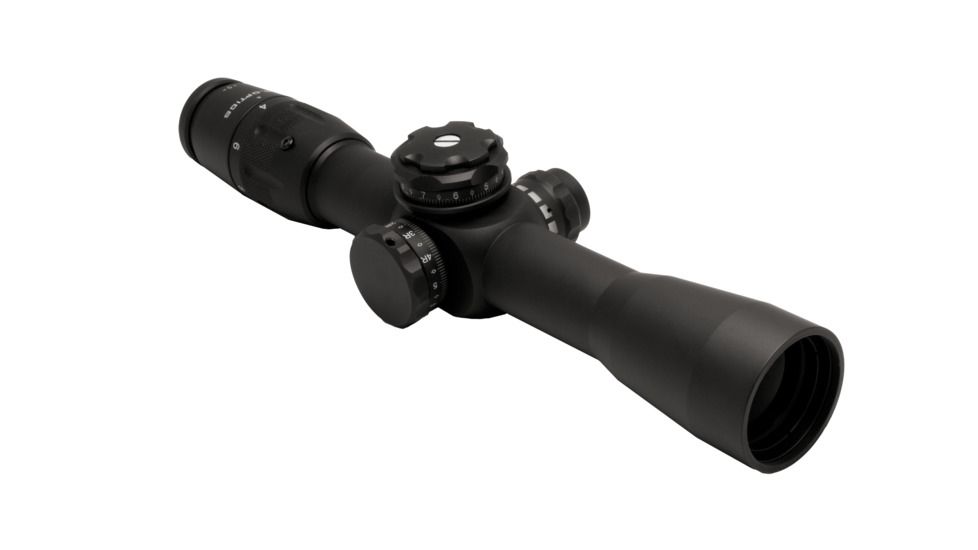

U.S. Optics B-10 1.8-10x40 mm Rifle Scope, Digital Red FFP Horus H425 Reticle, 90 Click EREK Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-10 H425
Tap Tap to Zoom
Product Discontinued by Manufacturer
U.S. Optics B-10 1.8-10x40 mm Rifle Scope, Digital Red FFP Horus H425 Reticle, 90 Click EREK Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-10 H425 has been discontinued by U.S. Optics and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes, Rifle Scopes & Accessories yourself to try and find the perfect replacement for you!
Product Info for U.S. Optics B-10 1.8-10x40 mm Rifle Scope, Digital Red FFP Horus H425 Reticle, 90 Click EREK Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-10 H425
The U.S. Optics B-10 1.8-10x40 mm Rifle Scope, Digital Red FFP Horus H425 Reticle, 90 Click EREK Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-10 H425 Objective Lens Diameter: 40 mm, Magnification: 1.8 - 10 x, Reticle: Illuminated B-10 HORUS H425, Tube Diameter: 34 mm, Reticle Focal Plane: First Focal Plane (FFP), Exit Pupil: 2 mm, Illumination Color: Red, Finish: Matte, Field of View, Linear: 11.3 - 36 ft at 100 yds, Eye Relief: 3.25 in, Diopter Adjustment Range: 2 - -3 dpt, Color: Black, Weight: 29.3 oz, Adjustment Click Value: 0.1 Mil Rad, Length: 12.98 in, Adjustment Type: Mil Rad, Parallax: 30 yds to infinity, Illumination Type: LED, Battery Type: CR2032, Fabric/Material: Aluminum 6061, Adjustment Range: 1.8 - 10 in, Height: 2.43 in, Focus Range: 30 yds to infinity, Lens Material: Glass, Optical Coating: Fully Multi-Coated, Battery Life: 8000 hours, Weather Resistance: Rain Resistant, Battery Quantity: 1, Package Type: Box, Included Accessories: U.S. Optics neoprene Scope Slicker, Magnification Type: Variable, W/E Travel at 100 Yds: 108 MOA, Gun Type: Rifle. is here at OpticsPlanet with great prices and discounts ! Please also check out more options for U.S. Optics B-10 1.8-10x42mm Rifle Scope.
Purchase your new U.S. Optics B-10 1.8-10x40 mm Rifle Scope, Digital Red FFP Horus H425 Reticle, 90 Click EREK Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-10 H425 from OpticsPlanet today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The U.S. Optics B-10, 1.8-10x42 rifle scope is one of the most feature-packed medium-range optics currently available on the market. The B-10 comes standard with a single button illumination control that is integrated into the parallax knob, tool-less elevation zeroing with a revolution indicator, an EK2 Stop, a locking windage turret, and a locking elevation turret. You have the choice of the MIL-Scale GAP, Horus H425, or the MOA Scale Type 1 reticle. Our reticle selection is built to cater to all shooters whether you are military, law enforcement, competitor or hunter, youll find something that fits you. The Horus Vision H425 is designed for ease of use to meet the needs of the hunter and marksman alike. As part of the B-10 rifle scope, the H425 reticle includes an inverted L range finder in the lower left quadrant that is calibrated in Shooters Minute of Angle (SMOA) or Inch Per Hundred Yards (IPHY) for quick and precise calculation of range and distances. The H425 grid has 8 horizontal stadia lines which represent 8 MILs of adjustment hold. The grid lines allow the shooter to correct for elevation and windage without turning knobs or counting clicks. The smaller, secondary horizontal lines allow for precise elevation holds with standard spacing between each line set at 1 MIL to compensate for wind, drift, speed of target, etc.
Features/Specifications:
Magnification: 1.8-10x
Exit Pupil Diameter: 3.2mm
Diopter: +2 to -3
Parallax Adjustment: 30yds to
Field of View @ 1.8x: 36 @ 100 yards
Field of View @ 10x: 11.3 @ 100 yards
Eye Relief: 3.2 / 8.12cm
Objective Lens Housing Diameter: 2 / 50.80mm
Tube Diameter: 1.33 / 34mm
Overall Length: 12.98 / 329.6 mm
Objective Lens Diameter: 1.65 / 42mm
Ocular Lens Diameter: 1.40 / 35mm
Weight: 27.2oz / 0.77kg
Illumination: Red
Battery: Lithium Coin, CR2032
Battery Runtime: Up to 500 Hours
Material: Aluminum, 6061-T6
Finish Color: Matte Black
Elevation Knob: 1/10 MIL EREK 2
Elevation Travel: 28 MILS
Windage Knob: US#5, 1/10 MIL
Windage Adjustment Range: 14L / 14R
Reticle: Horus H425, First Focal Plane
20 MOA Down
Included Accessories:
U.S. Optics neoprene Scope Slicker
Features of U.S. Optics B-10 1.8-10x42mm Rifle Scope:
- Locking elevation and windage knobs
- Zero stop
- Revolution counter
- Tool-less elevation zero
- Single button illumination control
Package Contents:
- U.S. Optics B-10 1.8-10x42mm Rifle Scope, XP-RS-UOB10R
- Scope slicker
- Sticker
- Allen Key
- Top lock tool
- Manual
