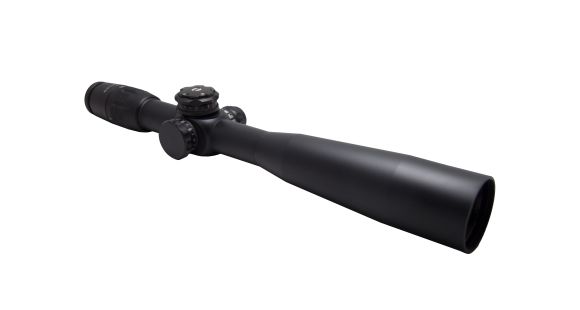

U.S. Optics B-25 5-25x52mm Rifle Scope, Digital Red FFP Horus H102 Reticle,100 Click Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-25 H102
Tap Tap to Zoom
Product Discontinued by Manufacturer
U.S. Optics B-25 5-25x52mm Rifle Scope, Digital Red FFP Horus H102 Reticle,100 Click Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-25 H102 has been discontinued by U.S. Optics and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes, Rifle Scopes & Accessories yourself to try and find the perfect replacement for you!
Product Info for U.S. Optics B-25 5-25x52mm Rifle Scope, Digital Red FFP Horus H102 Reticle,100 Click Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-25 H102
The U.S. Optics B-25 5-25x52mm Rifle Scope, Digital Red FFP Horus H102 Reticle,100 Click Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-25 H102 Objective Lens Diameter: 52 mm, Magnification: 5 - 25 x, Reticle: Illuminated B-25 HORUS H102, Tube Diameter: 34 mm, Reticle Focal Plane: First Focal Plane (FFP), Exit Pupil: 2 mm, Illumination Color: Red, Finish: Matte, Field of View, Linear: 5.25 - 16.08 ft at 100 yds, Field of View, Angle: 16.08 - 5.25 degrees, Eye Relief: 3.5 in, Diopter Adjustment Range: 2 - -3 dpt, Color: Black, Weight: 35.9 oz, Adjustment Click Value: 0.1 Mil Rad, Length: 17.93 in, Adjustment Type: Mil Rad, Parallax: 25 yds to infinity, Illumination Type: LED, Battery Type: CR2032, Fabric/Material: Aluminum 6061-T6, Adjustment Range: 5 - 25 in, Height: 2.43 in, Focus Range: 75 yds to infinity, Lens Material: Glass, Optical Coating: Fully Multi-Coated, Battery Life: 8000 hours, Weather Resistance: Rain Resistant, Battery Quantity: 1, Package Type: Box, Included Accessories: U.S. Optics neoprene Scope Slicker, Magnification Type: Variable, W/E Travel at 100 Yds: 79.2 MOA, Gun Type: Rifle. is here at OpticsPlanet with competitive prices ! Please also check out more options for U.S. Optics B-25 5-25x52mm Rifle Scope.
Purchase your new U.S. Optics B-25 5-25x52mm Rifle Scope, Digital Red FFP Horus H102 Reticle,100 Click Elevation Knob and US#5 Windage Knob with 1/10 MIL Adjustment, Matte Black, B-25 H102 from OpticsPlanet today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The U.S. Optics B-25 5-25x52 rifle scope is one of the most feature packed long range optics available on the market. The B-25 comes standard with a single button illumination control that is integrated into the parallax knob, tool-less elevation zeroing with a revolution indicator, an EK2 Stop, a locking windage turret, and a locking elevation turret. We offer a wide range of reticles including; MIL Scale GAP, GENIIXR, MPR, MDMOA, IGR, MGR, PR2, Horus Vision H37, Horus Vision H59, Horus Vision H102, and the Horus Vision Tremor3 reticle. Regardless of your platform and shooting situation, we have the reticle for you. The Horus Vision H102 in the B-25 was designed for the entry-level rifleman, designated marksman or sniper. Features include, but are not limited to, targeting ovals, leads for moving targets and a rangefinder. The grid pattern represents a total of 27 MILs of adjustment below the horizontal axis, 30.5 MILs of adjustment above the horizontal axis, and 30.5 MILs of adjustment to the left and right of the vertical axis. The H102 also allows for wind correction as well as leading targets moving up to 60 miles per hour.
Features/Specifications:
Magnification: 5-25x
Exit Pupil Diameter: 2 mm
Diopter: +2 to -3
Parallax Adjustment: 75yds to
Field of View @ 5x: 16.08 @ 100 yards
Field of View @ 25x: 5.25 @ 100 yards
Eye Relief: 3.2 /8.12 cm
Objective Lens Housing Diameter: 2.38 / 60.48mm
Tube Diameter: 1.33 / 34mm
Overall Length: 17.93 /455.42mm
Objective Lens Diameter: 2.04 / 52mm
Ocular Lens Diameter: 1.40 / 35mm
Weight: 34.9oz /0.99kg
Reticle Illumination: Red
Battery: Lithium Coin, CR2032
Battery Runtime: Up to 500 Hours
Material: Aluminum, 6061-T6
Finish Color: Matte Black
Elevation Knob: 1/10 MIL EREK 2
Elevation Travel: 22 MILS
Windage Knob: US#5, 1/10 MIL
Windage Adjustment Range: 10L / 10R
Reticle: Horus H102, First Focal Plane
30 MOA Down
Included Accessories:
U.S. Optics neoprene Scope Slicker
US Optics B-25 Digital 5-25x52mm Rifle Scope, XP-RS-UOB25R
- 52 mm Objective Lens Diameter
- Recommended Butler Creek Flip-up Covers
- 34 mm tube
- Locking elevation and windage knobs
- Single button reticle illumination
Package Contents:
- U.S. Optics B-25 5-25x52mm Rifle Scope, XP-RS-UOB25R
