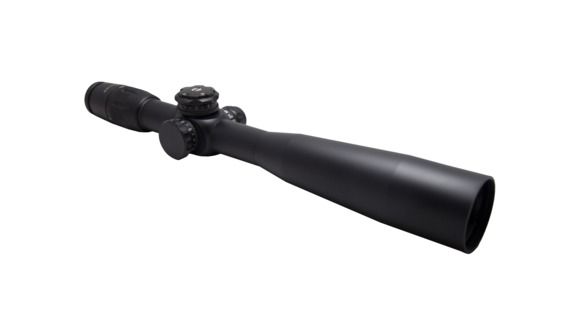

U.S. Optics 5-25x52mm Rifle Scope, w/Illuminated B-25 MDMOA Reticle, Matte Black, Medium, B-25 MDMOA
Tap Tap to Zoom
Product Discontinued by Manufacturer
U.S. Optics 5-25x52mm Rifle Scope, w/Illuminated B-25 MDMOA Reticle, Matte Black, Medium, B-25 MDMOA has been discontinued by U.S. Optics and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Rifle Scopes, Rifle Scopes & Accessories yourself to try and find the perfect replacement for you!
Product Info for U.S. Optics 5-25x52mm Rifle Scope, w/Illuminated B-25 MDMOA Reticle, Matte Black, Medium, B-25 MDMOA
The U.S. Optics 5-25x52mm Rifle Scope, w/Illuminated B-25 MDMOA Reticle, Matte Black, Medium, B-25 MDMOA Objective Lens Diameter: 52 mm, Magnification: 5 - 25 x, Reticle: Illuminated B-25 MDMOA, Tube Diameter: 34 mm, Reticle Focal Plane: First Focal Plane (FFP), Exit Pupil: 2 mm, Illumination Color: Red, Finish: Matte, Field of View, Linear: 5.25 - 16.08 ft at 100 yds, Field of View, Angle: 16.08 - 5.25 degrees, Eye Relief: 3.5 in, Diopter Adjustment Range: 2 - -3 dpt, Color: Black, Weight: 35.9 oz, Adjustment Click Value: 0.25 in at 100 yds, Length: 17.93 in, Adjustment Type: MOA, Parallax: 25 yds to infinity, Illumination Type: LED, Battery Type: CR2032, Fabric/Material: Aluminum 6061-T6, Adjustment Range: 5 - 25 in, Height: 2.43 in, Focus Range: 75 yds to infinity, Lens Material: Glass, Optical Coating: Fully Multi-Coated, Battery Life: 500 hours, Weather Resistance: Rain Resistant, Battery Quantity: 1, Package Type: Box, Included Accessories: U.S. Optics neoprene Scope Slicker, Magnification Type: Variable, W/E Travel at 100 Yds: 79.2 MOA, Gun Type: Rifle. is here at OpticsPlanet with unbelievable prices ! Please also check out more options for U.S. Optics B-25 5-25x52mm Rifle Scope.
Purchase your new U.S. Optics 5-25x52mm Rifle Scope, w/Illuminated B-25 MDMOA Reticle, Matte Black, Medium, B-25 MDMOA from OpticsPlanet today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.
The U.S. Optics B-25 5-25x52 rifle scope is one of the most feature packed long range optics available on the market. The B-25 comes standard with a single button illumination control that is integrated into the parallax knob, tool-less elevation zeroing with a revolution indicator, an EK2 Stop, a locking windage turret, and a locking elevation turret. We offer a wide range of reticles including; MIL Scale GAP, GENIIXR, MPR, MDMOA, IGR, MGR, PR2, Horus Vision H37, Horus Vision H59, Horus Vision H102, and the Horus Vision Tremor3 reticle. Regardless of your platform and shooting situation, we have the reticle for you. The MDMOA Reticle in the B-25 is based on the standard Shooters Minute of Angle, also known as Inch Per Hundred Yards (IPHY). The reticle provides 40 MOA of adjustment below the horizontal axis, 20 MOA of adjustment above the horizontal axis, and 30 MOA to the left and right of the vertical axis. 1 MOA increments are used on all four axes for the finer ranging capability. Dots located on each 10 MOA marks, the center of the crosshair (4 MOA total), and the heavy duplex lines are illuminated red.
Features/Specifications:
Magnification: 5-25x
Exit Pupil Diameter: 2 mm
Diopter: +2 to -3
Parallax Adjustment: 75yds to
Field of View @ 5x: 16.08 @ 100 yards
Field of View @ 25x: 5.25 @ 100 yards
Eye Relief: 3.2 /8.12 cm
Objective Lens Housing Diameter: 2.38 / 60.48mm
Tube Diameter: 1.33 / 34mm
Overall Length: 17.93 /455.42mm
Objective Lens Diameter: 2.04 / 52mm
Ocular Lens Diameter: 1.40 / 35mm
Weight: 34.9oz /0.99kg
Reticle Illumination: Red
Battery: Lithium Coin, CR2032
Battery Runtime: Up to 500 Hours
Material: Aluminum, 6061-T6
Finish Color: Matte Black
Elevation Knob: IPHY EREK 2
Elevation Travel: 79.2 IPHY
Windage Knob: US#5, IPHY
Windage Adjustment Range: 36L / 36R
Reticle: MDMOA, First Focal Plane
30 MOA Down
Included Accessories:
U.S. Optics neoprene Scope Slicker
US Optics B-25 Digital 5-25x52mm Rifle Scope, XP-RS-UOB25R
- 52 mm Objective Lens Diameter
- Recommended Butler Creek Flip-up Covers
- 34 mm tube
- Locking elevation and windage knobs
- Single button reticle illumination
Package Contents:
- U.S. Optics B-25 5-25x52mm Rifle Scope, XP-RS-UOB25R
