Vixen Sphinx SXP Equatorial Mount & Star Book Ten Hand Controller has been discontinued by Vixen and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Telescope Accessories yourself to try and find the perfect replacement for you!
Product Info for Vixen Sphinx SXP Equatorial Mount & Star Book Ten Hand Controller

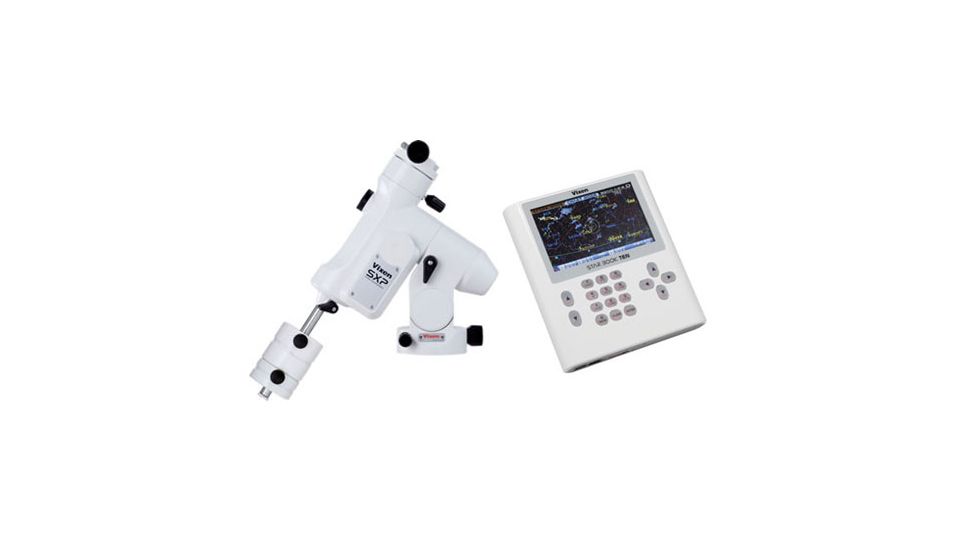

The Vixen Sphinx SXP Equatorial Mount w/ STAR BOOK TEN Controller is a top-flight telescope mount that draws on the innovations and experience gained through decades of designing German Equatorial Mounts. The Vixen Sphinx SXP Telescope Mount comes standard with the STAR BOOK TEN, a new generation of hand held controllers featuring a high definition LCD screen and the technology to show you the sky before your telescope takes you there. The controller includes periodic error correction and saves the data you input for your next observing session. The Vixen SPHINX SXP Mount combines with the included STAR BOOK TEN hand controller to bring you top-of-the-line portable GoTo technology.
The Vixen Sphinx SXP Mount features pulse motors designed to react smoothly and accurately. The micro slow motion control assures you of smooth operation. The R.A. and DEC wheels have 180 teeth. They are high precision machined wheels and worm gears made of brass for the most accurate tracking possible. The R.A. and DEC shafts are comprised of strong carbon steel. The rotational parts have 15 bearings. All this to provides smooth tracking and slewing. The unique mount design of the Sphinx SXP Mount is designed so that the mount body acts as part of the counterweight system. The Sphinx SXP Mount include a built in 6x20 polar axis scope. It features a bubble level, illuminated reticle, and setting accuracy within 3 minutes.
Specifications for Vixen Sphinx SXP Equatorial Mount (Item #25051):
| R.A. Slow Motion Axis: | 180-tooth wheel gears whole circle movement ; 72mm diameter; Material |
| DEC Slow Motion Axis: | 180-tooth wheel gears whole circle movement ; 72mm diameter; Material |
| Worm Gears: | 9mm Diameter; Material |
| R.A. Axis: | 40mm Diameter; Material |
| DEC Axis: | 40mm Diameter; Material |
| Bearings: | 15 Bearings |
| Counterweight Bar: | 20mm Diameter; Retractable |
| Altitude Adjustment: | 0° to 70°; (Fine Adjustment with Tangent screw |
| Azimuth Adjustment: | Double screw Fine Adjustment |
| Drive Motor: | Stepping (Pulse) Motor with 300pps |
| Telescope Controller: | STAR BOOK TEN |
| Power Consumption: | DC 12 volts, 0/45~2.2A, 0.6~2.5A(Maximum) |
| Controller: | STAR BOOK Hand Controller ; D-Sub9 pin Male Plug |
| Maximum Loading Weight: | 16kg/35 lbs + Counterweights |
| Counterweight: | 1.9 kg/ 4.2 lbs ; 3.7kg/8 lbs |
| Dimensions: | 13.5 x 14 x5 inches |
| Weight: | 11 kg/ 24.25 lbs (without counterweight) |
Features of Vixen Sphinx SXP Telescope Mount:
- Time Graduation Circle: 10 Minute Increments
- Date Graduation Circle: 2 Day Increments
- Meridian Offset Circle: Adjustable between E20° and W20° in 5° increments
- Northern Hemisphere: Polaris pattern with reticle (Applicable to yar 2025)
- Southern Hemisphere: Octantal 4 stars pattern with reticle
- Polar axis scope
- Unique mount design
- Perodic error correction
- Pulse motors
Package Contents:
- Vixen Sphinx SXP Equatorial Scope Mount
