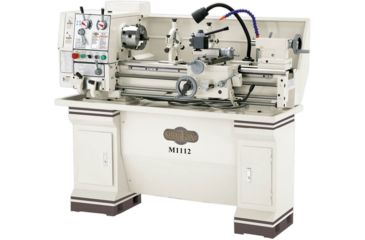

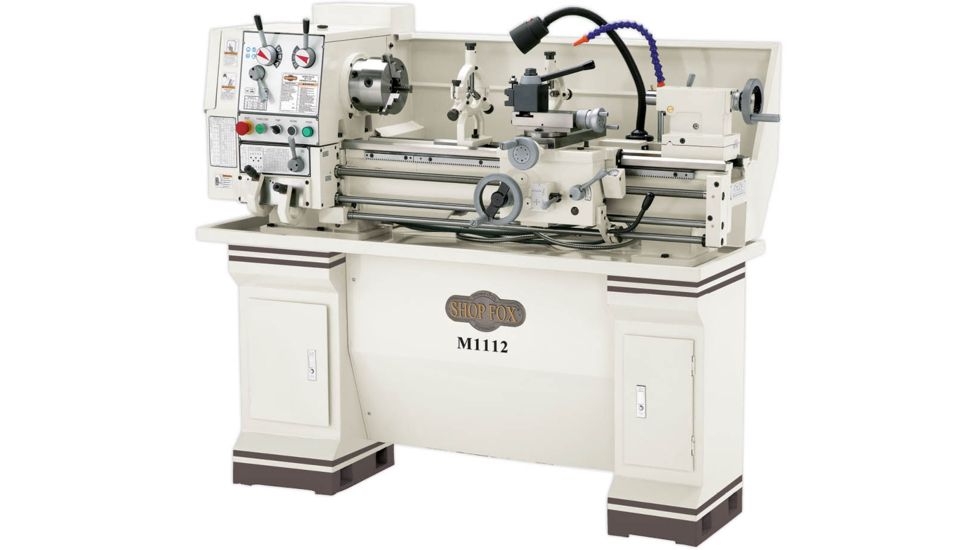

Shop Fox Gunsmith Lathe with Stand M1112

Tackle any gunsmithing task with precision, power and ease when using this Shop Fox Gunsmith Lathe with Stand. Shop Fox built these Hand Tools with a heavy-duty, vibration-dampening steel stand, a hardened-and-ground cast-iron bed and several other sturdy components that will help you with any job at hand. This Shop Fox Gunsmith Lathe Machine with Stand features simple lever controls for ease-of-use, providing you with advanced functioning that you can master in no time. Upgrade your experience in the workshop by using this Shop Fox M1112 Gunsmith Lathe w/ Stand.

Features of Shop Fox Gunsmith Lathe with Stand:

• Motor: 2 HP, 220V, single-phase, 1725 RPM
• Swing over bed: 12in
• Distance between centers: 36in
• Swing over gap: 17in
• Swing over cross slide: 7in
• Swing over saddle: 11-11/32in
• Cross slide travel: 6-1/4in
• Compound travel: 3-1/4in
• Carriage travel: 24in
• Spindle speeds: 9 @ 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM
• Spindle bore: 1.57in
• Spindle nose: D1-5 camlock
• Spindle taper: MT#5
• Spindle length with 3-jaw chuck: 21-3/4in
• Spindle length with 4-jaw chuck: 21-1/4in
• Spindle length with faceplate: 18-1/2in
• Bed width: 7-1/4in
• Tailstock barrel taper: MT#3
• Tailstock barrel travel: 4in
• Leadscrew: 8 TPI
• Longitudinal feed range: 40 @ 0.0011in-0.0310in
• Cross feed range: 40 @ 0.0004in-0.0105 in./rev.
• Thread range (inch): 40 @ 4-112 TPI
• Thread range (metric): 29 @ 0.2-4.5 mm
• Max. tool size: 5/8in
• Removable gap bed allows turnings up to 17in in diameter

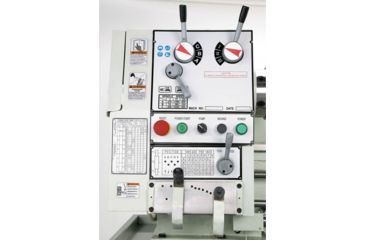

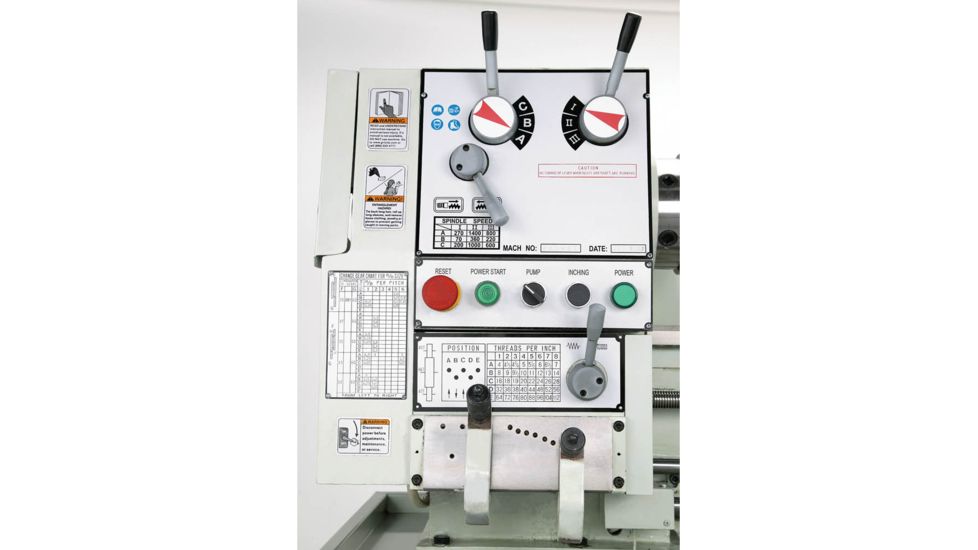

• Easy-to-use lever controls
• Hardened-and-ground cast-iron bed
• Full length splash guard
• ON/OFF reverse switch on carriage
• LED work light
• Ball bearing steady/follow rests

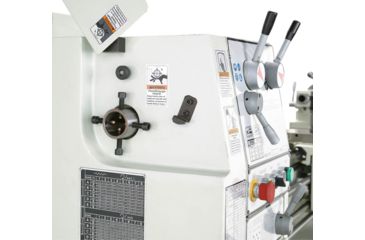

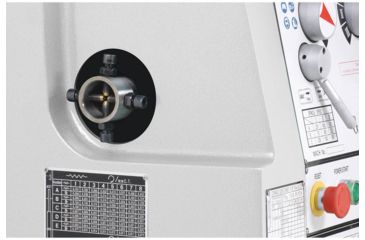

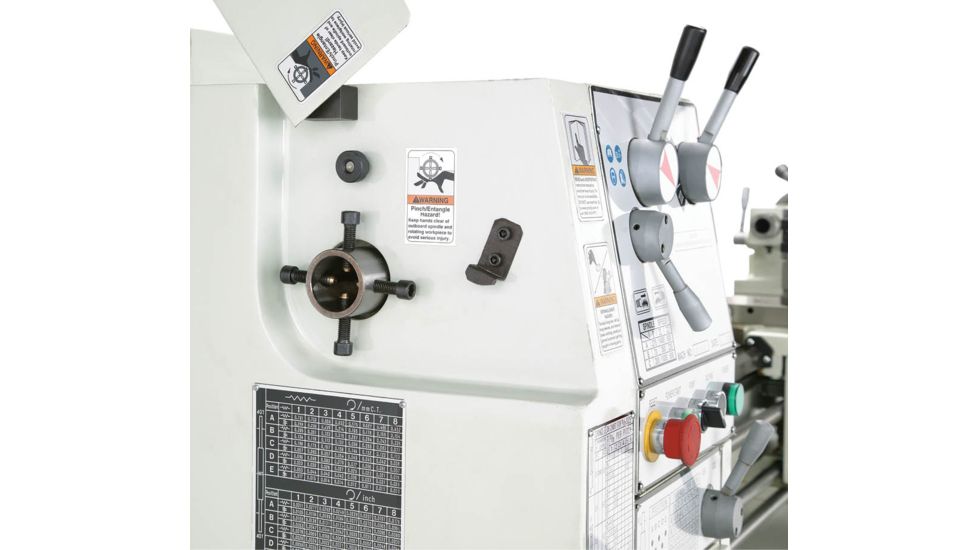

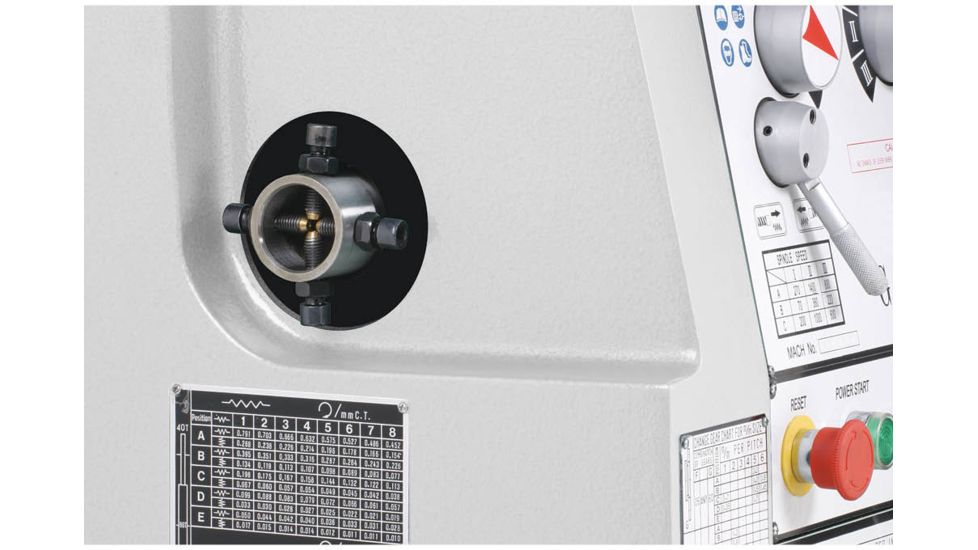

• Outboard end support screws
• Socket for tailstock lock
• Cast-iron stand with storage shelves

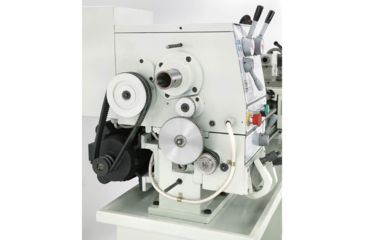

• Cast-aluminum gear cover

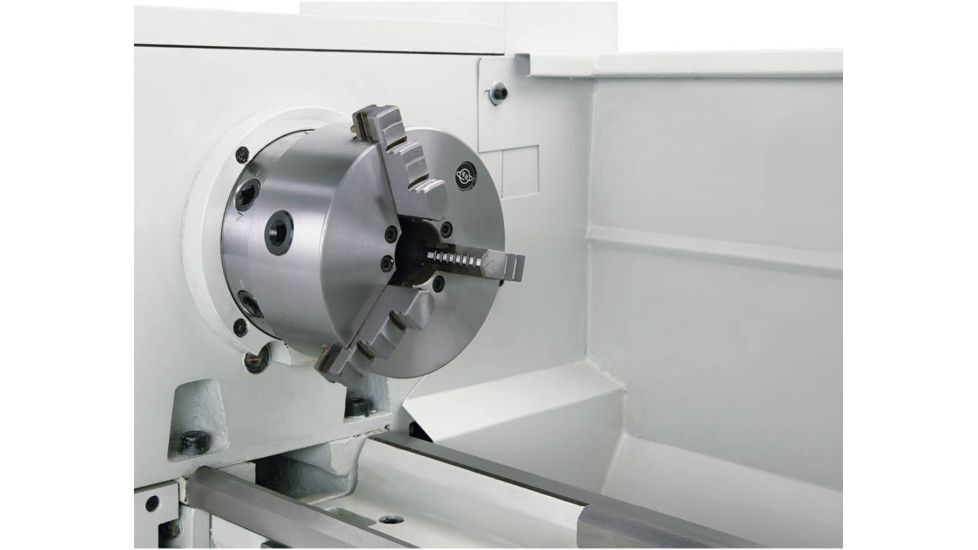

• 6in 3-Jaw chuck with 2-piece reversible jaws

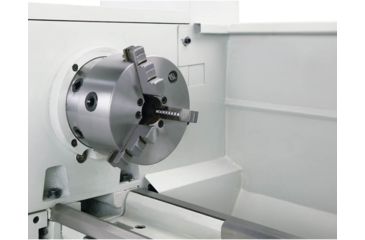

• 8in 4-Jaw chuck with reversible jaws
• 10in faceplate
• Tool box

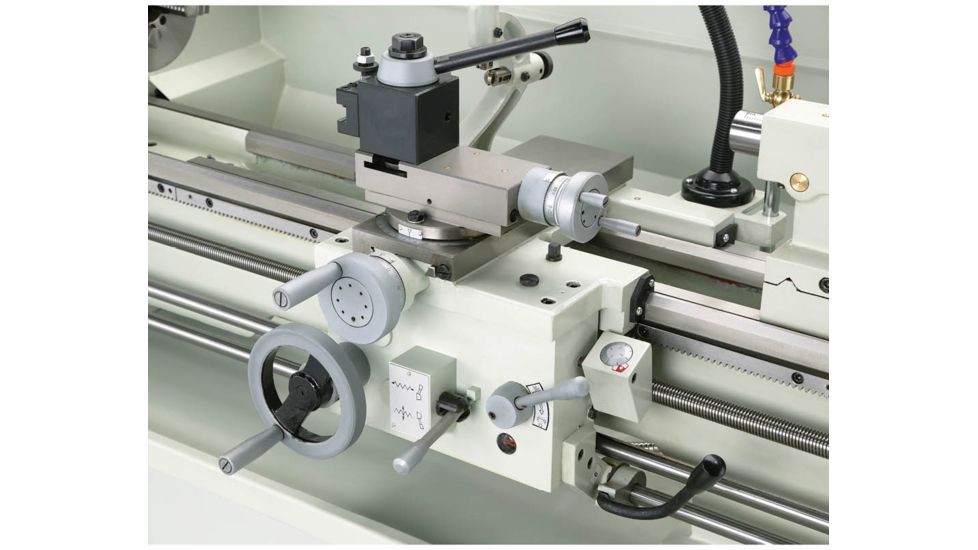

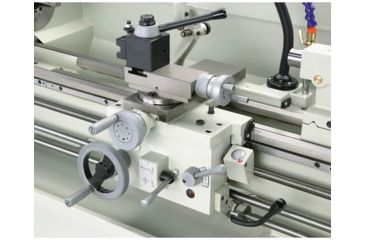

• Quick-change tool post with one tool holder
• One MT#3 live center
• Two MT#3 dead centers (one carbide-tipped)

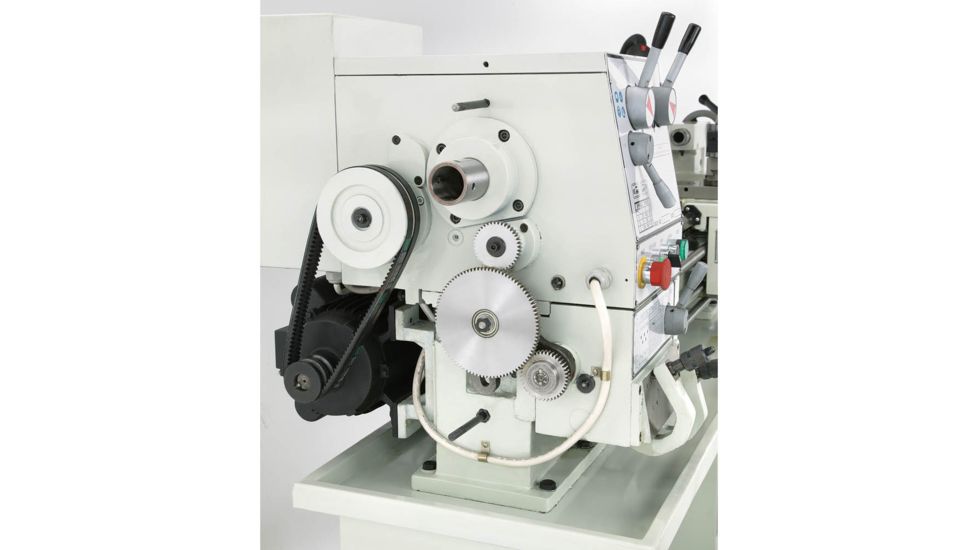

• Set of six change gears
• 1/2in drill chuck with MT#3 arbor
• Overall size: 61in L x 26in W x 54-1/2in H
• Approximate shipping weight: 1251 lbs.

Package Contents:

• Shop Fox Gunsmith Lathe with Stand
