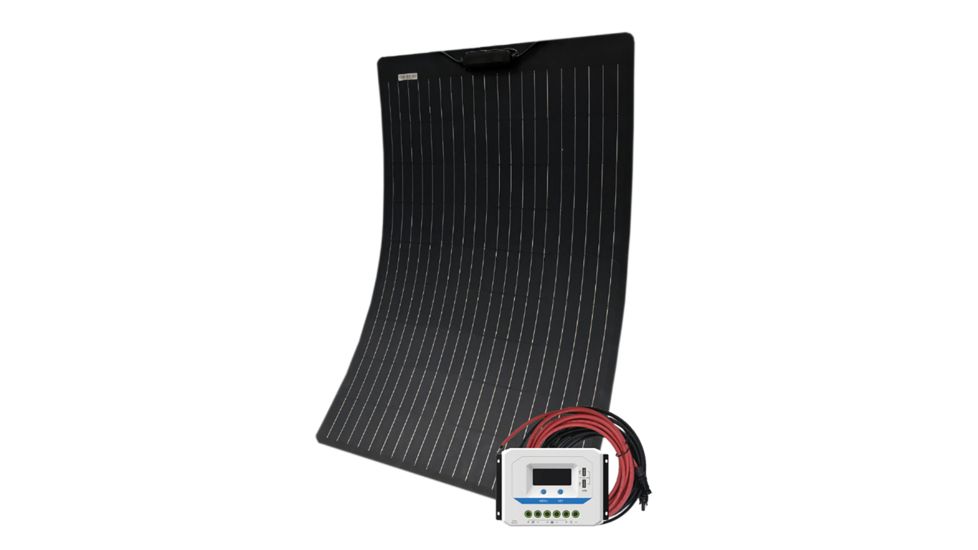

Xantrex 110W Solar Flex Kit 781-0100-01

The Roof Mounted Kits include all hardware, including battery cables and built-in fuses for fast and worry free installation. No need to source additional fuses or use butt splice and heat shrink to seal connection to battery cables. All kits include a 100W or 160W solar panel, 30A PWM charge controller, PV and battery cables, and mounting hardware.

Features/Specifications:

100W flex solar charging kit, Includes 30A PWM charge controller, PV and battery cables, and mounting hardware, Compatible with Xantrex's true sine wave FREEDOM XC and FREEDOM SW Inverters/Chargers, Fast, worry free installation

Features of Xantrex 110W Solar Flex Kit

• Up to 30 degrees of flexibility
• PERC technology
• 5 busbar technology
• ETFE Protection
• 2 year product warranty
• Competitor panels do not currently use PERC technology
• Most brands use 2-4 busbars more busbars means better efficiency & durability
• Ethylene-Tetra-Fluoro-Ethylene - extends the lifespan of the panel compared to non-ETFE panels
• Solar Panel - A 110W solar panel with 5 busbars and PERC (Passivated Emitter and Rear Contact) mono-crystalline cells a special cell technology that increases module efficiency significantly over standard solar cells.
• Charge Controller - A 30A Pulse-Width Modulation (PWM) flush-mounted charge controller is provided to charge and protect your batteries. Featuring an LCD screen multi-stage battery charging charging protections two USB ports and real-time system indicators.
• PV and Battery Cables - Weather resistant and certified cables are provided to connect the solar panel to the charge controller and from the charge controller to the battery. The PV cables and battery cables with a built-in fuse and ring terminals built-in ferrule terminations for quick connections to the charge controller.
• Mounting Hardware - Cable clamps and tie wraps are included.

Package Contents:

• Xantrex 110W Solar Flex Kit
