Color: Black

Code: 35U-PR1-CWR6214-809-0918

MPN: 809-0918

UPC: 715535899127

List: $573.04Save 18%
$469.99

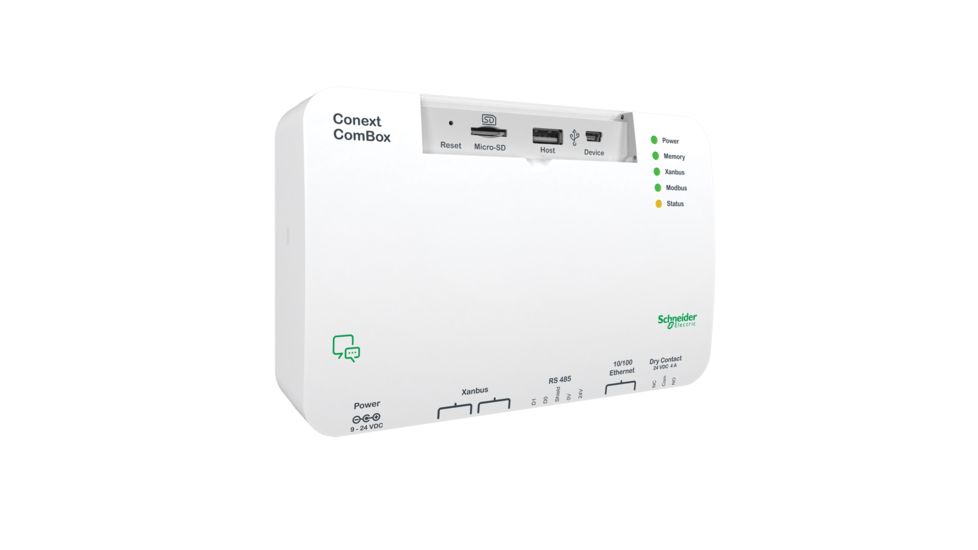

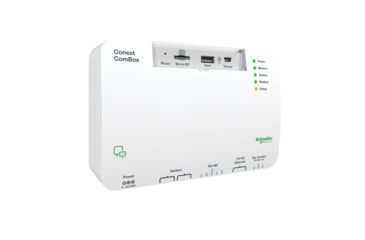

Product Info for Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers

Conext Combox Communication Box f/Freedom SW Series Inverters/Chargersimage

The Conext ComBox Freedom SW provides an overall view of system performance for mobile power monitoring systems such as RV Marine vessels construction and other heavy duty applications. The ComBox Freedom SW lets you configure the system and devices monitor performance and access data logs through a web based application on a laptop or Android tablet app. An easy to read icon based display screen (tablet not included) shows graphical representation of energy flow between utility power generator power Freedom SW Inverter/ Charger RV house battery system and AC loads.

The ComBox FSW module connects to your Freedom SW via Xanbus cables and optionally to an external wireless router providing wireless access to the ComBox FSW app on your Android tablet or laptop near your RV.

User Level Access:

Control Inverter - enable/ disable

Control Generator - off/ on/ auto

Real-time clock - when set keeps time for the entire system

Shore breaker size (selectable range 5-50A)

Provides a more comprehensive and user friendly interface as an alternative to the SCP system control panel

Data logging Battery charge (Watt-hours)

Load consumption (Wh)

Utility grid input (Wh)

Generator input (Wh)

Admin Level Access:

Setup - Advanced access for installers and technician support

Hardware

WARNING: California`s Proposition 65

Specifications for Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers:

Manufacturer: Xantrex
Color: Black

Features of Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers

  • Powered by Xanbus network (Freedom SW Inverter/ Charger or supplied AC/ DC adapter)
  • Accepts USB thumb drive & micro SD card that provides additional data storage
  • Compact light weight easy to install
  • Non-volatile memory - preserves the latest Conext ComBox settings if power is interrupted or network communication is disrupted
  • Firmware storage and upgrade capability - upgrade firmware for Xanbus-enabled devices on the network
  • ComBox FSW is compatible with Freedom SW Inverter/Charger SCP (system control panel) & AGS (automatic generator start)

Package Contents:

  • Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers

Xantrex Conext Combox Communication Box f/Freedom SW Series Inverters/Chargers Orderable Models

List of Orderable Models

  • Xantrex Combox Communication Box f/Freedom SW Series Inverters/Chargers Conext, 809-0918 , MPN: 809-0918 , UPC: 715535899127 , Code: 35U-PR1-CWR6214-809-0918
