Select a Model
DEMO, Armasight AIM PRO - Advance Integrated Mount Pro, Black
$409.99 $503.00 Save 18%
Included Accessories: Armasight AIM PRO - Advance Integrated Mount Pro, Black ANKI000032
Code: 0A-NA-ANKI000032-DEMO
UPC: 00032-DEMO
Armasight AIM PRO - Advance Integrated Mount Pro, Black ANKI000032
Model: Armasight AIM PRO - Advance Integrated Mount Pro, Black ANKI000032
Code: 0A-NA-ANKI000032
MPN: ANKI000032
UPC: 818470016427
Click to select this item for your bundle offer!
Buy Together & Save Even More!

A great way to save even more money is to purchase complementary products at the same time that you shop for what you want!

In many cases you'll be offered two additional items that you can add to your order and save, but feel free to only pick one if you want - you'll still save

As low as $59899 You Save 13%

Buy now, pay later! Now when you check out at OpticsPlanet with PayPal, you can apply for PayPal's 6 month no payments, no interest option through PayPal Credit. PayPal Credit available in USA only and orders must be over $99 to qualify. Click here to learn more.

Armasight AIM PRO Advance Integrated Mount for 1x Night Vision Monoculars Product Info

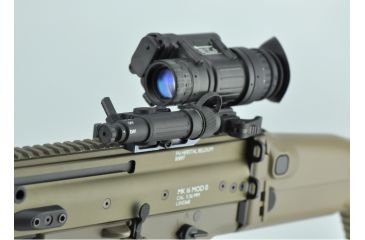

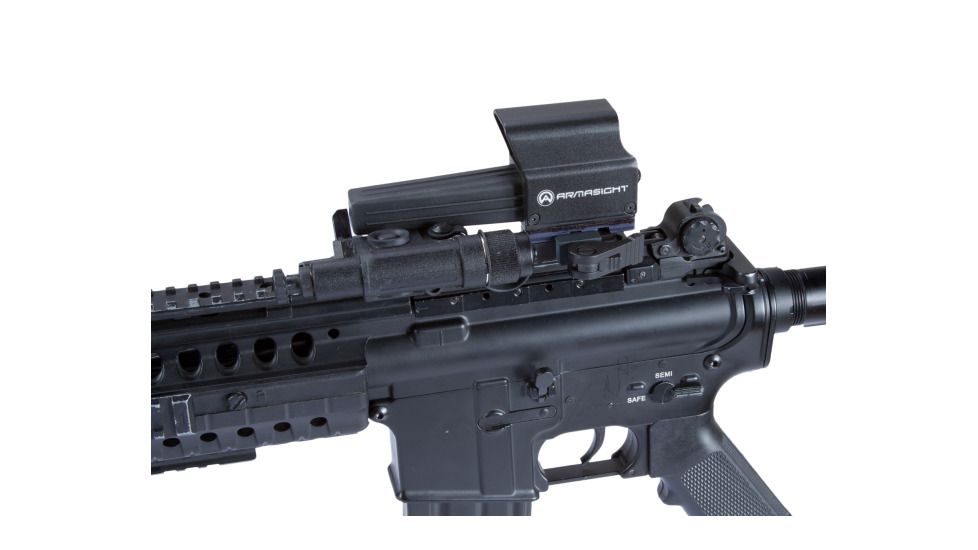

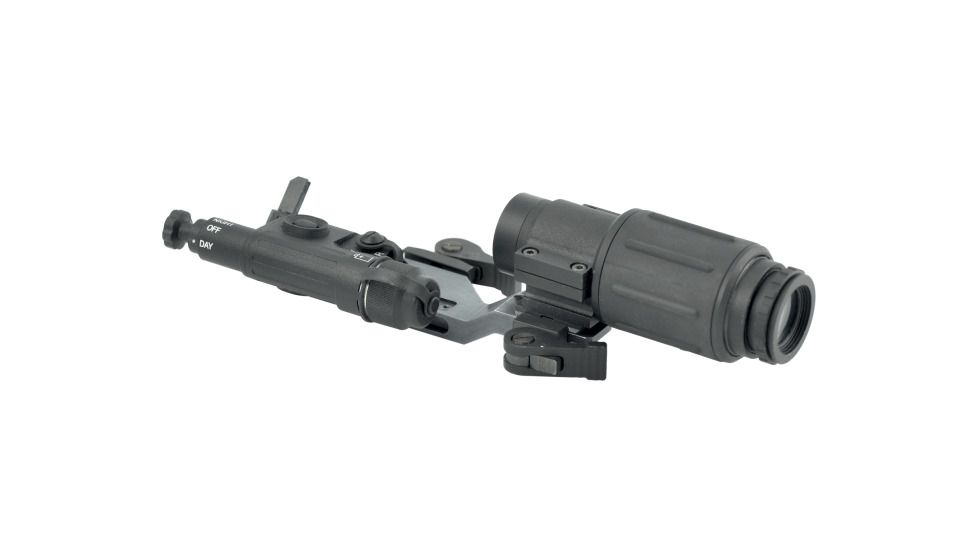

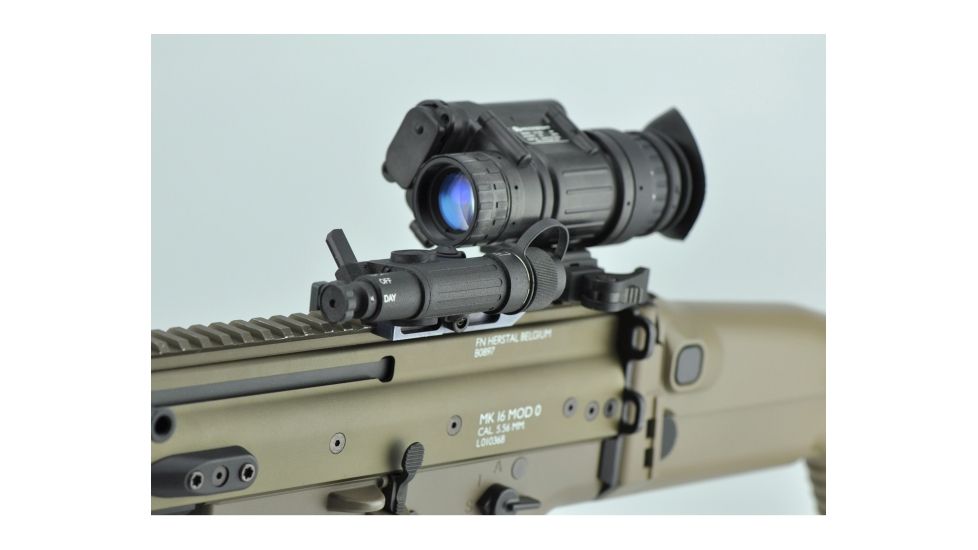

The Armasight AIM PRO Advance Integrated Mount ANKI000032 lets you mount a standard 1x night vision monocular to your firearm, converting the NV device into a night vision rifle scope. Made to work with 1x magnification power Armasight NV scopes, this Night Vision Mount from Armasight presents a revolutionary new concept of night vision targeting. The Armasight Aim Pro Advanced Integrated Night Vision Mount allows the operator to convert his night vision monocular into a weapon sight. The Arma-Sight AIM Pro is incorporated into a low-profile housing that has an integral MIL-STD-1913 Picatinny rail grabber mount on the underside and a dovetail mount on the top. By mounting AIM Pro onto your rifle and fitting it with either a night vision monocular or AIM Pro optional day optic, this Armasight Nv Mount can be bore-sighted to your rifle: the operator can switch between day and night modes as required without having to readjust. Unlike conventional systems that require the night vision unit to be mounted behind a day optic, the Armasight AIM Pro Integrated Advanced NV Riflescope Mount projects the reticle directly into the Night Vision monocular lens. In practice, what this means is that there is no longer a reduced field of view through the night vision device, or any shadowed area that is difficult to see through (caused by conventional red dot sights optics or outer edges). A small "HUD"-type prism on the front of the Armasight Night Vision Riflescope AIM Pro Mount projects a 65MOA "Circle" and single 3.2MOA center aiming "Dot" directly into the night vision lens. The AIM Pro is MIL-STD-810G-compliant device. The adaptability of the Armasight AIM Pro NV Rifle Scope Mount to virtually any night vision monocular inherently makes it a "critical need" item for all law enforcement and military professionals, hunters, and professional shooters.

Armasight ANKI000032-DEMO: AIM PRO - Advance Integrated Mount Pro, Black
Armasight ANKI000032: AIM PRO - Advance Integrated Mount Pro, Black

Specifications for Armasight Aim Pro Night Vision Scope Mount:

Circle with Dot reticle size: 65A±2
Adjustment Precision Range (deg. of arc): A±1.5
Reticle Illumination Adjustments: Digital
Levels of Reticle Brightness: 11
Battery Type: CR123A (3.0 V) Lithium; or Alkaline AA (1.5V)
Battery Life (hours): up to 2000 (CR123A)
Weapon Mount Type: Picatinny rail
Storage temperature (°С): - 50 to +50
Operating temperature (°С): - 40 to +50
MIL-STD-810G Compliant: yes
Immersion: till 1 m for 30 minutes
Overall Dimensions (mm): 169 x 87 x 42
Weight (g): 180

Features of Armasight AIM PRO NV Riflescope Mounting Kit - Picatinny:

  • Converts standard Night Vision monoculars into passive Night Vision weapon sight
  • Rapid and easy target acquisition
  • AIM eliminates the need for infrared laser or co-witnessed red dot sight
  • No obstructing optics or parts in your field of view
  • The only solution providing 100% full field of view
  • Digital reticle brightness adjustment
  • Optional Red Dot and 3.5X Day-time Aiming Solutions
  • Fits any MIL-STD-1913 Picatinny or Weaver rails with adjustable, locking, quick-detach mount

Package Contents:

  • Armasight Advance Integrated Mount Pro ANKI000032

Armasight AIM PRO Advance Integrated Mount for 1x Night Vision Monoculars Related Products

Armasight AIM PRO Advance Integrated Mount for 1x Night Vision Monoculars Comments

Customer Reviews
Helpful Positive Review AIM Pro handles recoil by Legacy Reviewer, May 7, 2013
I was between buying a night vision scope or AIM Pro and attach it to my nv monocular and get a converted scope. I was afraid it wouldn't handle recoil on my Ak-47 but it works fairly well. Using this AIM+monocular construction I get no reduced field...
1/2 found this helpful
Read 1 Review
