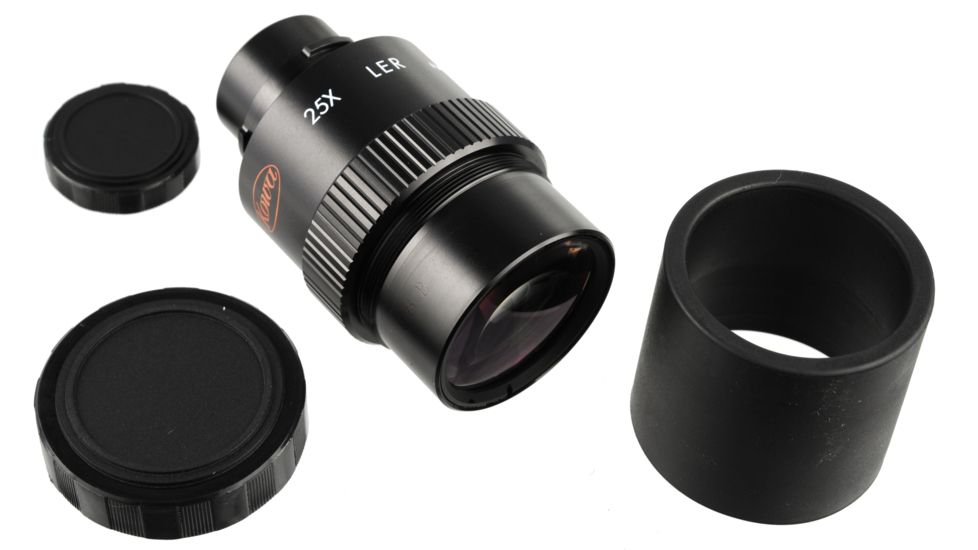

Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 25x Long Eye Relief Eyepiece
$240.00 $265.00 Save $25.00
Model: Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 25x Long Eye Relief Eyepiece
Code: KW-4S-Eyepiece-TE-17HD
MPN: TE-17HD
UPC: 879110001067

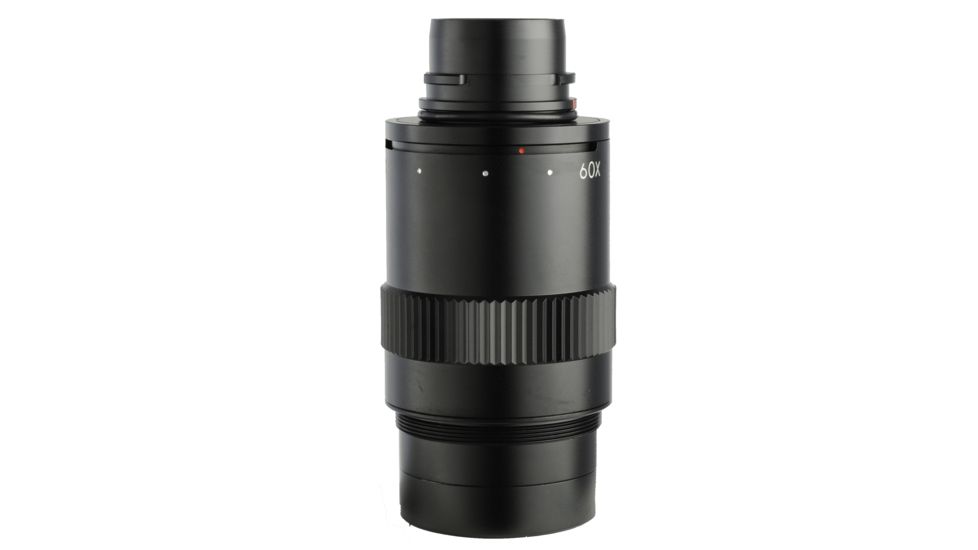

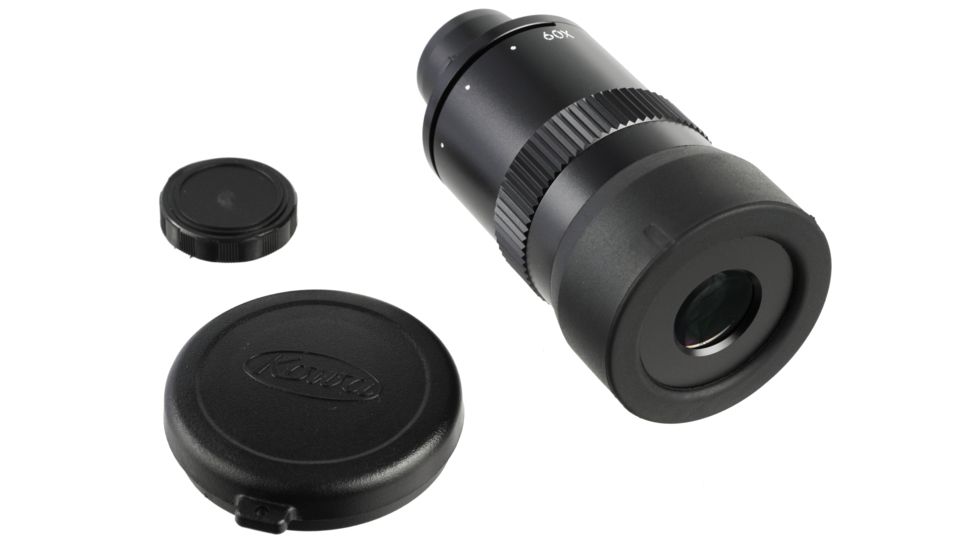

Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 20-60x Zoom Eyepiece
$385.00 $430.00 Save 10%
Model: Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 20-60x Zoom Eyepiece
Code: KW-4S-Eyepiece-TE-9Z
MPN: TE-9Z
UPC: 4987067391615

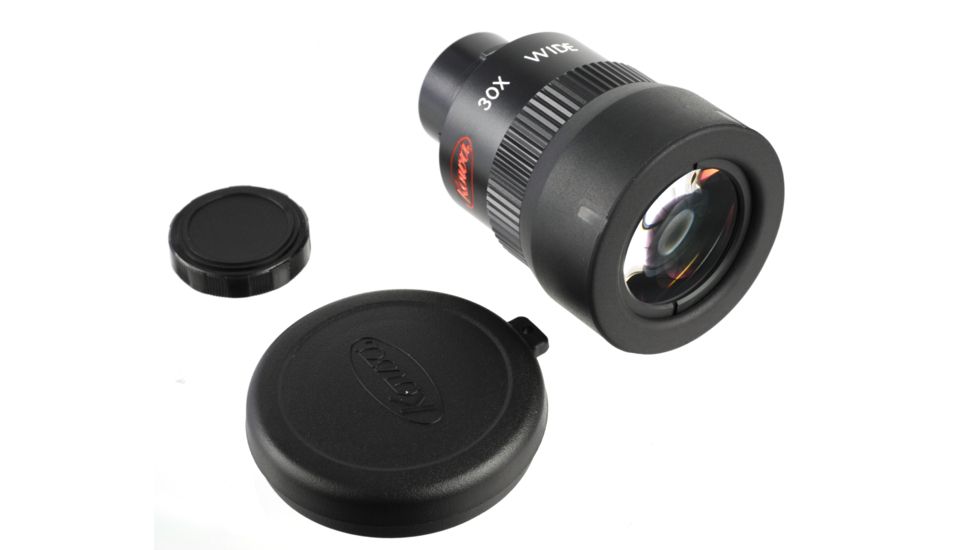

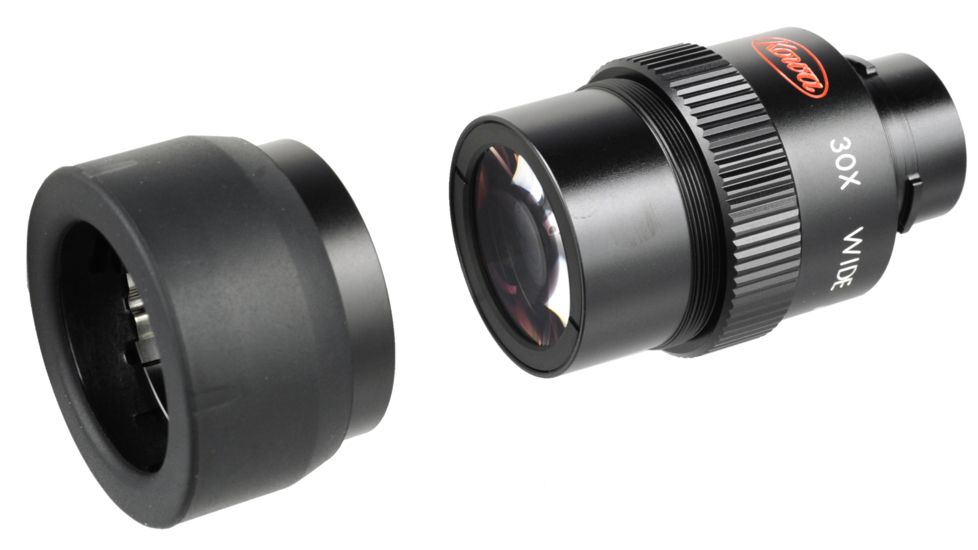

Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 30x Wide Angle Eyepiece
$275.99 $330.00 Save 16%
Model: Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes - 30x Wide Angle Eyepiece
Code: KW-4S-Eyepiece-TE-14WD
MPN: TE-14WD
UPC: 4987067390540

Kowa Interchangeable Eyepieces for Kowa 66mm / 60mm / 82SV Spotting Scopes Product Info

Kowa Eyepieces are made to mate seamlessly with Kowa Spotting Scopes. Compatible models include the TSN 600 Kowa 60mm Spotting Scopes and the TSN 660 Kowa 66mm Spotting Scopes, and Kowa 82mm TSN 82SV Scopes - any of imagethese can be coupled with any of the several Kowa Interchangeable Eyepieces offered here, to meet your specific needs. There are single magnification models and zooms, and some have apparent viewing angles (real viewing angle multiplied by the magnification factor) of >60°.

Kowa TSN-660 / TSN-600 Spotting Scopes Eyepieces:

  • TE-17HD: Kowa 25x LER Long Eye Relief Eyepiece
  • TE-14WD: Kowa 30x Wide Angle Eyepieces
  • TSE-9Z : Kowa 20-60x Zoom Eyepiece (shown)

Interchangeable Eyepieces for Kowa 66mm / 60mm High Performace Spotting Scopes can also be used with:

Note: does not fit older Kowa 821, 822, 823, 824 scopes.

Choose for your Kowa Spotting Scope one of the Kowa Interchangeable Eyepieces with a wide apparent field of view (greater than 60°) if you don't wear thick glasses and want to be "swimming in field". This will provide you with more real field for a given magnification than can ever be had from a zoom eyepiece, allowing easier subject tracking with the benefit of more observable detail thanks to the increase in magnification.

If you have to wear thick glasses, select a Kowa Spotting Scope Eyepiece with long eye relief. These have a profoundly-long distance between the rear element and the location which your pupil can be while still being able to observe the entire field of view. Naturally, this comes at the cost of less apparent field of view, but if you must wear glasses or sunglasses it is the most comfortable option for use.

Kowa TSE-Z9B 20-60x zoom for Kowa TSN-660 and TSN-600 (66 and 60mm) Spotting Scopes replaces Kowa TSE-Z4 eyepiece. Kowa Z9B Zoom Eyepiece has been completely redone and has nothing in common with its predecessor, it is a completely new eyepiece. Kowa TSE Z9B Spotting Scope Zoom Eyepiece has better specs, better clarity, has twist-up eyecups, and also incorporates the new zooming mechanism that is in Kowa TSE-Z7C Zoom Eyepiece.

Specifications for Kowa Interchangeable Eyepieces for 66mm and 60mm Spotting Scopes:

Model:   TE-17HD  TSE-21WD  TSE-Z6  TE-14WD  TSE-9Z
Magnification :   25x , LER  20x , Wide  20-40x , Zoom  30x , Wide  20-60x, Zoom
Angle of View :   2.1°  3.3°  20x: 1.9°

 40x: 1.4°

 2.4°  20x: 1.9°

 60x: 1.1°

Field-of-View (@ 1000 Yds) :   110' (37 m at 1000 m)  173' (58 m at 1000 m)

 20x: 100' (33 m at 1000 m)

 40x: 73' (24 m at 1000 m)

 126' (42 m at 1000 m) 32.3-17.5 yds
Exit Pupil Diameter :   2.4mm with 60mm scopes

 2.6mm with 66mm scopes

 3.0mm with 60mm scopes

 3.3mm with 66mm scopes

 20x: 3.0mm with 60mm scopes; 3.3mm with 66mm scopes

 40x: 1.5mm with 60mm scopes; 1.7mm with 66mm scopes

 2.0mm with 60mm scopes

 2.2mm with 66mm scopes

 3.3-1.1mm
Eye Relief :   32mm  20mm  20x: 18.5mm

 40x: 15mm

 20mm  20x: 16.5mm

 60x: 16mm

Relative Brightness :   5.8 with 60mm scopes

 6.8 with 66mm scopes

 9.0 with 60mm scopes

 10.9 with 66mm scopes

 20x: 9.0 with 60mm scopes; 10.9 with 66mm scopes

 40x: 2.3 with 60mm scopes; 2.9 with 66mm scopes

 4.0 with 60mm scopes

 4.8 with 66mm scopes



Package Contents:

  • Kowa Interchangeable Eyepiece - for Kowa Spotting Scopes
