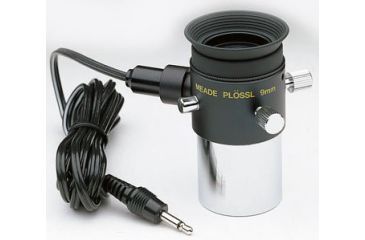

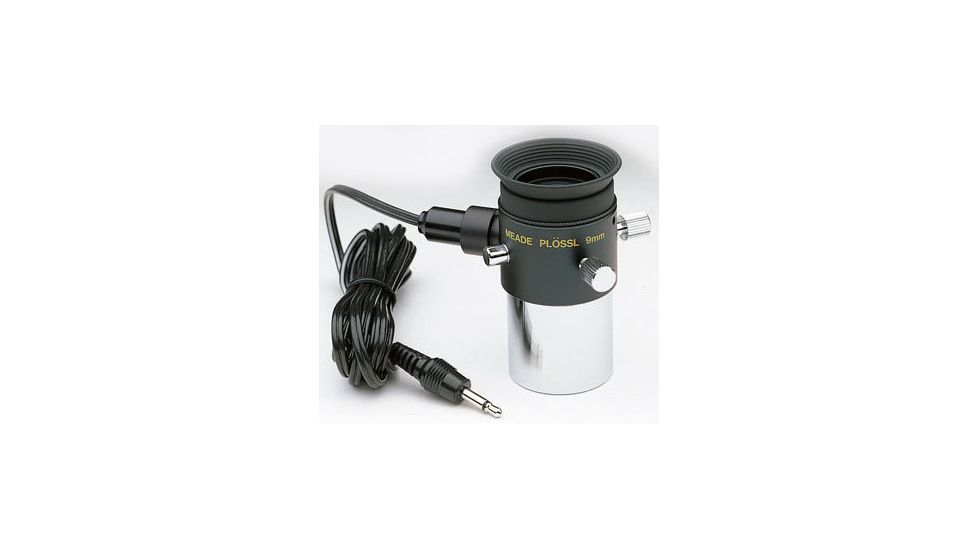

The most advanced commercially-available Illuminated Reticle Eyepiece , this Meade
9mm Illuminated Reticle Eyepiece (1.25") With Cord 07067 includes micrometric x-y positioning controls which greatly facilitate locking onto the guide star: turn the finely-threaded controls and place the reticle's crossline pattern precisely at the desired position in the field.
The sharp, high-power imaging of the 4-element, multi-coated Meade 9 mm Plossl Illuminated Reticle Eyepiece's optical system is complemented by a rubber eyecup (foldable for eyeglass wearers) that shuts out distracting stray light from the observer's eye.
upper (lens) section of 1.25"
Meade Illuminated Reticle Eyepiece 07067 rotates on
a fine thread for precise diopter adjustment to the user's eye.
Reticle pattern is a double crossline with two concentric circles.
9mm Illuminated Reticle Eyepiece Corded Model includes 6 ft.
cord and connector for direct plug-in to the control panels of Meade LX200
, LX200GPS, and ED/APO
telescopes. Separation of the power source and eyepiece permits
reticle brightness adjustments to be made during an exposure without risk of
vibrating the telescope.
Red LED brightness control is effected from the
telescope's hand controller or control panel.
Features of Meade Series 9mm Corded 1.25" Illuminated Reticle Eyepiece 07067:
- Includes micrometric x-y positioning controls
- 4-element optical system
- Multi-coated optics
- Adjustment to the user's eye
- Includes a red LED illuminator
- Upper (lens) section rotates on a fine thread for precise diopter
- Meade Series 4000 Plossl 9mm Illuminated
Reticle Eyepiece (1.25") With Cord 07067
