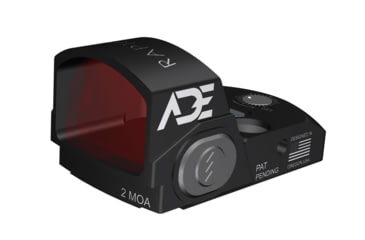

ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
2 of 6 images

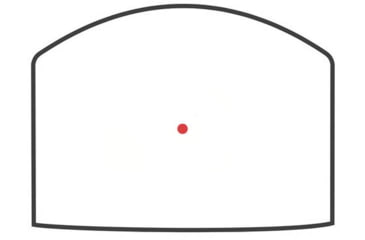

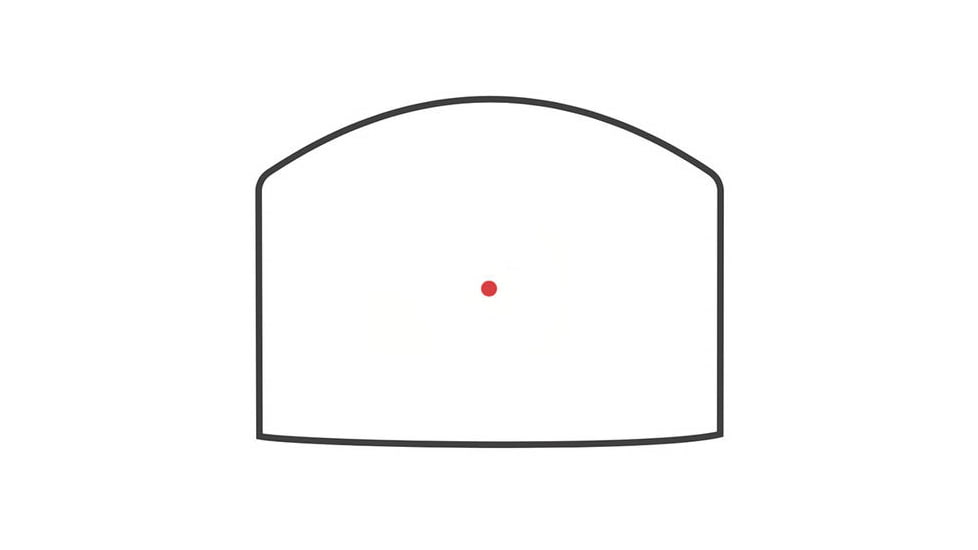

ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
3 of 6 images

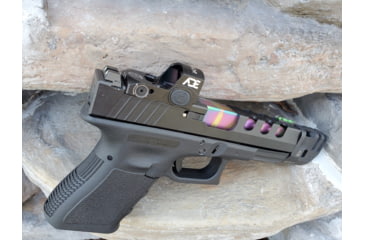

ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
4 of 6 images

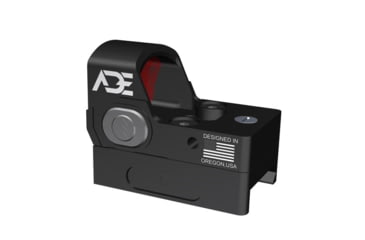

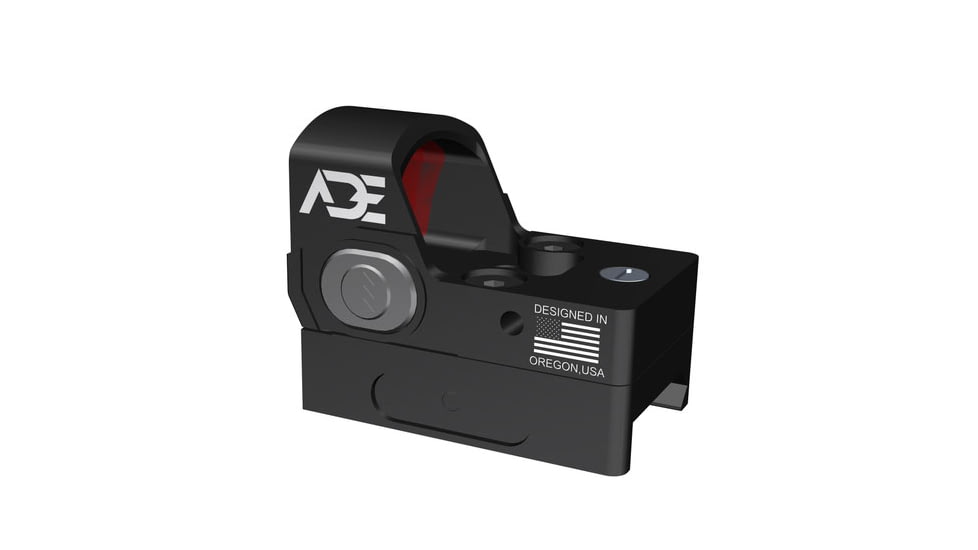

ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
5 of 6 images

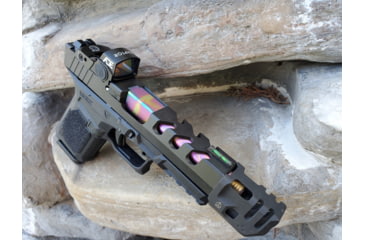

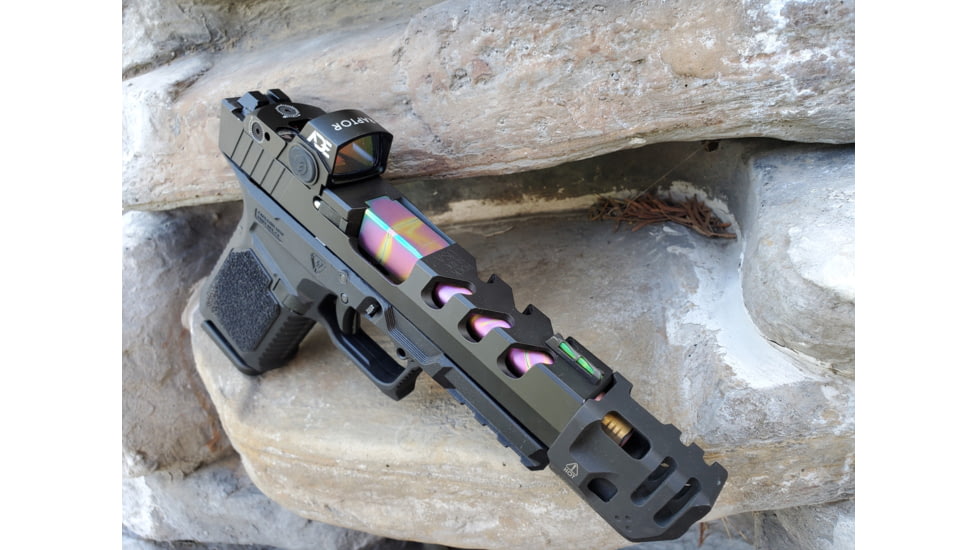

ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
6 of 6 images
ADE Advanced Optics RD3-020 Raptor Red Dot Sight, 2 MOA, Black, RD3-020
Tap Tap to Zoom
Questions & Answers
Customer Reviews
Helpful Negative Review
I used this sight only once, when i intiall mounted it and was in the process of zeroing it in. The red dot functioned well for several magazines through a Glock 17 however, The dot began moving upward in the dispalay window eventually settling all t...
Read More...
2/2 found this helpful
Read More...
Most Recent Reviews
The optic itself seems very well made and the dot is excellent. Unfortunately I mistakenly assumed it would fit my RMSc carry pistol.
That was completely my error since this model uses the standard RMR footprint. Once I installed it on another compa...
Read More...
Read More...
Most Recent Reviews
I waited several months before reviewing because I wanted to see how it would hold up. The optic now has approximately 1,500 rounds on my Glock clone and has maintained zero throughout.
The glass is clear with very little tint, adjustments tracked a...
Read More...
Read More...
Most Recent Reviews
I leave the optic powered on all the time because the Motion Awake system automatically puts it to sleep after a few minutes and instantly wakes it back up when the pistol moves. It's one of those features you don't realize you'll appreciate until yo...
Read More...
Read More...
Most Recent Reviews
The viewing window is larger than I expected, making it much easier to acquire the dot during rapid transitions.
Brightness controls are simple, the buttons are easy to reach, and the optic has performed perfectly during multiple outdoor range trips...
Read More...
Read More...
Most Recent Reviews
Mounted this directly onto my RMR-cut slide with no fitting required. Zeroing was quick, and after several hundred rounds it hasn't shifted at all.
The housing feels very solid, and I really appreciate that ADE includes the Picatinny mount so I can ...
Read More...
Read More...
- Color:
- Black
- Reticle:
- 2 MOA Dot
- Illumination Color:
- Red
- Included Accessories:
- Standard
- Condition:
- New
- Quantity:
- 1
- Red Dot Sights-Footprint:
- Not Applicable
Code: 5L8-RD-20RFT-RD3-020
MPN: RD3-020
UPC: 640978407519
List: $149.99Save $10.00
$139.99

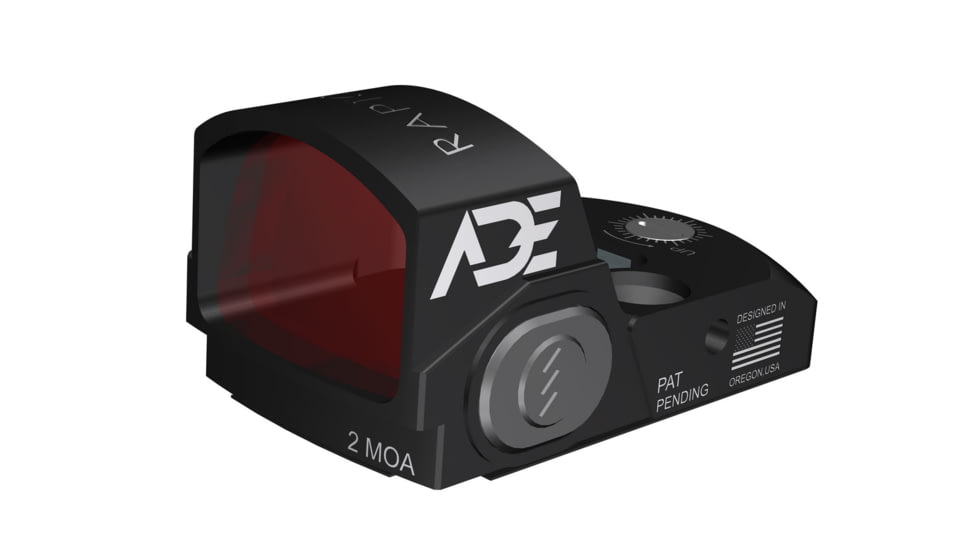

Product Info for ADE Advanced Optics RD3-020 Raptor Red Dot Sight
The RAPTOR is equipped with ADE smallest 2 MOA illuminated red dot, designed to be used on pistols, shotguns, and rifles. It comes with a removeable picatinny mounting plate and can also be attached to a varieties optics ready handgun with RMR footprint mounting plate/optics cut. To turn the unit on, press and hold the + or - button for 2 seconds. To turn the unit off, press and hold both + and - buttons for 2 seconds. To adjust the brightness, quick press + button to increase brightness, quick press – button to decrease the brightness The Raptor has Motion-On/Wake-Sleep technology. While Raptor is turned on, the red dot illumination goes sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting. When the unit is powered off, the motion sensor is turned off too.
Specifications for ADE Advanced Optics RD3-020 Raptor Red Dot Sight:
| Manufacturer: | ADE Advanced Optics |
| Color: | Black |
| Finish: | Anodized |
| Fabric/Material: | 6061 Aircraft Aluminum |
| Magnification: | 1 x |
| Objective Lens Diameter: | 26.5 mm |
| Reticle: | 2 MOA Dot |
| Illumination Color: | Red |
| Eye Relief: | Unlimited |
| Adjustment Type: | MOA |
| Adjustment Click Value: | 1 MOA |
| Emitter Type: | Enclosed |
| Battery Type: | CR2032 |
| Battery Life: | 500 hours (High), 50000 hours |
| Weather Resistance: | Rainproof |
| Shockproof: | Yes |
| Fogproof: | Yes |
| Weight: | 1.06 oz |
| Included Accessories: | Standard |
| Condition: | New |
| Magnification Type: | Fixed |
| Quantity: | 1 |
| Red Dot Sights-Footprint: | Not Applicable |
| Mount Type: | Picatinny |
| Attachment Type: | Picatinny |
Features of ADE Advanced Optics RD3-020 Raptor Red Dot Sight
- Ade RD3-020 Rapter is a 2 MOA Red Dot designed to fit any pistol mounting plate/slide/cut that is compatible with RMR/SRO, Holosun 407C/507C/508T footprint red dots
- The Raptor has Motion-On/Wake-Sleep technology. While Raptor is turned on, the red dot illumination goes to sleep after five minutes of inactivity, but when any motion or vibration is detected, it instantly switches on illumination at the previous brightness setting.
- Dimension 1.47x1x1.1 inches. Shockproof/Fogproof/RainProof.
- Operates with a single CR2032 battery(included). Battery life is up to 50000 on low and 500 on brightest setting. You hold + and - for 2 sec to turn on, and hold both + and - to turn off. Since it has a motion sensor to go to sleep, users do not really need to power it off. When the unit is powered off, the motion sensor is turned off too. 1-10 levels of brightness intensity.
- 2 MOA Red Dot. Comes with a picatinny mounting plate and a pair of screws. This red dot does NOT comes with any other optic plate to mount on an specific pistol.
Package Contents:
- ADE Advanced Optics RD3-020 Raptor Red Dot Sight
- Picatinny Plate
- Lens Cloth
- Screws
- Tools
- Instructions
- Rubber Cover
- Battery
