Product Info for American Precision Arms Fat Bastard Self Timing Muzzle Brake

American Precision Arms is very excited to share the release of Fat Bastard. It has been a long time coming but they wanted to make sure everything was perfect before offering something new.image

The development of APA Fat Bastard was the result of American Precision Arms' constant pursuit of breaking the mold and a desire to meet the demands of the Long-Range and Hunting markets. APA has combined the standards of high-level performance and reliability with distinctive design enhancements to improve both accuracy and performance. These enhancements benefit the shooter experience at the range and in the field where every advantage matters.

The roots of the new version of the Fat Bastard lie in the requests of the elite long-range precision rifle community. APA's goal was to meet the needs of those shooters while also maintaining their standards of pristine manufacturing. Among the design, changes are three key features. The advanced Unique Recoil Profile tunable top port design allows the shooter to fine-tune the muzzle movement for absolute target retention. In addition to that, the new lock nut design creates a zero over rotating platform. Last, is the addition of a fifth Bastard port section that eliminates even more recoil than before.

This allows the shooter to not only combat direct recoil but muzzle rise and lateral movement based on the characteristics of their rifle, personal grip, stance, and the position they are shooting from.

They developed the U.R.P. Adjustable Gas System. These aren't just randomly placed top ports. Every port is placed adjacent to the internal Bastard tooth where there is maximum pressure build-up. This makes the adjustable ports directionally effective.

The unique tunable gas system combined with the trademark APA ports work together to achieve a sight picture that moves less than ever before. There are 10 directional gas ports that can be tuned to counteract youre U.R.P. (unique recoil profile).

There are endless combinations to keep your sights on target. To calibrate the brake to your U.R.P., start testing with all the gas screws installed. Pay attention to the movement of your reticle, and begin removing the gas screws as the recoil requires.

When the gas screws are removed on the right side, the rifle will be shifted left. For the opposite effect simply remove the screws on the left. The gas holes closer to the nut have a more dramatic effect and the ports closer to the brake crown have a lesser effect. When you find your U.R.P. combination, Threadtite your screws into place.

Specifications for American Precision Arms Fat Bastard Self Timing Muzzle Brake:

Manufacturer: American Precision Arms
Projectile Caliber: .338 Caliber
Fabric/Material: Stainless Steel
Threads per Inch: 5/8x24
Model Generation: 2
Inner Diameter: 1.1 in
Length: 3.5 in
Weight: 7.2 oz
Included Accessories: Standard
Condition: New

Package Contents:

  • American Precision Arms Fat Bastard Self Timing Muzzle Brake
  • Set screws
  • One Allen wrench
  • Single-use Threadtite

American Precision Arms Fat Bastard Self Timing Muzzle Brake Orderable Models

List of Orderable Models

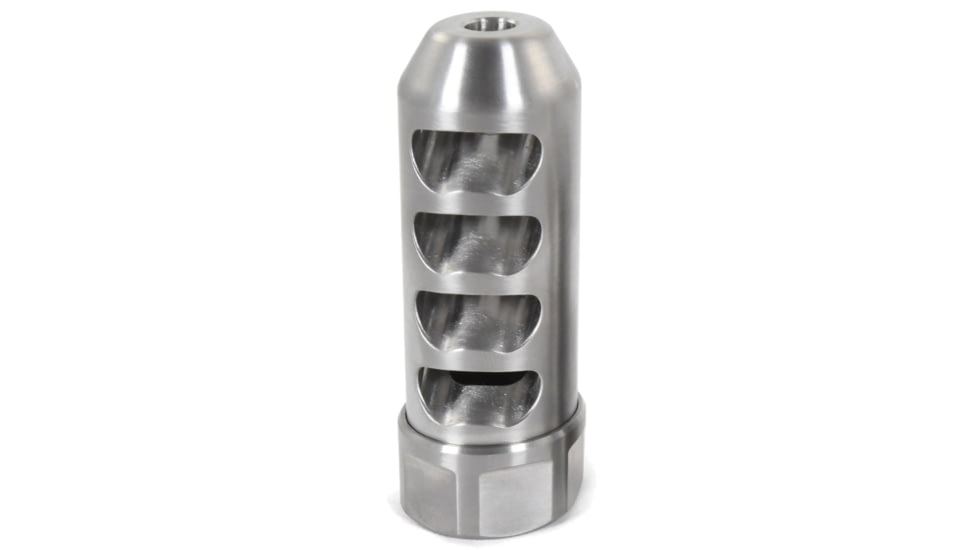

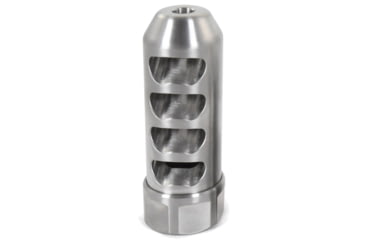

American Precision Arms Fat Bastard Self Timing Gen 2 Muzzle Brake, .338 or Smaller, 5/8x24, Stainless, G2F5838S , MPN: G2F5838S , UPC: 810131790844 , Code: 46Y-BMB-G2F5838N-G2F5838S

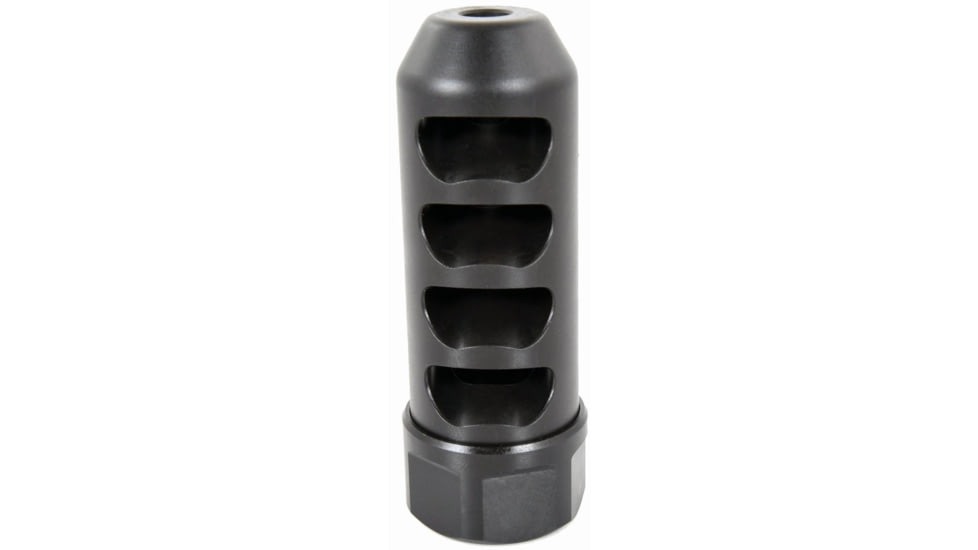

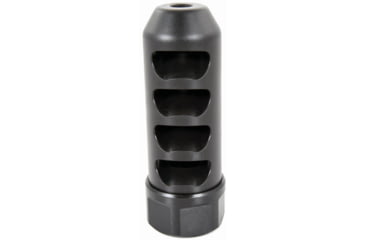

American Precision Arms Fat Bastard Self Timing Gen 2 Muzzle Brake, .338 or Smaller, 5/8x24, Nitrided, G2F5838N , MPN: G2F5838N , UPC: 810131790875 , Code: 46Y-BMB-G2F5838N-G2F5838N

American Precision Arms Fat Bastard Self Timing Muzzle Brake Unavailable & Discontinued Models

List of Unorderable Models

American Precision Arms Fat Bastard Self Gen 3 Timing Muzzle Brake, .338 or Smaller, 5/8x24, Stainless, G3F5838S , MPN: G3F5838S , UPC: 810131790677 , Code: 46Y-BMB-G2F5838N-G3F5838S
American Precision Arms Fat Bastard Self Gen 3 Timing Muzzle Brake, .30, 5/8x24, Stainless, G3F5830S , MPN: G3F5830S , UPC: 810131790660 , Code: 46Y-BMB-G2F5838N-G3F5830S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6.5mm, 5/8x24, Nitrided, G3F5865N , MPN: G3F5865N , UPC: 810131790608 , Code: 46Y-BMB-G2F5838N-G3F5865N
American Precision Arms Fat Bastard Self Gen 3 Timing Muzzle Brake, .30, 5/8x24, Nitrided, G3F5830N , MPN: G3F5830N , UPC: 810131790615 , Code: 46Y-BMB-G2F5838N-G3F5830N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6mm, 3/4x24, Stainless, G3F3460S , MPN: G3F3460S , UPC: 810131790721 , Code: 46Y-BMB-G2F5838N-G3F3460S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .223, 5/8x24, Stainless, G3F5822S , MPN: G3F5822S , UPC: 810131790639 , Code: 46Y-BMB-G2F5838N-G3F5822S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .338, 3/4x24, Nitrided, G3F3438N , MPN: G3F3438N , UPC: 810131790714 , Code: 46Y-BMB-G2F5838N-G3F3438N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .338, 3/4x24, Stainless, G3F3438S , MPN: G3F3438S , UPC: 810131790752 , Code: 46Y-BMB-G2F5838N-G3F3438S
American Precision Arms Fat Bastard Self Gen 3 Timing Muzzle Brake, .338 or Smaller, 5/8x24, Nitrided, G3F5838N , MPN: G3F5838N , UPC: 810131790622 , Code: 46Y-BMB-G2F5838N-G3F5838N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6.5mm, 3/4x24, Stainless, G3F3465S , MPN: G3F3465S , UPC: 810131790738 , Code: 46Y-BMB-G2F5838N-G3F3465S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .6.5mm, 5/8x24, Stainless, G3F5865S , MPN: G3F5865S , UPC: 810131790653 , Code: 46Y-BMB-G2F5838N-G3F5865S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .223, 5/8x24, Nitrided, G3F5822N , MPN: G3F5822N , UPC: 810131790585 , Code: 46Y-BMB-G2F5838N-G3F5822N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6mm, 5/8x24, Nitrided, G3F5860N , MPN: G3F5860N , UPC: 810131790592 , Code: 46Y-BMB-G2F5838N-G3F5860N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6mm, 5/8x24, Stainless, G3F5860S , MPN: G3F5860S , UPC: 810131790646 , Code: 46Y-BMB-G2F5838N-G3F5860S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6.5mm, 3/4x24, Nitrided, G3F3465N , MPN: G3F3465N , UPC: 810131790691 , Code: 46Y-BMB-G2F5838N-G3F3465N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .30, 3/4x24, Nitrided, G3F3430N , MPN: G3F3430N , UPC: 810131790707 , Code: 46Y-BMB-G2F5838N-G3F3430N
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, .30, 3/4x24, Stainless, G3F3430S , MPN: G3F3430S , UPC: 810131790745 , Code: 46Y-BMB-G2F5838N-G3F3430S
American Precision Arms Fat Bastard Gen 3 Self Timing Muzzle Brake, 6mm, 3/4x24, Nitrided, G3F3460N , MPN: G3F3460N , UPC: 810131790684 , Code: 46Y-BMB-G2F5838N-G3F3460N
