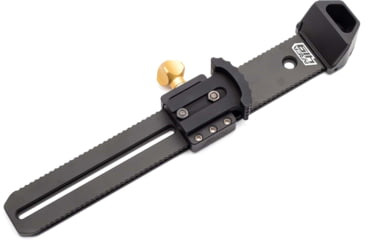

Area 419 ARCALOCK 12in Universal Barricade Rail Kit 419-ALK-UNIV12-KIT Color: Black, Finish: Anodized, 17% Off w/ Free Shipping

Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, youve probably also seen it slide under much pressure. These positions are engraved on the rail so you can easily adjust for known objects.

Specifications for Area 419 ARCALOCK 12in Universal Barricade Rail Kit:

Features of Area 419 ARCALOCK 12in Universal Barricade Rail Kit

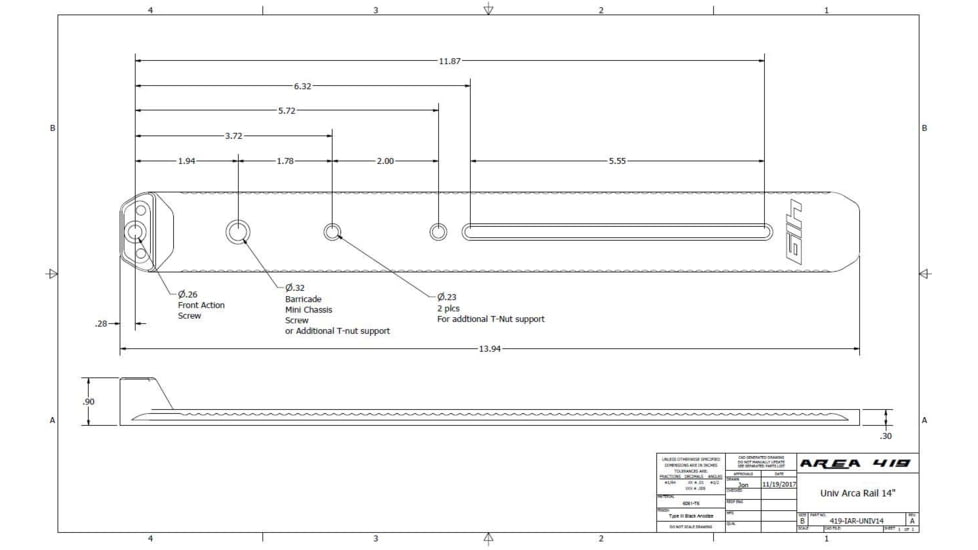

• Universal rail design is the same footprint as our previous rail
• There were two revisions to the hole spacing, if you have a very early model your hole spacing may change

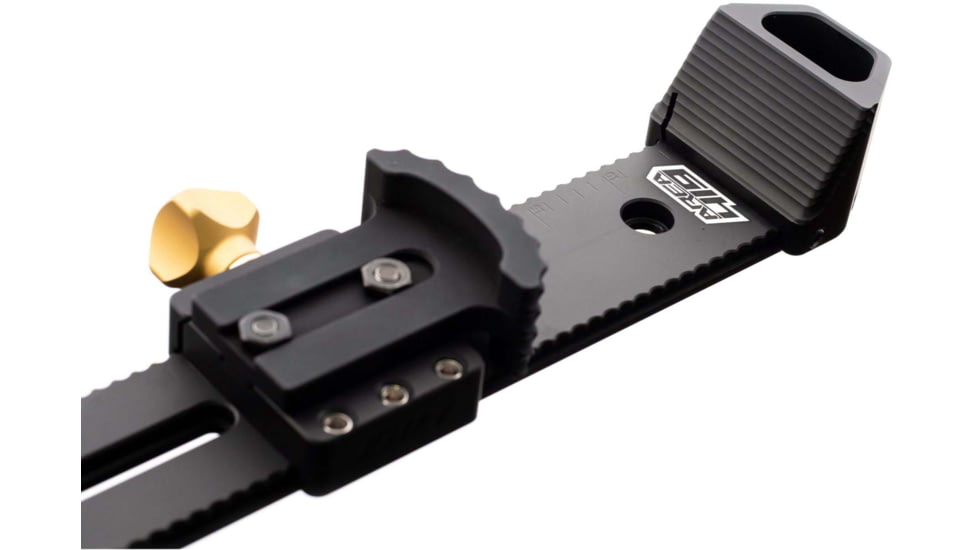

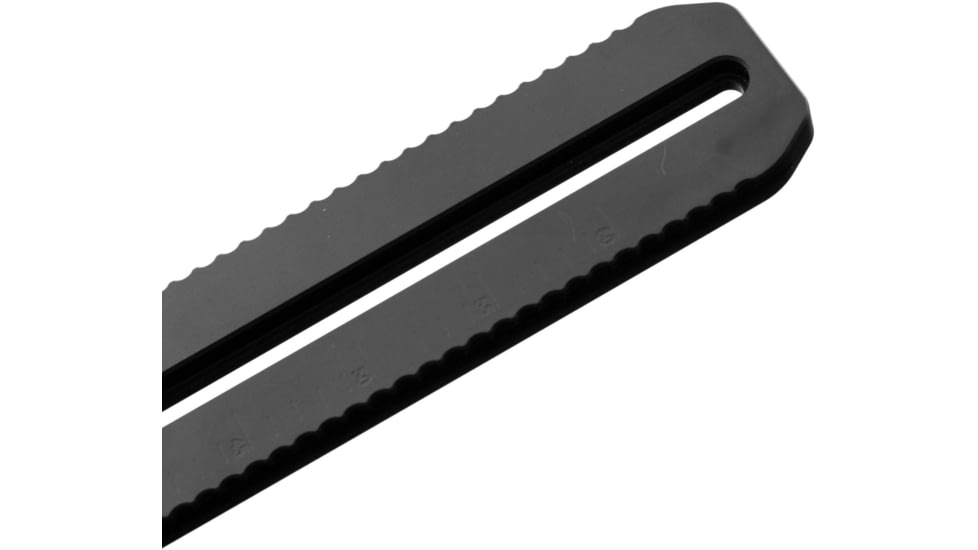

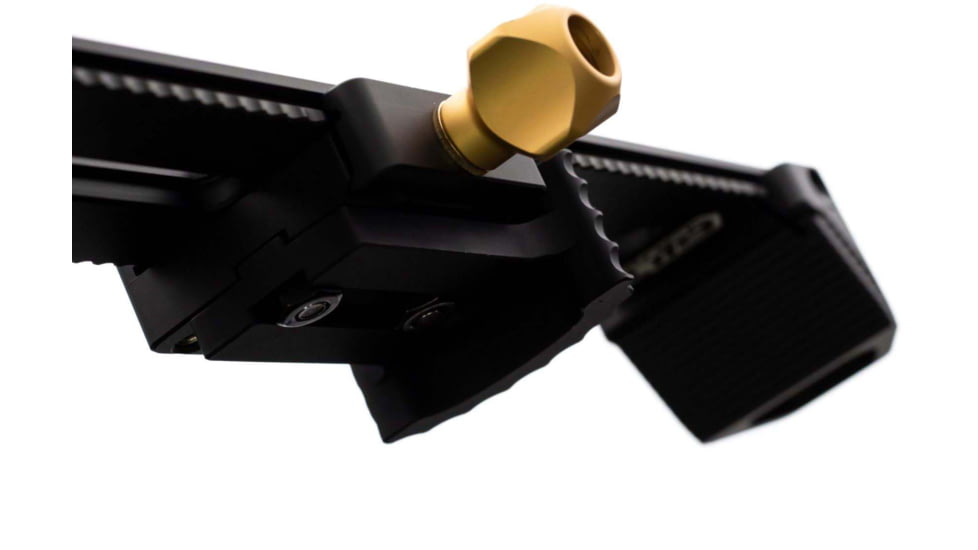

• Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible
• Serrations are not sharp, will not damage bags or your hands
• 58 Locking positions available on the 12in rail
• These positions are engraved on the rail so you can easily adjust for known objects
• Rail is backwards compatible with standard Arca accessories, but will not be locking without our clamp
• Made to the RRS 1.5in Dovetail Standard, so you can be sure lever clamps will work
• No sharp edges. Every corner is radiused, and every edge is chamfered on the machine
• This takes longer to make, but it is the only right way
• While designed with Manners Composite Stocks in mind, this rail accommodates a multitude of rifle and stock configurations that have an accessible front action screw and some sort of front attachment point(s)
• One hole is located to bolt directly to a Manners Barricade Mini Chassis if you choose to forego the rear action screw hold down

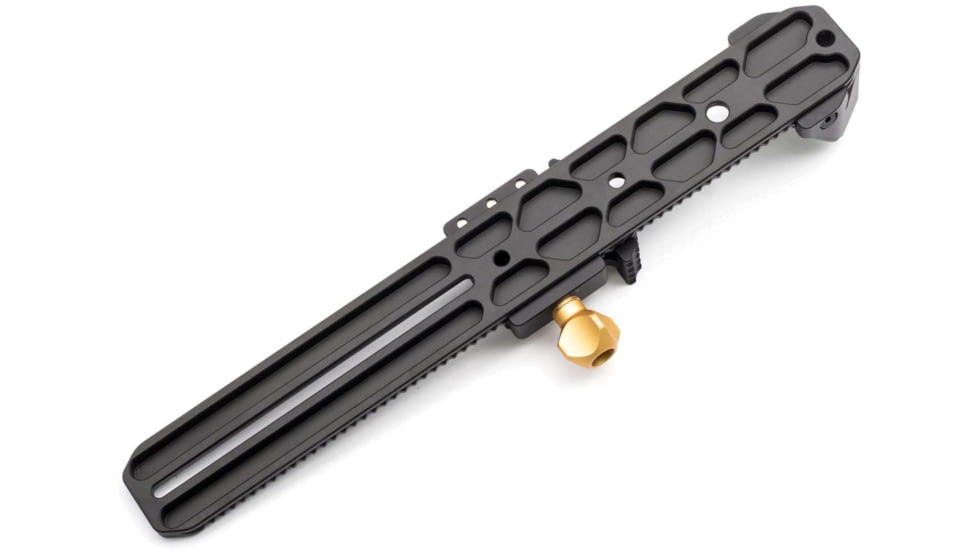

• Designed to attach to the rifle up to 6 places for maximum strength and stability
• Extends past the end of some rifle stocks, allowing a further forward bipod attachment, increasing stability
• Rail comes with 1 Remington 700-style action screws to fit the rail to the front action screw attachment point
• Some trimming will likely be required
• A 3/4in paddle bit and drill press may be required for installation of tee-nuts, depending on current rifle configuration

Package Contents:

• Area 419 ARCALOCK 12in Universal Barricade Rail Kit
• M-LOK Mounting Hardware
