Product Discontinued by Manufacturer
ATN Otis 14 TIMNOTIS14 Thermal System has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging, Thermal Imaging Monoculars yourself to try and find the perfect replacement for you!
Product Info for ATN Otis 14 TIMNOTIS14 Thermal System

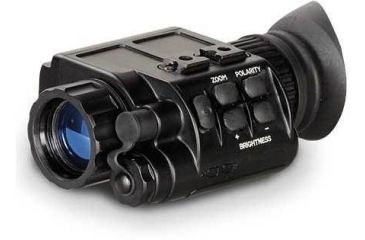

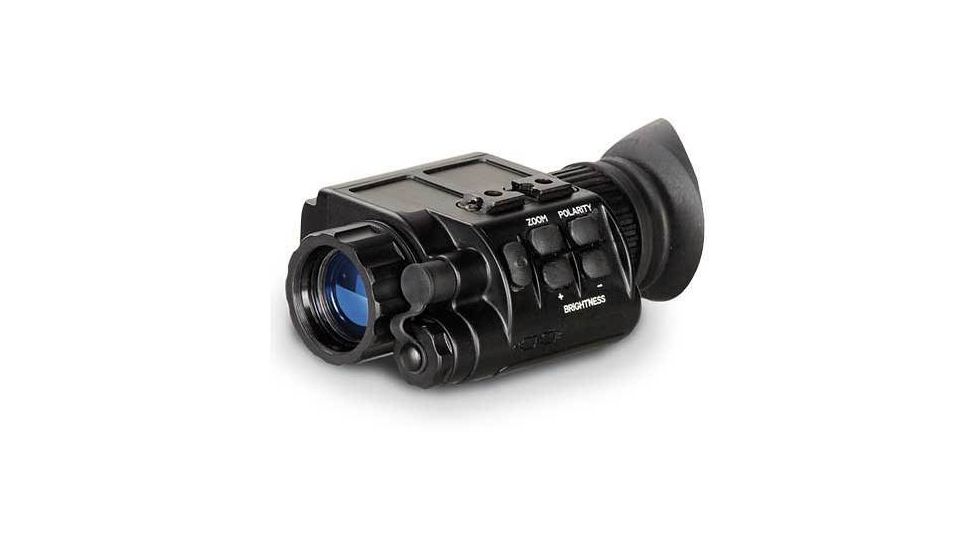

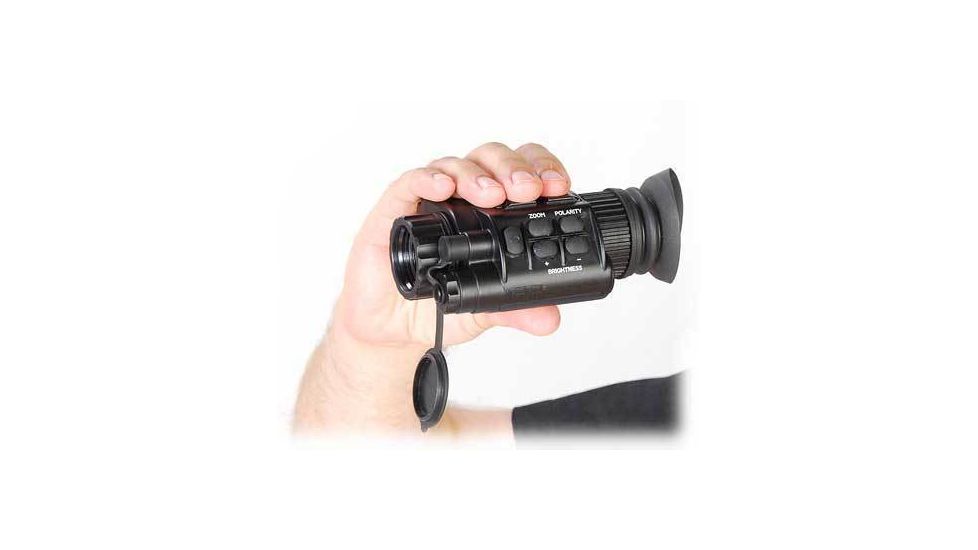

ATN Otis14 TIMNOTIS14 Heat Seekers are thermal systems intended for law enforcement, military and commercial uses. It is built around state-of-the-art uncooled thermal imaging technology, highly integrated DSP-based electronics and a compact, lightweight system.The OTIS-14 thermal TIMNOTIS14 monocular from ATN provides excellent image quality which is un-affected by lights or shadows that seriously hamper the image quality of image intensifier night vision. Total darkness, camouflage or bright lights will not affect the sensitivity of these units.The included and optional accessories provide for the versatility of the ATN Thermal Monocular. You can put it on a headset or on a helmet, connected to another monocular to build a binocular system etc.The ATN TIMNOTIS14 OTIS-14 's superior performance, compact size, comfort of wear and cost efficiency make it the perfect thermal imaging device.
Specifications for ATN Otis 14 and Otis-14-9HZ Thermal Systems:
| Magnification:Â | Â 1,8X | |
| Objective Focal Length:Â | Â 25 mm | |
| FOV:Â | Â 11 x 8 deg | |
| Focus Range:Â | Â 1m to infinity | |
| Focus Adjustment:Â | Â Manual | |
| Exit Pupil:Â | Â 14mm | |
| Eye Relief:Â | Â 25mm | |
| Detector Type:Â | Â Uncooled Microbolometer | |
| Spectral Response: |  7-14 µm | |
| Pixels:Â | Â 160 x 120 | |
| Pixel Size: |  30 x 30 µm | |
| Angular Resolution, mrad:Â | Â 1,2 | |
| Thermal Sensitivity:Â | Â < 0,1 C | |
| Range to Detect a Human:Â | Â 475 m | |
| Output Format:Â | Â Analog PAL / NTSC | |
| Display:Â | Â OLED matrix | |
| Display Format:Â | Â SVGA, 852 x 600 pxl | |
| Color:Â | Â Monochrome | |
| Digital ZOOM:Â | Â Fixed 2x (optional 5x) | |
| Brightness Adjustment:Â | Â Manual | |
| Contrast Adjustment:Â | Â Automatic | |
| Available User Interfaces:Â | Â From outside PC through USB interface | |
| USB interface Power Supply:Â | Â 2 x 3V, 123Atype | |
| Start-Up Time:Â | Â < 3 sec | |
| Operating Time w/one battery pack:Â | Â 4 hrs | |
| External Power Supply:Â | Â DC 6V, 500 mA | |
| Operating Temperature Range:Â | Â from -20C to +50C | |
| Waterproof:Â | Â Yes, up to 10m submersion | |
| Dimensions:Â | Â 118 x 78 x 54 mm | |
| Weight (w/batteries):Â | Â 0,34 kg | |
Features of ATN Otis-14 Thermal Monoculars:
- High resolution digital thermal imaging
- Compact, lightweight and durable housing
- Head/helmet mountable for hands-free usage
- High Quality optics
- Video and computer output
- Video/Image polarity selection
- Waterproof
- Limited 1 Year Warranty
Package Contents:
- ATN Otis14 Thermal Device
- Video Cable
- Two Lithium Batteries
- Pellican Waterproof Hard Case
- Warranty card
- Soft carrying Case
- Packing box
- Instruction Manual & CD guide
Thermal Monocular Accessories
Related Products to ATN Otis 14 TIMNOTIS14 Thermal System
ATN Otis 14 TIMNOTIS14 Thermal System Unavailable & Discontinued Models
List of Unorderable Models
- ATN Otis 14 TIMNOTIS14 Thermal System , MPN: TIMNOTIS14 , UPC: 658175342007 , Code: AT-THM-Otis14-TIMNOTIS14
