Axton Zoom AT-15Z-S Multi Angle IR Illuminator, AT-15Z-S.15Z28
2 of 3 images
Axton Zoom AT-15Z-S Multi Angle IR Illuminator, AT-15Z-S.15Z28
3 of 3 images
Axton Zoom AT-15Z-S Multi Angle IR Illuminator, AT-15Z-S.15Z28
Tap Tap to Zoom
Questions & Answers
- Wavelength:
- 850 nm
Code: 6B7-IR2-AN019LR-AT-15Z-S-15Z28
MPN: AT-15Z-S.15Z28
UPC: 819960010031
List: $884.00Save 17%
$729.99
Product Info for Axton Zoom AT-15Z-S Multi-Angle IR Illuminator
The Zoom 45Z IR illuminator offers the ultimate flexibility, featuring long range, and wide angle IR coverage in one solution. The three built-in angles are controlled via the I/O ports in real-time, or pre-set during installation, to adapt to a specific location.
Specifications for Axton Zoom AT-15Z-S Multi-Angle IR Illuminator:
| Manufacturer: | Axton |
| Wavelength: | 850 nm |
| Operating Temperature: | -58 - 140 Fahrenheit |
| Water Resistance Level: | IP67 |
| Weight: | 1.25 lb |
| Dimensions: | 5.25 x 3 x 7.25 in |
Features of Axton Zoom AT-15Z-S Multi-Angle IR Illuminator
- Wavelength 850nm Infrared
- Outdoor IP67 Rated
- Energy Efficient Advanced LED Technology

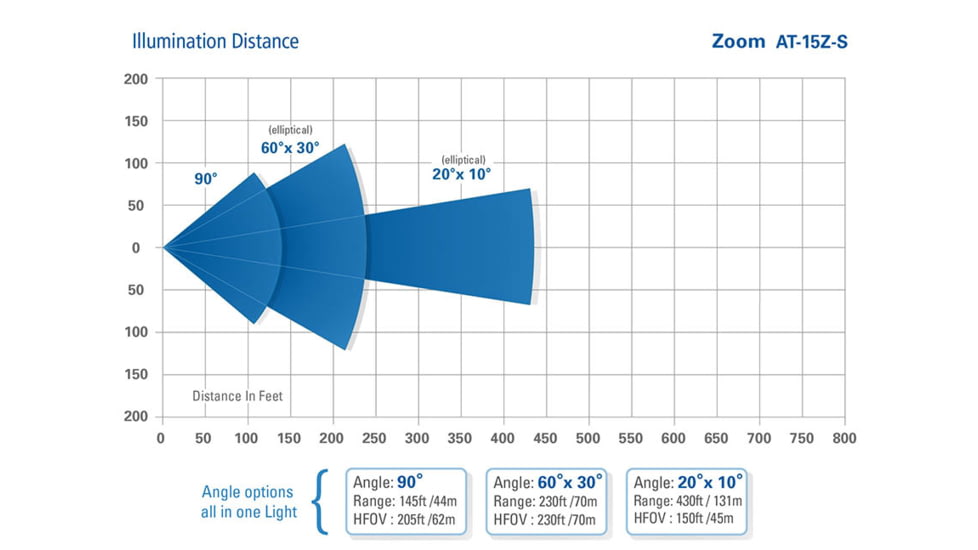

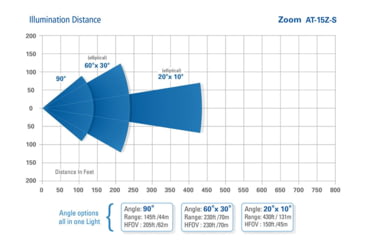

- Illumination Range: up to 430 ft. (20 degrees x 10 degrees)
- Light Beam Angles: 90 (60 degrees x 30 degrees elliptical) 20 x 10
- Power Consumption 15 Watts
- Input Voltage 24-36V DC or 24V AC
- I/O Ports Sync with Sensors, Camera, I/O Port Devices
- Automatic Day/Night Switch
- Rugged Construction Vandal Resistant
- Lifetime Warranty
Package Contents:
- Axton Zoom AT-15Z-S Multi-Angle IR Illuminator
- Pan/Tilt U Bracket
- Setup guide
Axton Zoom AT-15Z-S Multi-Angle IR Illuminator Orderable Models
List of Orderable Models
- Axton Zoom AT-15Z-S Multi Angle IR Illuminator, AT-15Z-S.15Z28 , MPN: AT-15Z-S.15Z28 , UPC: 819960010031 , Code: 6B7-IR2-AN019LR-AT-15Z-S-15Z28
