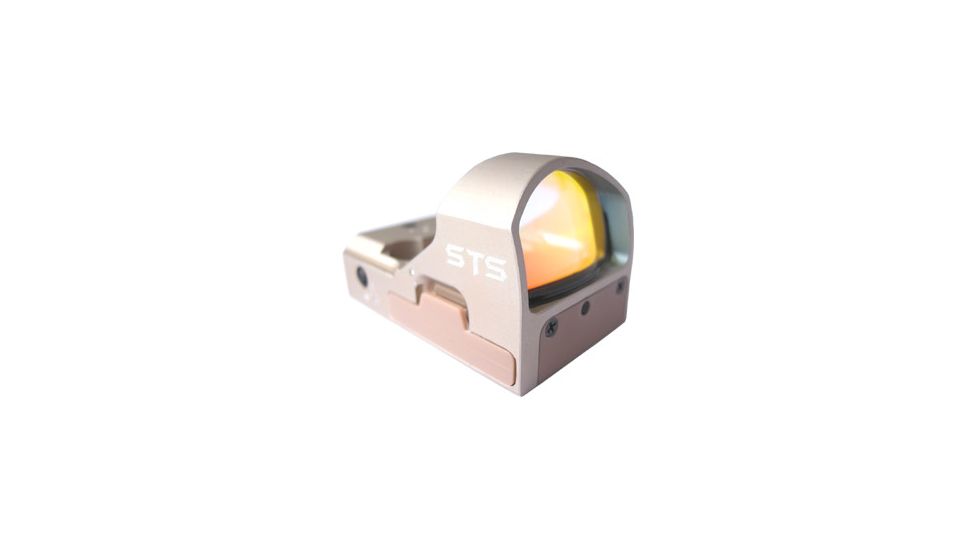

C-More STS Mini Red Dot Sight
Tap Tap to Zoom
Read More...
Read More...
Code: C6-RD-STSMN-STSCDT-7
MPN: STSCDT-7
UPC: 649725005862
Product Info for C-More STS Mini Red Dot Sight
C-More Systems STS Small Tactical Sight Mini Red Dot is the smallest reflex sight in the C-MORE lineup. The C-More STS Mini Red Dot Sight features a head up display that provides an unobstructed sight picture in which the red dot hovers on the sight line, illuminating the point of impact on the target and creating the fastest target acquisition in existence, and unlimited eye relief. Similarly, the CMore STS Mini Red Dot uses a beam-splitter lens made of glass; hard coated for maximum scratch resistance, and light transmission, while the parallax free design enables targets to be acquired without the need to center he dot in the lens.
This red dot sight by C-MORE uses a single CR2032 lithium battery that is contained within a removable battery tray, which permits battery replacement without dismounting the sight; this eliminates the need for re-zeroing when replacing a battery. The battery tray is O-ring sealed, and is part of the waterproofing that goes into every CMore STS Reflex sight. A 3 position switch provides automatic intensity adjustment; a high brightness setting; and an off position. The C-More STS Red Dot Sight aircraft alloy housing and electronics are designed to handle the hottest loads from large caliber firearms. The STS red dot scope by C-MORE provides infinite adjustment capability; by eliminating "clicks", the adjustments can be set to exact positions, resulting in pin point accuracy. A positive locking screw for both windage and elevation lock the adjustment screws in position.
Specifications for CMore Systems Tactical Small Reflex Sight:
| Dimensions | ||
|---|---|---|
| Length: | 1.765 in. (44.84 mm) | |
| Width: | 1.068 in. (27.14 mm) | |
| Height - Overall: | 1.059 in. (26.9 mm) | |
| Weight (with battery): | 1.16 oz. (33 g) | |
| Weight (without battery): | 1.09 oz. (31 g) | |
| Optics | ||
| Sight Window Width: | .946 in. (24.02 mm) | |
| Sight Window Height: | .604 in. (15.34 mm) | |
| Magnification: | 1x | |
| Lens: | 100 % Parallax Free, Anti-Reflective Coated, Glass | |
| Adjustments | ||
| Positive Locking System: | Yes | |
| Elevation Adjustment Range: | 180 in. @ 100 yds (457cm @ 100 m) | |
| Windage Adjustment Range: | 120 in. @ 100 yds (305cm @ 100 m) | |
| Construction | ||
| Body Type: | Aluminum | |
| Electronics | ||
| Intensity Switch, 3 position: | Yes | |
| Dot Size: | 7 moa | |
| Battery - 3V Lithium, CR2032: | Yes | |
| Battery Life (normal use, self adjusting mode): | 1 year | |
| Misc. | ||
| Operating Temperature Range: | -13°F to +131°F (-25°C to +55°C) | |
| Storage Temperature Range (No Battery): | -40°F to +158°F (-40°C to +70°C) | |
| Water Resistance Depth: | 1 m | |
Features of C More System Small Tactical Red Dot Sights:
- Small Compact Design
- 3 position switch; Full Bright, Auto, Off.
- Aluminum Body
- Precision Adjustments With Lock
- Glass Lens
- Available in Black and Desert Tan
- Removable Battery Tray
- Water Resistant to 1 meter
- Ultra Bright Red Dot available in 3.5 or 7 MOA
- Mounts Available Separately
Package Contents:
- C-More Systems STS Mini Red Dot Sight
- Protective Sight Cover
- CR2032 Battery (Installed)
- Adjustment Tool
- Adjustment Dial
- 2 Mounting Screws
- Instruction Manual
