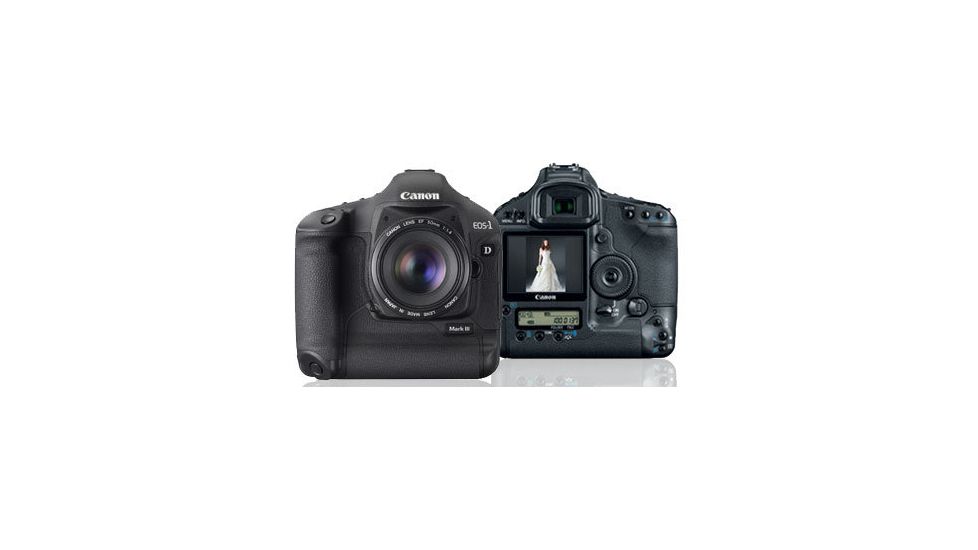

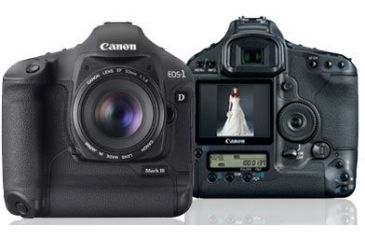

Canon's flagship EOS-1D Mark III is the most advanced EOS Digital SLR ever produced. It has a new 10.1 megapixel CMOS sensor (APS-H size) with Canon's EOS Integrated Cleaning System and a 3.0-inch LCD monitor with Canon's Live View technology. The 1D Mark III has a redesigned 100% viewfinder, a new 45-point AF system, and can shoot up to 10 fps continuously with a maximum burst of 110 shots. Dual "DIGIC III" Image Processors work in tandem to speed up every process while refining image quality; a new, lighter body has improved weather sealing and shutter durability. Every facet of the EOS experience has been enhanced with the 1D Mark III. It's the new standard.
 |
| Camera Type:Â |
 |
Â
- Digital AF/AE SLR
- Recording Media: CF Card Type I and II, SD/SDHC Memory Card (1 slot each), and/or External media (USB v.2.0 hard drive, via optional Canon WFT-E2A transmitter)
- Image Sensor Size: 1.11 x 0.74 in./28.1 x 18.7mm (APS-H size sensor)
- Compatible Lenses: Canon EF, TS-E, and MP-E lenses (except EF-S lenses)
- Lens Mount: Canon EF mount
|
 |
| Image Sensor:Â |
 |
Â
- Type: High-sensitivity, high-resolution, single-plate, CMOS sensor
- Pixels: Approx. 10.10 megapixels
- Total Pixels: Approx. 10.70 megapixels
- Aspect Ratio: 3:2 (Horizontal:Vertical)
- Color Filter System: RGB primary color filters
- Low-pass Filter: Fixed position in front of the CMOS sensor
- Dust Deletion feature: (1) Automatic sensor cleaning, (2) User-activated sensor cleaning, (3) Dust Delete Data appended to the captured image
|
 |
| Recording System:Â |
 |
Â
- Recording Format: DCF 2.0 (Exif 2.21): JPEG, RAW and RAW+JPEG simultaneous recording possible. Multiple options for recording images on two memory cards, and onto compatible external USB hard drives (via optional Wireless File Transmitter WFT-E2A)
- Image Type: JPEG, RAW (Canon .CR2)
- File Name: Preset code, User setting1 (4 characters), User setting2 (3 characters + 1 image size character)
- File Size: (1) JPEG/Large: Approx. 3.5MB (3,888 x 2,592), (2) JPEG/Medium 1: Approx. 2.8MB (3,456 x 2,304), (3) JPEG/Medium 2: Approx. 2.1MB (2,816 x 1,880), (4) JPEG/Small: Approx. 1.2MB (1,936 x 1,288), (5) RAW: Approx. 13.0MB (3,888 x 2,592), (6) sRAW: Approx. 7.6MB (1,936 x 1,288)
- Folder Setting: Folder creation/selection enabled
- Recording Functions: (1) Standard, (2) Auto switch media (recording media switched automatically), (3)Rec. separately (specified image size for each recording media), (4) Rec. to multiple (same image recorded to all recording media)
- Backup Recording: With WFT-E2/E2A attached, all images and folders in the CF card and SD card can be backed up to USB external media
- File Numbering: (1) Continuous numbering, (2) Auto reset, (3) Manual reset (the image numbering is reset to 0001, a new folder is created automatically)
- Image Copy: Image copying between recording media enabled (images with checkmarks or all images in folder or card)
- Color Space: sRGB, Adobe RGB
- Picture Style: Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3
|
 |
| Image Processing:Â |
 |
Â
- Type: Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, five Custom WB settings (1-5), user-set Color Temperature (2,500~10,000K), five Personal White Balance PC-1 to PC-5 (Total 10 WB types)
- Auto White Balance: Auto white balance, taken from imaging sensor
- Color Temperature Compensation: White balance bracketing: Three consecutive images, Up to +/- 3 levels in 1-stop increments White balance correction: blue/amber bias and/or magenta/green bias +/- 9 levels; manually set by user. When blue/amber bias and magenta/green bias set with White balance correction, white balance bracketing cannot be set together during white balance correction
- Color Temperature Information Transmission: Provided
|
 |
| Viewfinder:Â |
 |
Â
- Type: Eye-level SLR with fixed pentaprism
- Coverage: Approx. 100% horizontally and vertically
- Magnification: 0.76x (-1 dpt with 50mm lens at infinity)
- Eyepoint: Approx. 20mm
- Built-in Dioptric Adjustment: -3.0 to +1.0 diopter
- Mirror: Quick-return half mirror (Transmission: reflection ratio of 37:63)
- Viewfinder Information: AF (AF points, focus confirmation light), Exposure (metering mode, spot metering area, shutter speed, aperture, manual exposure, AE lock, ISO speed, exposure level, exposure compensation, exposure warning), Flash (flash ready, high-speed sync, FE lock, flash exposure level), Image (JPEG recording, RAW recording, shots remaining, white balance correction, memory card information), Battery check
- Depth-of-Field Preview: Enabled with depth-of-field preview button; possible in Live View mode
- Eyepiece Shutter: Built-in
|
 |
| Autofocus:Â |
 |
Â
- Type: TTL-AREA-SIR AF-dedicated CMOS sensor
- AF Points: 19 cross-type AF points (plus 26 Assist AF points)
- Metering Range: EV -1 ~18 (ISO 100 at 73°F/23°C)
- Focusing Modes: Autofocus (One-Shot AF, Predictive AI Servo AF), Manual Focus (MF)
- AF Point Selection: Automatic selection; Manual AF point selection: 19 AF points, Inner 9 AF points (C.Fn III-9-1), Outer 9 AF points (C.Fn III-9-2)
- Selected AF Point Display: Superimposed in viewfinder and on LCD panel
- AF-assist Beam: None. Emitted by EX-series Speedlite or optional ST-E2 Speedlite Transmitter
|
 |
| Exposure Control:Â |
 |
Â
- Metering Modes: 63-zone TTL full aperture metering
- (1) Evaluative metering (linked to all AF points)
- (2) Partial metering (approx. 13.5% of screen, at center)
- (3) Spot metering (approx. 3.8% of screen)
- Center spot metering
- AF point-linked spot metering
- Multi-spot metering (max. 8 spot metering entries)
- (4) Centerweighted average metering
- Metering Range: EV 0-20 (ISO 100 at 73°F/23°C with EF 50mm f/1.4 USM lens, ISO 100)
- Exposure Control: Program AE (shiftable), Shutter speed-priority AE, Aperture-priority AE, E-TTL II program AE (Evaluative flash metering, Averaged flash metering), Manual
- ISO Speed (Recommended Exposure Index): Equivalent to ISO 100-3200 (in 1/3-stop or whole stop increments), ISO speed can be expanded to ISO 50 and 6400 (via C.Fn I-3)* *Standard Output Sensitivity. Recommended Exposure Index.
- Exposure Compensation: Exposure Compensation (user-set): +/-3 stops in 1/3- or 1/2-stop increments. Auto Bracketing (AEB): 3 shots, up to +/- 3 stops, in 1/3 or 1/2 stop increments, in all exposure modes. Can be changed via C.Fn I-6 to 2, 5, or 7 shots. Bracketing order can be changed via C.Fn I-5.
- AE Lock: Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved; Manual (user-set): By AE lock button in all metering modes
|
 |
| Shutter:Â |
 |
Â
- Type: Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled
- Shutter Speeds: 1/8000 to 30 sec. (1/3-stop increments), X-sync at 1/300 sec. (with EOS Speedlites; 1/250 maximum with other shoe-mount flashes, and up to 1/60th or faster with studio strobes)
- Shutter Release: Soft-touch electromagnetic release
- Self-timer: 10 sec. delay, 2 sec. delay
- Remote Control: Canon N3 type terminal
|
 |
| External Speedlite:Â |
 |
Â
- EOS Dedicated Speedlite: E-TTL II autoflash with all EX Series Speedlites
- Zooming to Match Focal Length: Provided
- Compatible Flash: EX series Speedlites
- Flash Metering: E-TTL II autoflash
- Flash Exposure Compensation: ±3 stops in 1/3- or 1/2-stop increments
- FE Lock: Provided
- External Flash Settings: Flash function settings, Flash C.Fn settings
- PC Terminal: Provided; accepts third-party flash units with sync line voltages up to 250V maximum
|
 |
| Drive System:Â |
 |
Â
- Drive Modes: Single, silent, high-speed continuous (approx. 10 fps), low-speed continuous (approx. 3 fps), 10- or 2-sec. self-timer
- Continuous Shooting Speed: Approx. 10 fps (at a shutter speed of 1/500 sec. or faster in all recording modes); fastest speed can be lowered if desired via Custom Function III-16
- Maximum Burst:
- JPEG: approx. 110 frames (Large/Fine, at standard level 8 compression setting)
- RAW: approx. 30 frames
- RAW+JPEG: approx. 22 frames (Large/Fine)
|
 |
| Live View Functions:Â |
 |
Â
- Shooting Modes: (1) Remote Live View shooting (with a personal computer installed with EOS Utility), (2) Live View shooting
- Focusing: Manual focus
- Metering Modes: Evaluative metering with the image sensor
- Metering Range: EV 0-20 (at 23°C/73°F with EF 50mm f/1.4 USM lens, ISO 100)
- Magnified View: Magnifiable by 5x or 10x at AF point
- Grid Display: Provided
- Exposure Simulation: Provided
|
 |
| LCD Monitor:Â |
 |
Â
- Type: TFT color, liquid-crystal monitor
- Monitor Size: 3.0 in.
- Dots: Approx. 230,000 pixels
- Coverage: Approx. 100%
- Brightness Adjustment: 7 levels provided
|
 |
| Image Playback:Â |
 |
Â
- Display Format: Single image, 4-image index, 9-image index, Jump, Magnified zoom (approx. 1.5x to 10x), Histogram, Auto rotate, Rotate; Live view: view image before shooting on LCD monitor; live histogram and live simulation of exposure level possible with C.Fn IV-16-1
- Highlight Warning: In the single image display and (INFO) display, over-exposed highlight areas will blink
|
 |
| Image Protection and Erase:Â |
 |
Â
- Protect: Single image, all images in a folder, or all images in the memory card can be protected or cancel the image protection
- Erase: Single image, all images in a folder, all images in the memory card or check-marked images can be erased or unprotected
|
 |
| Direct Printing:Â |
 |
Â
- Compatible Printers: PictBridge-compatible printers
- Printable Images: JPEG images compliant to Design rule for Camera File System (DPOF printing possible) and RAW/sRAW images captured with the EOS-1D Mark III
|
 |
| DPOF: Digital Print Order Format:Â |
 |
Â
- DPOF: Version 1.1 compatible
|
 |
| Direct Image Transfer:Â |
 |
Â
- Compatible Images: JPEG and RAW/sRAW images *Only JPEG images can be transferred as wallpaper on the personal computer screen
|
 |
| Customization:Â |
 |
Â
- Custom Functions: Total 57
- My Menu Registration: Provided
- Save Camera Settings: Provided
- Register Basic Camera Settings: Provided
- C.Fn Registration Settings: Provided
|
 |
| Interface:Â |
 |
Â
- USB Terminal: For personal computer communication and direct printing (Hi-Speed USB)
- Video Out Terminal: NTSC/PAL selectable
|
 |
| New Features:Â |
 |
Â
- Dust Delete Feature: The sound clip recorded with the built-in microphone is attached to the image
- Picture Style: WAV
- Recording Time: Max. 30 sec. per sound clip
|
 |
| Menus:Â |
 |
Â
- Menu Categories: (1) Shooting, (2) Playback, (3) Setup, (4) Custom function/My Menu
- LCD Monitor Language: 18 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Simplified/Traditional Chinese, Korean, Japanese)
|
 |
| Power Source:Â |
 |
Â
- Battery: One dedicated lithium-ion battery LP-E4, AC power can be supplied via the AC Adapter Kit ACK-E4
- Battery Life: At 73°F/23°C: Approx. 2200, At 32°F/0°C: Approx. 1700; The above figures apply when a fully-charged Battery Pack LP-E4 is used
- Battery Check: Automatic
- Power Saving: Provided. Power turns off after 1, 2, 4, 8, 15, 30 min.
- Date/Time Battery: One CR2025 lithium battery
- Start-up Time: Approx. 0.2 sec.
|
 |
| Dimensions and Weight:Â |
 |
Â
- Dimensions (WxHxD): 6.1 x 6.2 x 3.1 in./156 x 156.6 x 79.9mm
- Weight: 40.7 oz./1,155g
|
 |
| Operating Environment:Â |
 |
Â
- Working Temperature Range: 32-113°F/0-45°C
- Working Humidity Range: 85% or less
|
 |
| Battery Pack:Â |
 |
Â
- Type: For LP-E4; Rechargeable lithium ion battery
- Rated Voltage: 11.1 V DC
- Battery Capacity: 2300mHh
- Dimensions (WxHxD): 68.4 x 34.2 x 92.8mm/2.7 x 1.3 x 3.7 in.
- Weight: 180g/6.3 oz. (excluding protective cover)
|
 |
| Battery Charger:Â |
 |
Â
- Type: For LC-E4; Charger dedicated to the Battery Pack LP-E4
- Recharging Time: Approx. 120 min. (for 1 pack)
- Rated Input: 100-240 V AC (50/60 Hz), 12 V/24 V DC
- Rated Output: 12.6 V DC, 1.55 A
- Working Temperature Range: 0°C-40°C/32°F - 104°F
- Working Humidity Range: 85% or less
- Dimensions (WxHxD): 155 x 52.3 x 95mm/6.1 x 2.1 x 3.7 in.
- Weight: 340g/12.0 oz. (excluding power cord and protective covers)
|
 |
| AC Adapter:Â |
 |
Â
- Type: For ACK-E4
- Rated Input: 12.6 V DC
- Rated Output: 11.1 V DC
- Cord Length: Approx. 2.3 m/7.5 ft.
- Working Temperature: 0°C-45°C/32°F-113°F
- Working Humidity: 85% or less
- Dimensions (WxHxD): 68.4 x 34.2 x 92.8mm/2.7 x 1.3 x 3.7 in.
- Weight (Approx.): 165g/5.8 oz. (excluding protective cover)
|
 |
