Canon Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960
1 of 2 images

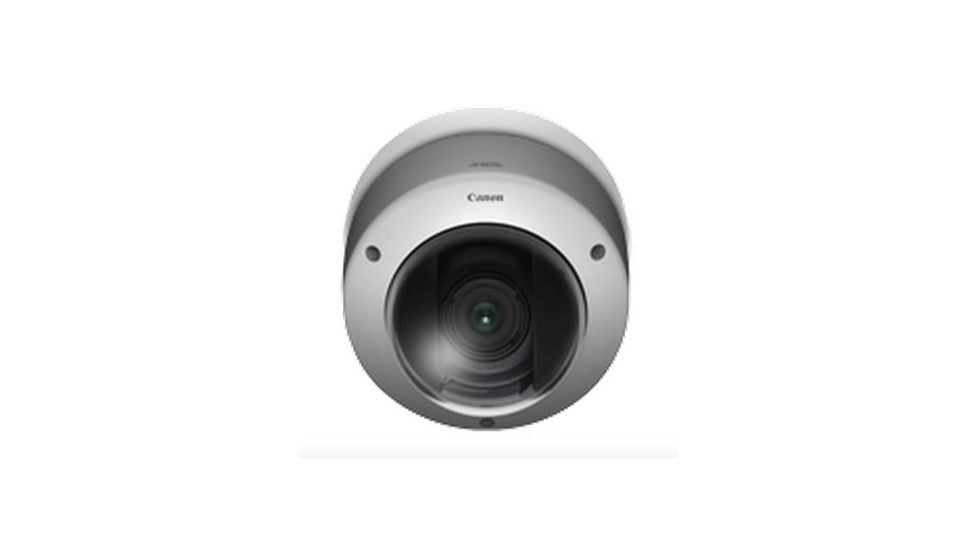

Canon VB-M620D Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960 9908B001
2 of 2 images

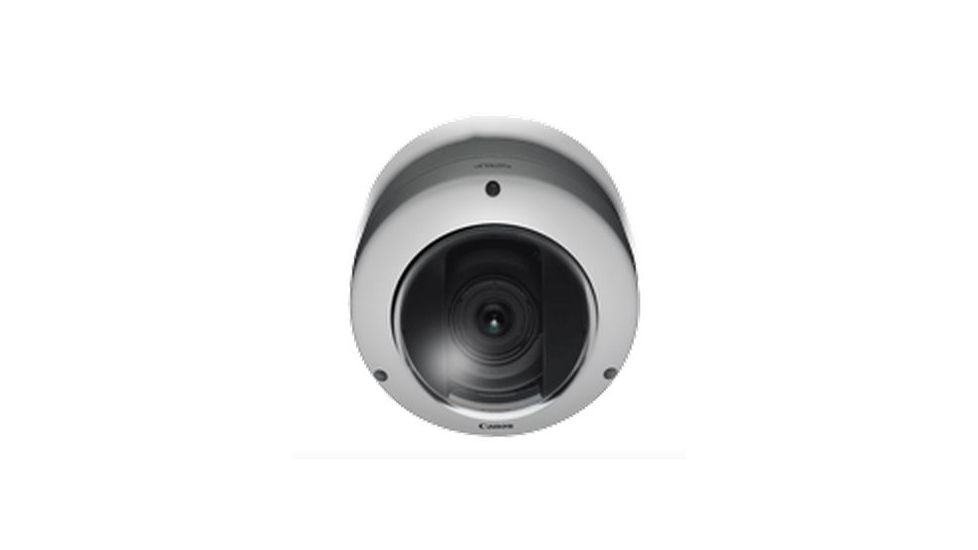

Canon VB-M620VE Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960 9907B001
Tap Tap to Zoom
Questions & Answers
Product Discontinued by Manufacturer
Canon Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960 has been discontinued by Canon and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Security Products yourself to try and find the perfect replacement for you!
Product Info for Canon Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960
Installing and using a surveillance system is incredibly simple when you use the Canon Fixed Dome Network Security Camera with 1.3 Megapixel Resolution 1280 x 960. Fitted with built-in Remote Adjustment Function, this Security Camera from Canon makes positioning your lens and the surveillance area while maintaining outstanding lighting performance and image brightness in all lighting conditions. With simultaneous streaming options as multiple resolutions, the Canon Fixed Dome Network Remote Adjustment Security Camera with 1.3 Megapixel Resolution 1280 x 960 is an excellent option for multi-camera systems. The high quality imaging that's great in low light, the Canon Fixed Dome Network Low Light Security Camera with 1.3 Megapixel Resolution 1280 x 960 is the perfect choice for staying informed about your home or workplace.
Specifications for Canon Fixed Dome Network Mounting Security Camera with 1.3 Megapixel Resolution 1280 x 960:
| IMAGE SENSOR: | 1/3 type CMOS (primary color filter) | |
| NUMBER OF EFFECTIVE PIXELS: | Approx. 1.3 million pixels | |
| ANALOG VIDEO RESOLUTION: | N/A | |
| ANALOG VIDEO STANDARD: | N/A | |
| ANALOG S/N RATIO: | N/A | |
| SCANNING METHOD: | Progressive | |
| LENS: | 3x optical (4x digital) zoom lens (electric drive) | |
| FOCAL LENGTH: | 2.8 (W) - 8.4 (T) | |
| F-NUMBER: | F1.2 (W) - F2.0 (T) | |
| HORIZONTAL VIEWING ANGLE: | 111.0° (W) - 36.5° (T) | |
| VERTICAL VIEWING ANGLE: | 60.1° (W) - 20.5° (T) | |
| DAY/NIGHT SWITCH: | Auto/Manual | |
| I/R CUT FILTER: | Removable | |
| MIN. SUBJECT ILLUMINATION - DAY (COLOR): | 0.3 lux (F1.2, shutter speed 1/30 sec., SSC off, 50IRE); 0.02 lux (F1.2, shutter speed 1/2 sec., SSC off, 50IRE); 0.008 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) | |
| MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME): | 0.015 lux (F1.2, shutter speed 1/30 sec., SSC off, 50IRE); 0.001 lux (F1.2, shutter speed 1/2 sec., SSC off, 50IRE); 0.0005 lux (F1.2, shutter speed 1/2 sec., SSC on, 50IRE) | |
| FOCUS: | One-shot AF/Manual/Fixed at infinity | |
| SHOOTING DISTANCE: | Day Mode, 0.3m (12 in.) - infinity; Night Mode, 1.0m (3.3 ft.) - infinity | |
| SHUTTER SPEED: | 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec. | |
| EXPOSURE: | Auto / Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain) | |
| WHITE BALANCE: | Auto/Light Source (Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp)/ Manual (One-shot WB / R Gain/ B Gain) | |
| METERING MODE: | Center-Weighted/Average/Spot | |
| EXPOSURE COMPENSATION: | 9 levels | |
| SMART SHADE CONTROL: | Auto / Manual / Disable; Auto, 3 Levels; Manual, 7 Levels | |
| AGC LIMIT: | 5 levels | |
| IMAGE STABILIZER: | N/A | |
| PAN ANGLE RANGE: | 350° (±175°) | |
| TILT ANGLE RANGE: | 150° (±75°) | |
| ROTATION ANGLE RANGE: | 350° (±175°) | |
| MOVING SPEED: | Pan 17.1°/sec., Tilt 12.6°/sec., Rotation 25.9°/sec. | |
| VIDEO COMPRESSION METHOD: | JPEG, H.264 | |
| VIDEO SIZE: | JPEG, H.264; 1280x720, 640x360, 320x180, 1280x960, 640x480, 320x240 | |
| VIDEO QUALITY: | JPEG, H.264; 5 levels | |
| FRAME RATE: | JPEG, 0.1 - 30 fps; H.264, 1/2/3/5/6/10/15/30 fps | |
| MAXIMUM FRAME RATE: | JPEG, H.264 (1280x960) 30 fps | |
| I-FRAME INTERVAL: | 0.5/1/1.5/2/3/4/5 sec. | |
| SIMULTANEOUS CLIENT ACCESS: | Max. 30 Clients + 1 Admin Client - H.264 Max. 10 Clients | |
| CAMERA CONTROL: | Administrator, Authorized user, Guest user, Max. 50 user names and passwords registered for authorized users. | |
| ACCESS CONTROL: | User authority (user name and password), Host Access Restrictions(IPv4,IPv6) | |
| ENCRYPTED COMMUNICATIONS: | SSL/TLS, IPsec (Auto Key Exchange/Manual) | |
| IEEE 802.1X: | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP | |
| ONVIF Version: | ONVIF Ver. 2.4 / Profile S | |
| IPv4 PROTOCOL: | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS(Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP(Canon proprietary), ONVIF | |
| IPv6 PROTOCOL: | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon Proprietary), ONVIF | |
| AUTO IP: | Available | |
| AUDIO COMPRESSION METHOD: | G.711 μ-law (64 kbps) | |
| AUDIO COMMUNICATION METHOD: | Full-duplex (two-way) - Echo cancellation function compliant | |
| AUDIO FILE PLAYBACK: | Available (audio files can be played back when an event is triggered by the intelligent function or external device input.) | |
| PRIVACY MASK: | Number of registration - Max. 8 places, Number of mask colors - 1 (select from 9 colors) | |
| VIEW RESTRICTION: | N/A | |
| PRESETS: | Max. 20 positions (Digital) | |
| INTELLIGENT FUNCTION - VIDEO: | Moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection | |
| INTELLIGENT FUNCTION - DETECTION SETTINGS: | Max. 15 | |
| INTELLIGENT FUNCTION - VOLUME: | Volume Detection | |
| EVENT TRIGGER TYPE: | External Device Input, Timer, Intelligent Function (Video), Intelligent Function (Volume) | |
| IMAGE UPLOAD: | FTP/HTTP/SMTP (e-mail) | |
| Temporary storage memory in camera: | Max. approx. 5 MB | |
| Frame Rate: | Max. 10 fps (JPEG), Max. 30 fps (H.264) | |
| EVENT NOTIFICATION: | HTTP/SMTP (e-mail) | |
| ON-SCREEN DISPLAY: | Available | |
| IMAGE CROPPING FUNCTION: | Digital PTZ; Cropping Sizes 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72/640 x 480/512 x 384/384 x 288/256 x 192/128 x 96 | |
| DAYLIGHT SAVING TIME: | Available | |
| NETWORK TERMINAL: | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) | |
| AUDIO INPUT TERMINAL: | Φ3.5mm (Φ0.14 in.) mini-jack connector (monaural); Switch LINE IN/MIC IN in the setting page; LINE IN x 1 (connect to an amplifier microphone) or MIC IN x 1 (connect to a microphone w/o amplifier) | |
| AUDIO OUTPUT TERMINAL: | Φ3.5mm (Φ0.14 in.) mini-jack connector (monaural)- Connect via an audio interface cable (included); LINE OUT x 1 (connect to an amplifier speaker) | |
| EXTERNAL DEVICE I/O TERMINAL: | Input x 2, Output x 2 | |
| ANALOG VIDEO OUT: | N/A | |
| MEMORY CARD: | MicroSD Memory Card, MicroSDHC Memory Card, MicroSDXC Memory Card Compatible. | |
| Frame Rate: | Max. 1 fps (JPEG), Max. 30 fps (H.264) | |
| TEMPERATURE: | -10°C - +50°C (+14°F - +122°F) | |
| HUMIDITY: | 5% - 85% (without condensation) | |
| PoE: | PoE power supply via LAN connector (IEEE802.3af compliant) | |
| AC ADAPTER: | PA-V17 or PA-V18(100 - 240 V AC) (sold separately) | |
| EXTERNAL POWER SOURCE: | 24 V AC/12 V DC | |
| WITH PoE: | Max. approx. 7.8 W | |
| WITH AC ADAPTER: | PA-V17, Max. approx. 9.8W (100 VAC); PA-V17, Max. approx. 10.2 (240 VAC); PA-V18 Max. approx. 9.4W (100 VAC); PA-V18 | |
| WITH 12VDC: | Max. approx. 8.3 W | |
| WITH 24VAC: | Max. approx. 7.5 W | |
| DIMENSIONS: | Φ186 x 140mm (Φ7.32 x 5.51 in.) | |
| MOUNTING POSITION: | Horizontal / Vertical | |
| WEIGHT: | Approx. 1190 g. (2.624 lb.) | |
| OUTDOOR READY: | No | |
| IP RATING: | N/A | |
| VANDAL RESISTANT: | No | |
| IMPACT RESISTANCE: | N/A |
Features of Canon Fixed Dome Network Wide Angle Security Camera with 1.3 Megapixel Resolution 1280 x 960:
- Low profile design
- Genuine Canon 111° Wide Angle Lens with 4x digital zoom, 21.3 Megapixel Resolution (1280 x 960) and Canon's advanced DIGIC DV III Image Processor for crystal clear images
- Remote Adjustment Function
- Exceptional low light performance
- ONVIF 2.4 / Profile S conformant
- Choice of simultaneous streaming options for video with both M-JPEG and H.264 Codecs in multiple resolutions (720p and 4:3 category video sizes)
Package Contents:
- Canon Fixed Dome Network Low Profile Security Camera with 1.3 Megapixel Resolution 1280 x 960
- VB-M600D Network Camera
- Installation Template
- Power Connector
- Setup CD-ROM
- Installation Guide
- Audio Cable
- Warranty Card
- Safety Wire
