Product Discontinued by Manufacturer
Celestron CGEM DX 1100 11 inch Computerized Telescope has been discontinued by Celestron and is no longer available. Our product experts have helped us select these available replacements below.

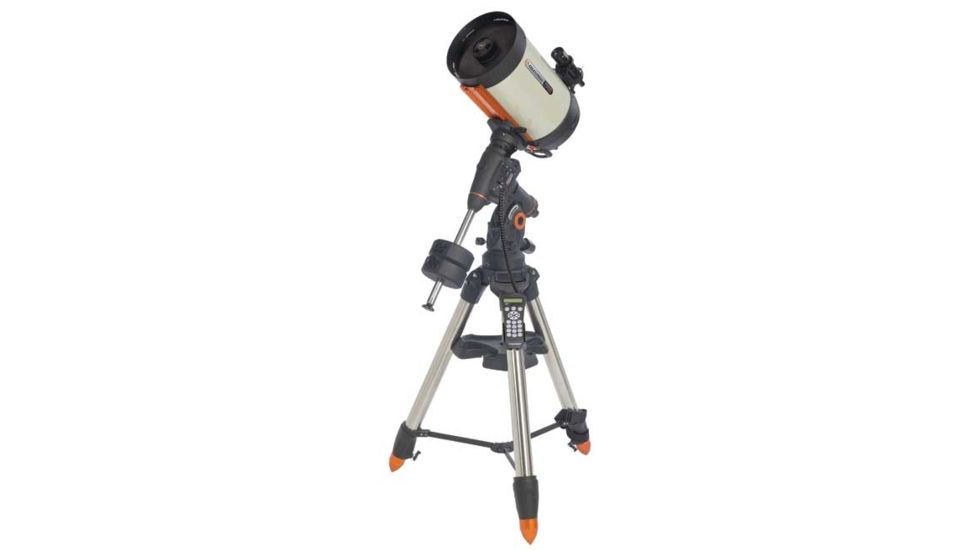

Product Info for Celestron CGEM DX 1100 11 inch Computerized Telescope
Celestron 11" Schmidt-Cassegrain CGEM DX 1100 Telescope 11000 utilizes the power of computers to make the most of sky observation. The GGEM DX 1100 from Celestron features StarBright XLT coatings, 9x50 finderscope, and a computerized telescope mount with 40,000 object database for endless exploration of the sky. The CGEM DX series of Celestron telescopes includes an innovative polar alignment feature called All-Star which calculates and assists with polar alignment to more accurately aim and observe stars. The Celestron CGEM DX 1100 is an impressive computerized telescope that can easily track and target celestial objects, while allowing for easy adjustments thanks to large Altitude and Azimuth adjustment knobs. All things considered, you get a complete telescope package that is built for an unmatched astronomy experience.![]()
Specifications for Celestron DX CGEM 11 inch Schmidt Cassegrain Telescope 11000:
| Optical Design: | 11" Schmidt-Cassegrain |
| Focal Ratio: | 10 |
| Focal Length: | 2800 mm (110.24 in) |
| Aperture: | 280 mm (11.02 in) |
| Finderscope: | 9x50 |
| Mount: | New CGEM DX Computerized Equatorial |
| Optical Tube: | Aluminum |
| Optical Coatings: | Starbright XLT Coatings |
| Eyepiece 1: | 40 mm (1.57 in) |
| Magnification 1: | 70 x |
| Star Diagonal: | 1.25 |
| Tripod: | Adjustable, Stainless Steel |
| CD ROM: | NexRemote control software with RS232 cable |
| Power Supply: | Car battery adapter |
| Highest Useful Magnification: | 661 x |
| Lowest Useful Magnification: | 40 x |
| Limiting Stellar Magnitude: | 14.7 |
| Resolution (Rayleigh): | 0.5 arcsec |
| Resolution (Dawes): | 0.41 arcsec |
| Light Gathering Power: | 1600 x |
| Angular Field of View: | 0.71 ° |
| Eyepiece 1 Field of View: | 0.71 ° |
| Secondary Mirror Obstruction: | 3.75 in (95.25 mm) |
| Secondary Mirror Obstruction by Area: | 11.6 % |
| Secondary Mirror Obstruction by Diameter: | 34 % |
| Gear: | Steel worm gear and 90 mm pitch diameter brass worm wheel |
| Motor Drive: | Low cog DC Servo motors with encoders, both axes |
| Computer Hand Control: | Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons |
| Slew Speeds: | Nine slew speeds |
| Tracking Rates: | Sidereal, Solar and Lunar |
| Tracking Modes: | EQ North and EQ South |
| Alignment Procedures: | 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align |
| Software Precision: | 24 bit, 0.08 calculation |
| Database: | 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects |
| Power Requirements: | 12 VDC 3.5 Amps |
| GPS: | Optional SkySync GPS Accessory |
| Counterweights: | 1 x 22 lbs |
| Optical Tube Length: | 24 in (609.6 mm) |
| Telescope Weight: | 145 lbs (65.77 kg) |
Features of Celestron CGEM DX 1100 11" Computer Telescope:
- 11" Schmidt-Cassegrain telescope
- CGEM DX Computerized Equatorial Mount
- Schmidt-Cassegrain mechanism that moves the primary mirror to adjust focus is supported by two pre-loaded ball bearings, minimizing the "mirror flop" typical of bushing focus mechanisms
- Celestron's premium StarBright XLT coatings
- 9x50 finderscope to help accurately find objects
- Ultra sturdy 2.75 inch steel tripod with Accessory Tray
- Star diagonal provides more comfortable viewing position when observing objects that are high in the sky
Features of Celestron CGEM DX 1100 Computerized Telescope Mount:
- Secure power plug ensures that the mount's power source is not accidentally disconnected
- 40,000 object database with over 100 user-definable objects and expanded information on over 200 objects
- Proven NexStar computer control technology
- New "All-star" Polar alignment uses any bright star for a quick and accurate Polar alignment
- Software Features include: Mount Calibration, Database Filter Limits, Hibernate, five Alignment Procedures
- Flash upgradeable hand control software and motor control units for downloading product updates over the Internet
- Custom database lists of all the most famous deep-sky objects by name and catalog number: the most beautiful double, triple and quadruple stars; variable stars; solar system objects and asterisms
- Permanent Programmable Periodic Error Correction (PEC) - corrects for periodic tracking errors inherent to all worm drives
- Drive Motors - Low Cog DC Servo motor with integrated optical encoders offer smooth, quiet operation and long life. The motor armatures are skewed to minimize cogging which is required for low speed tracking
- Internal Cable wiring for trouble-free setup and transportation
- Designated six-pin RJ-12 modular jack, ST-4 compatible guide port
- Autoguide port and Auxiliary ports located on the electronic plate for long exposure astrophotography
- Double-line, 16-character Liquid Crystal Display Hand Control with backlit LED buttons for easy operation of goto features
- RS-232 communication port on hand to control the telescope via a personal computer
- Includes NexRemote telescope control software, for advanced control of your telescope via computer
- GPS compatible with optional SkySync GPS Accessory
- Precision machined 40 mm diameter steel Polar shafts supported by multiple tapered roller bearings and ball bearings
Package Contents:
- Celestron CGEM DX 1100 11 inch Computerized Telescope
- 9x50 finderscope Star diagonal
- 1.25 In. 40 mm eyepiece (70x)
- 1.25 In. Visual back
- 1.25 In. CGEM DX Computerized German Equatorial mount
- Rugged adjustable height 2.75In. steel leg tripod with center brace/accessory tray
- Flash upgradeable hand control with 40,000+ object database
- One 22 lb counterweight
- NexRemote Telescope Control Software
- RS-232 cable
- Car battery adapter
