Product Discontinued by Manufacturer
Humminbird ONIX10ci NT SI Combo 409780-1 has been discontinued by Humminbird and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Boating & Marine, Marine Electrical yourself to try and find the perfect replacement for you!

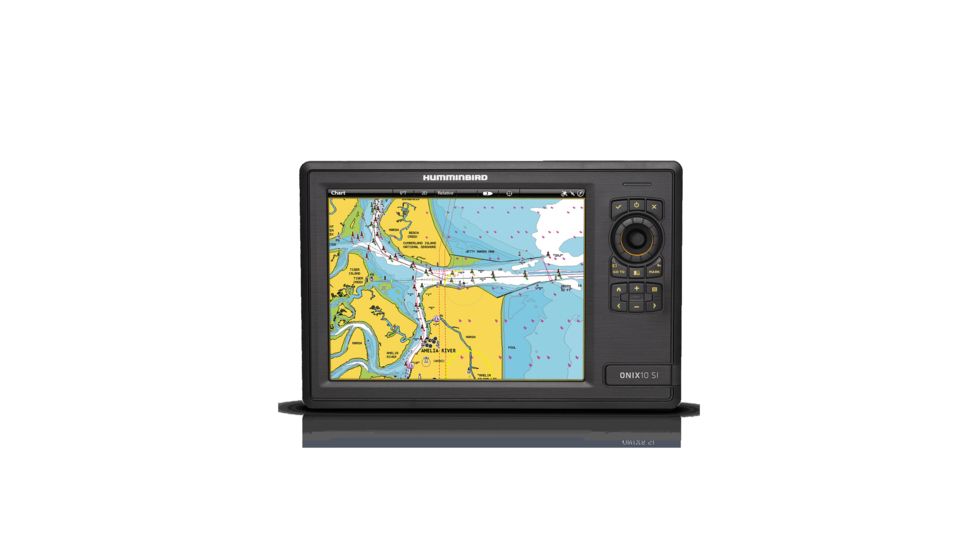

Product Info for Humminbird ONIX10ci NT SI Combo 409780-1
The Onix10ci NT SI Combo features a large 10.4" display with LED backlight. It has HD Side Imaging, HD Down Imaging, and DSP (Digital Sonar Processing) DualBeam Plus sonar with Switchfire with up to 8000 watts PTP power output. GPS Chartplotting with Humminbird TriFuel Cartography that gives you access to world background maps from Navionics, C-MAP and Humminbird LakeMaster. Includes unit cover. Maximize your angling experience with the Humminbird Onix10ci NT SI Combo. This product is keypad control only.
Additional Notes:
- To use an external GPS receiver (AS GRP or AS GPS HS) an AS GPS NMEA is required.
- Optional 50 kHz transducers available for extreme deepwater use*
- To obtain 1000 watts, optional deepwater transducer required
- Optional SM3000 available for deepwater use to 10,000 ft, requires optional purchase of Chirp Ethernet Sonar module.**
Specifications for Humminbird ONIX10ci NT SI Combo 409780-1:
| Display Size - Diagonal: | 10.4" |
| Display Pixel Matrix: | 1024H x 768V |
| Display Type: | Color TFT |
| Display Colors Grayscale: | 16.7 mm Colors |
| Sonar Standard: | HD Side Imaging/HD Down Imaging/DualBeam Plus/Digital Signal Processing (DSP) |
| Standard Sonar Coverage: | 20?, 60?, 75?, 45?, (2) 86? & (2) 55? at -10db (Total of 180?) |
| Standard Sonar Frequency: | 200/83/455/800/50* kHz |
| Sonar Optional: | SM3000** |
| Target Separation: | 2.5" |
| Power Output RMS: | 1000 Watts* |
| Power Output Peak to Peak: | 8000 Watts* |
| Depth Capability: | 150' (SI), 350' (DI), 1500', 5000'* & 10,000'** |
| Temperature: | Built In Transducer |
| Speed: | GPS Speed Included |
| Backlight: | LED |
| Unit Size - Gimbal Mount: | 14" W x 9" H x 4" D |
| Unit Size - Indash Mount: | 12.25" W x 8" H x 4" D |
| Mounting Options: | Gimbal or Optional In-Dash Mounting Kit |
| Transducer Standard: | XT 14 20 HDSI T |
| Transducer Mounting: | Transom |
| Power Input: | 10-20 VDC |
| Power Draw: | 2.5 Amps |
| GPS Receiver: | Included |
| GPS Tracking: | Included |
| GPS Chartplotting: | Included |
| Waypoints, Routes, Tracks/Points: | 5,000, 200, 50/20,000 |
| Humminbird Mapping: | Optional |
| Navionics Gold/HotMaps: | Optional |
| Navionics Platinum+: | Optional |
| Platinum Capable: | Optional |
| C-Map 4D: | Optional |
| 360 Imaging: | Optional |
| i-Pilot Link: | Optional |
| HD Radar: | Optional |
| NMEA 2000: | Included |
| 5 Port Expansion Module: | Optional |
| WeatherSense: | Not Supported |
| Precision GPS: | Included |
| Heading Sensor GPS: | Optional |
| PC Connect: | Not Supported |
| External GPS Receiver: | Not Supported |
| AS Interlink: | Not Supported |
| AIS Compatibility: | Optional |
| SwitchFire Sonar: | Included |
| Screen Snap Shot: | Included |
| Sonar Recording: | Included |
| Humminbird PC: | Included |
| Upgradeable Internal Software: | Included |
| Split Screen Zoom: | Included |
| Split Screen Bottom Lock: | Included |
| 3D Chart View: | Included |
| Large Digits View: | Not Supported |
| Wide/Narrow Cone Split Screen: | Included |
| Custom View Selections: | Included |
| Custom Digital Readout: | Included |
| View Preset Keys: | Not Supported |
| Temperature Graph: | Included |
| Temperature Alarm: | Included |
| Freeze Frame: | Included |
| Instant Image Update: | Included |
| Mark Structure on Sonar: | Included |
| Selective Fish ID+: | Included |
| Real Time Sonar: | Included |
| Triplog: | Included |
| X-Press Menu System: | Not Included |
| Card Reader Available: | Yes |
| # Card Slots: | 2 |
Features of Humminbird ONIX10ci , NT SI Combo 409780-1:
- Broadband Chirp Sonar
- Xtreme Depth
- Digital Signal Processing
- 360 Imaging
- Side Imaging Sonar
- Down Imaging Sonar
- SwitchFire
- DualBeam Plus Sonar
- Internal GPS
- TriFuel Cartography
- Upgradeable Software
- Dual Card Slots
- High Definition Display
- Ethernet
- HD Radar
- AIS
- Auto Pilot
- Camera
- NMEA
- I-Pilot Link
- AutoChart Live
- SmartStrike
- NMEA 2000
- Fusion
- Precision GPS
Package Contents:
- Humminbird ONIX10ci NT SI Combo 409780-1
