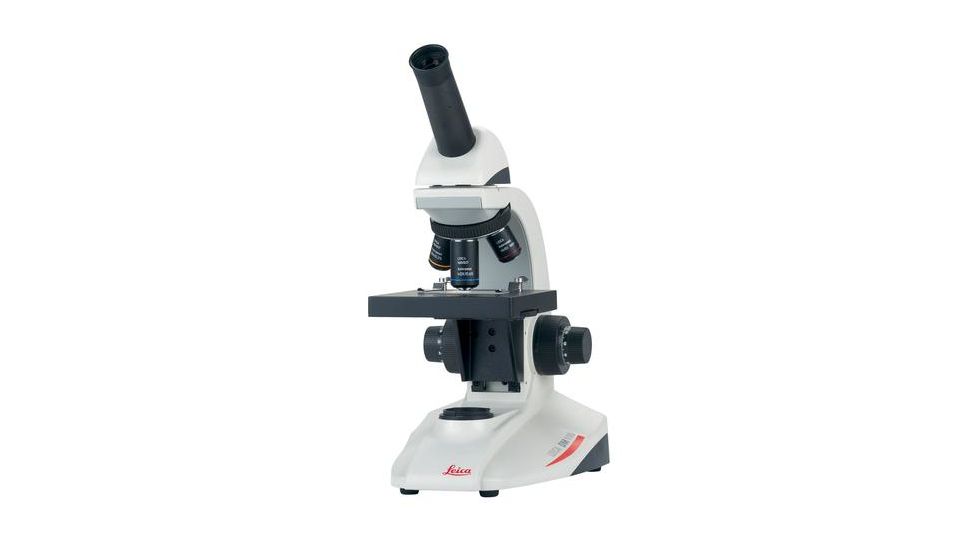

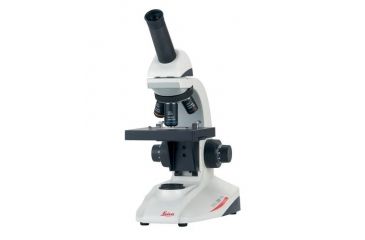

Leica Microsystems DM100 LED Compound Microscope, Monocular, Fixed, 4x, 10x, 40x 13613301
Tap Tap to Zoom
Product Discontinued by Manufacturer
Leica Microsystems DM100 LED Compound Microscope, Monocular, Fixed, 4x, 10x, 40x has been discontinued by Leica Microsystems and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes yourself to try and find the perfect replacement for you!
Product Info for Leica Microsystems DM100 LED Compound Microscope, Monocular, Fixed, 4x, 10x, 40x
Designed to be robust and student-friendly for biology and 2-4 year college life science classrooms, the Leica Microsystems DM100 Entry Level Classroom Microscope 13613301 is a great way to make sure you have an excellent teaching tool for your students. Maintenance-free and sealed with a brass shaft and amazing focus mechanism, this Microscope from the professional scientists at Leica Microsystems uses the same design as their clinical microscopes to provide accurate focus control over the life of the microscope. The EZTube monocular tubes on the Leica DM100 Microscope have integrated eyepieces that prevent loss and provide continuous 360 degree tube rotation for shared viewing and easy storage. The Leica Micro Systems Entry Level DM100 Microscope is made with LED illumination that saves the cost of replacement lamps and provides a cool white light for over 20 years of average use at 80% lower energy consumption. For a great way to make sure you are working with one of the best entry level microscopes the scientific community has to offer, choose the Leica DM100 Entry Level Classroom Microscope.
Specifications for Leica DM100 MIcroscope:
| Size: | 14.3 cm (X) × 13.2 cm (Y) |
| Travel: | 76 mm (X) × 50 mm (Y) |
| Dimensions: | 45 cm × 31.5 cm × 42 cm |
| Weight: | 6.5 kg |
| Leica DM100 Fixed Size: | 13.0 cm (X) x 12.4 cm (Y) |
Features of Leica Microsystems Entry Level Microscope for Students - DM100:
- High eyepoint
- 10×/18 eyepieces fixed
- Available with or without pointer and with a measuring reticle
- Foldable eyeguards
- 23.2 mm mounting diameter
- 45 degree viewing angle
- 10×/18 eyepiece integrated into eyetube
- Attached to stand with 2 set screws
- Rotatable mounting
- Available with and without pointer
- Stand shape protects controls
- Stand construction - die-cast aluminium
- External fuses
- Knurled nosepiece control
- 4 position nosepiece
- Drop in holder for 32 mm mounted or not mounted filters
- Accepts separate 10×/18 eyepieces
- Attached to stand with 2 set screws
- Rotatable mounting
- Left eyetube for binocular tube with diopter focus
- 30° viewing angle for binocular tube
- Interpupillary distance range for binocular tube 52 mm - 75 mm
- Preset field aperture
- LED illumination - 6 000 K temp, 25 000 h life at full intensity
- Continuous intensity adjustment
- Illumination enough for viewing at lowest intensity
- Simple polarizing kit available
- Prefocused and precentered condenser
- Leica DM100 - NA = 0.65 - Disc diaphragm with magnification indicators
- Front loading specimen holder for two standard slides
- Coaxial focus controls
- Self‑adjusting focus mechanism
- 300 microns per fine focus rotation
- Calibrated in 3 micron increments
- cULus, CE, RoHS Certifications
- Affordable entry-level microscope
- Fixed stage with stage clips for accurate manual specimen manipulation
- Pre-centered, pre-focused condenser lens built into the stage for student-friendly operation
- Clearly labeled disc diaphragm for matching aperture with objective for maximum resolution
- Commonly configured with monocular tube for economy
Package Contents:
- Leica Microsystems DM100 LED Compound Microscope,Monoc,Fixed,4x,10x,40x
