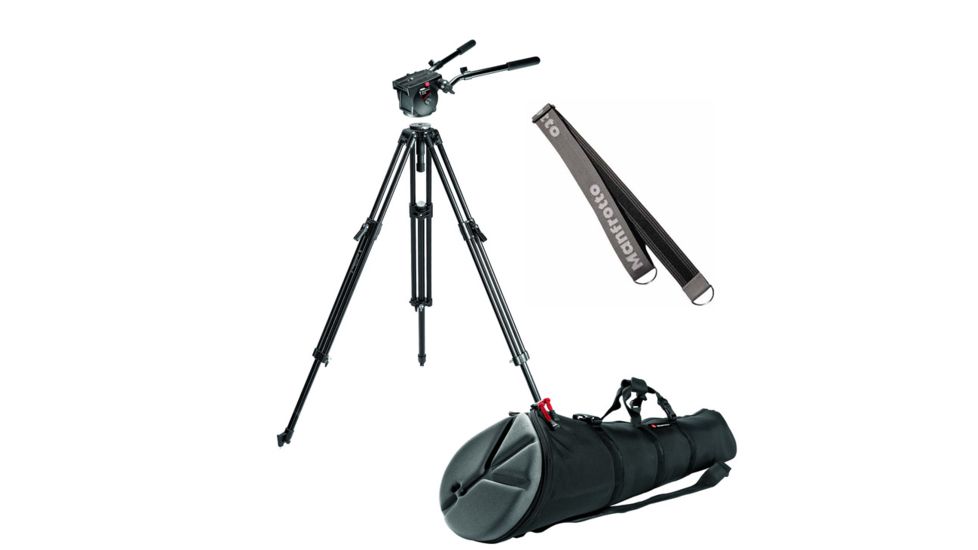

Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag 516-3182
Tap Tap to Zoom
Product Discontinued by Manufacturer
Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag has been discontinued by Manfrotto and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tripod Accessories, Tripods yourself to try and find the perfect replacement for you!
Product Info for Manfrotto 516 Head, 3182 Tripod with 75 mm half-bowl, 3282 Strap and MBAG120P Bag
Manfrotto Video Tripod 75 mm Bowl 1-Stage designed with tandem upper legs and single lower legs with variable angle adjustment and twin spiked feet. This Tripod Accessories by Manfrotto Bogen Tripods is supplied with a 75 mm half bowl attachment. Manfrotto Tripod top spider has a two steps (18° -28°) leg angle positioning system. Legs can be adjusted within a 180° arc to other angle by using a mid level spreader 531SPRB and 530SPRB combined with a set of spike foot shoes 565 in case of unleveled ground or by using a floor spreader code 165MV. Leg locks by a quick lever and stainless steel fittings make this product extremely versatile and easy to use. This Manfrotto Tripod is specifically designed for the latest DV camcorders used by documentary and industrial videographers.
The Manfrotto 516 head is very compact and light but can support cameras up to 10 kg. The Manfrotto Tripod's Head is a cost effective high performance head equipped with fluid cartridges that provide continuous adjustable drag control. This system gives quite a wide range of friction control down to "zero drag" and operates on both pan and tilt axis. Other important features of the head are: separate tilt and pan locking mechanism; a fixed counter balance spring of 7,5 kg load capacity at a center of gravity of 125mm; two telescopic pan handles; a bubble level. The head by Manfrotto Bogen Tripods has been designed so it can be mounted on a fl at base tripod with a 3/8" female thread attachment or by attaching the ART 500BALL to the head base, allowing it to fit a 100mm bowl.
Manfrotto Tripod Bag Padded 47.2" (120 cm) is the largest bag in the range. The MBAG 120P Bag by Manfrotto Bogen Tripods is padded to protect your equipment and has the following features: Asymmetric tapered shape allows you to store the Tripod Accessories with the head attached. Tripod legs fit comfortably in the narrower end (diameter 20cm) and extra space is allowed for the larger volume of the head at the wider end (diameter 23cm). Zip extends down the length of the bag, but also fully opens the top end of the bag. Thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport. Inner pocket holds accessories (such as video head pan bars). Innovative design and style; ballistic nylon, zips and other materials used are of top quality. This Carrying Bag by Manfrotto Bogen Tripods can be hand-carried horizontally by the side handle, vertically by the end handle (also useful for storage), or shoulder-carried using the included strap. Manfrotto Strap For 3282 Series Tripod Bags fit to spring hooks of Manfrotto 3282 series tripod bags.
We offer complete line of Manfrotto Tripods. For our complete selection of products by Manfrotto Bogen Tripods on sale please visit our Manfrotto Bogen Tripods page. For more Tripod Accessories please visit our Tripod Accessories store section.
Specifications for Manfrotto Black 75 mm Bowl 1-Stage Video Tripod With 75 mm Half Ball:
| Manfrotto Black 75 mm Bowl 1-Stage Video Tripod With 75 mm Half Ball | ||
|---|---|---|
| center column: | no center column | |
| closed length: | 36.61 in | |
| color: | black color | |
| head bowl: | 75mm | |
| leg angles: | from 0° to 90° (2 steps at 18° and 28°) | |
| leg cross section: | round | |
| leg sections: | 3 number | |
| legs tube diameter: | 19. 25mm | |
| load capacity: | 44.09 lbs | |
| material: | aluminum | |
| maximum height: | 59.45 in | |
| minimum height: | 33.07 in | |
| suggested dolly: | 114MV - 181B | |
| suggested spreader: | 350SPRB. 530SPRB | |
| suggested spreader 2: | 165MV | |
| weight: | 7.94 lbs | |
| Manfrotto Pro Fluid Video Head With Rapid Connect Plate 357PLV | ||
| additional pan handle: | 519LV | |
| attaches by.: | 1/4" and 3/8" screws attachment type | |
| attachment: | 3/8" female thread attachment type | |
| balance control: | one fix spring for 7.5kg camera weight | |
| bubble spirit level (no.): | 1 number | |
| color: | black color | |
| front tilt: | -60° / +90° tilt range | |
| independent pan lock: | yes | |
| independent tilt lock: | yes | |
| load capacity: | 22.05 lbs | |
| material: | aluminum | |
| maximum working temperature: | -20 | |
| minimum working temperature: | 60 | |
| pan bar positions: | 2 number | |
| pan bars included (no.): | 2 number | |
| pan drag: | continuously adjustable from 0 to max level | |
| panoramic rotation: | 360° | |
| plate type: | 357PLV | |
| quick release: | yes | |
| secondary safety system: | yes | |
| sliding travel of plate: | 3.15 in | |
| tilt drag: | continuously adjustable from 0 to max level | |
| weight: | 4.41 lbs | |
| working height: | 4.92 in | |
| Manfrotto Tripod Bag Padded 47.2in (120cm) | ||
| base diameter: | 7.87 in | |
| color: | black color | |
| diameter: | 230 | |
| length: | 47.24 in | |
| material: | ballistic nylon | |
| weight: | 3.31 lbs | |
Features of Manfrotto Tripod Padded 47.2in (120 cm) Bag:
- Asymmetric tapered shape allows you to store the tripod with the head attached.
- Tripod legs fit comfortably in the narrower end (diameter 20cm) and extra space is allowed for the larger volume of the head at the wider end (diameter 23cm).
- Zip extends down the length of the bag, but also fully opens the top end of the bag.
- Thermoform padding holds the tripod in place in the bag and protects it, especially the head, during transport.
- Inner pocket holds accessories (such as video head pan bars).
- Innovative design and style; ballistic nylon, zips and other materials used are of top quality.
- Can be hand-carried horizontally by the side handle, vertically by the end handle (also useful for storage), or shoulder-carried using the included strap.
Package Contents:
- Manfrotto Black 75 mm Bowl 1-Stage Video Tripod with 75mm Half Ball
- Manfrotto Pro Fluid Video Head With Rapid Connect Plate 357PLV
- Manfrotto Strap For 3282 Series Tripod Bags
- Manfrotto Tripod Bag Padded 47.2" (120 cm)
