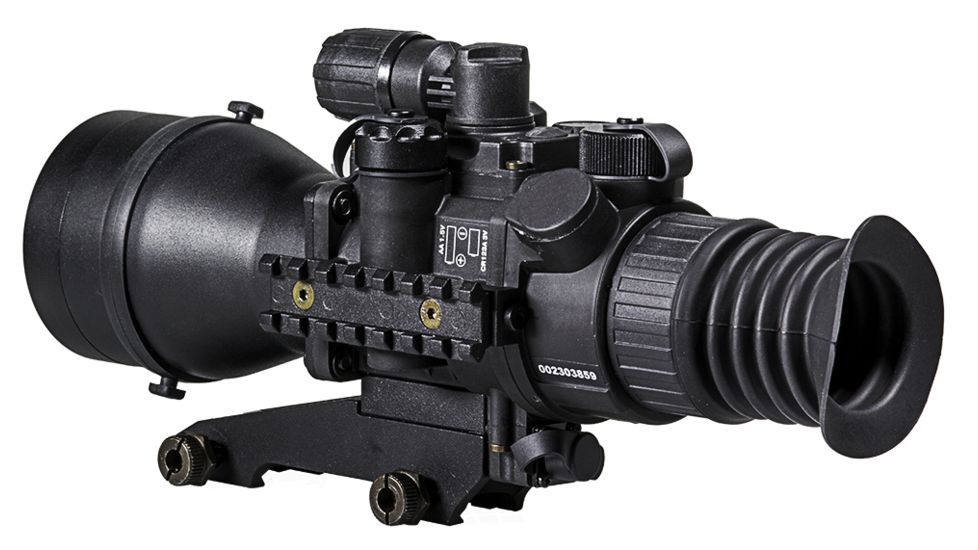

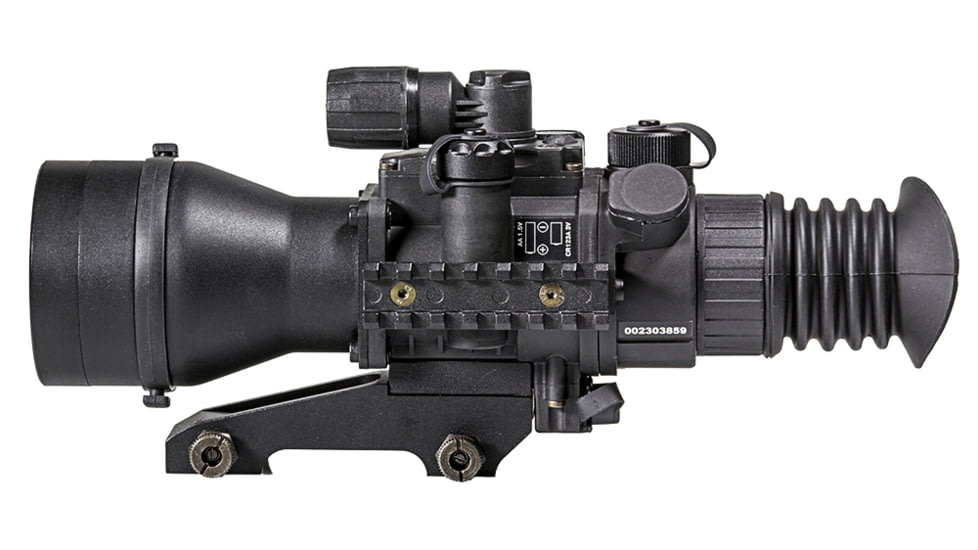

Pulsar Phantom 4x60 MD Gen 3 NV Scope PL76079T
1 of 16 images

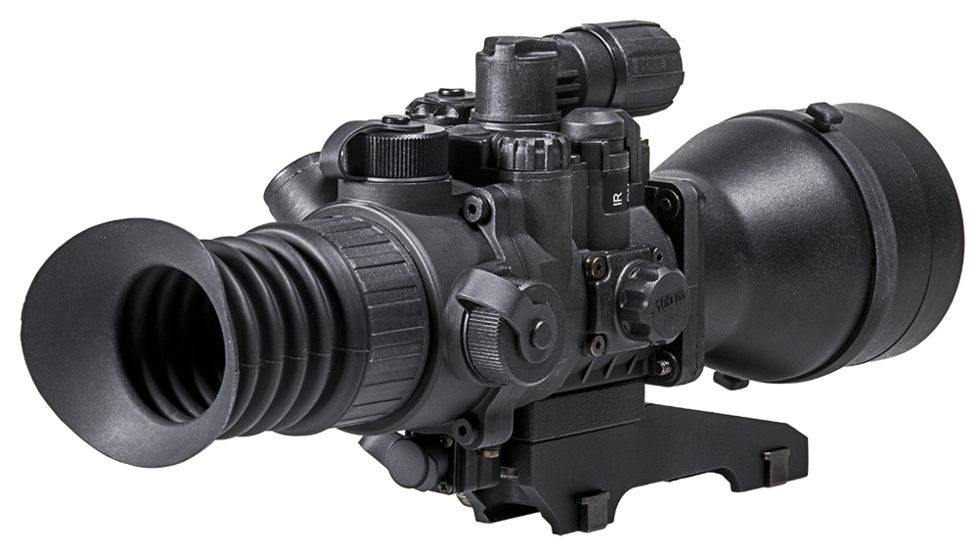

Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
2 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
3 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
4 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
5 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
6 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
7 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
8 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
9 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
10 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
11 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
12 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
13 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
14 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
15 of 16 images
Pulsar Phantom 4x60 MD Gen3 L3 Unfilmed 64-72lp Night Vision Rifle Scope PL76079T
16 of 16 images
Pulsar Illuminated Phantom Thermal Reticle
Tap Tap to Zoom
Documents
Questions & Answers
- Reticle:
- Illuminated Phantom Thermal
Code: ZA-NVR-PL76079T
MPN: PL76079T
UPC: 810119019325

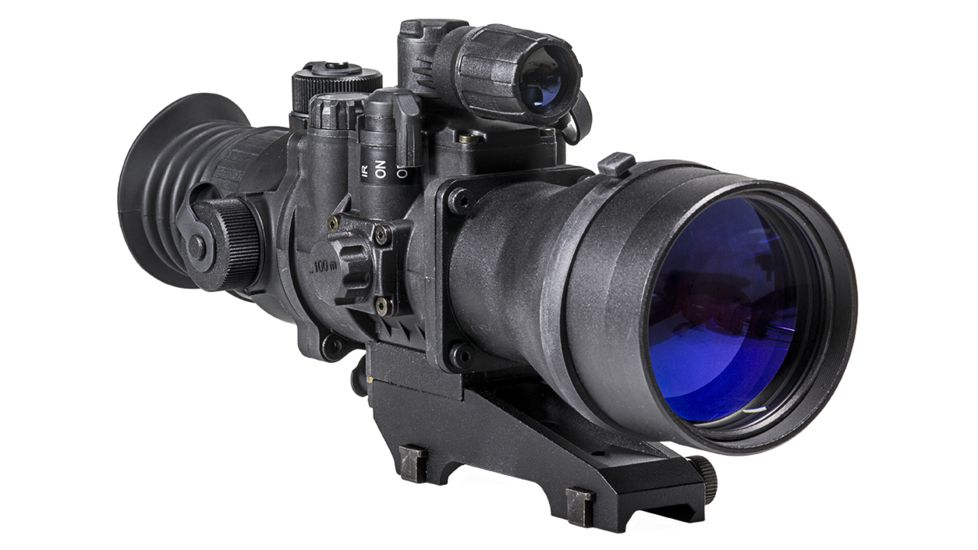

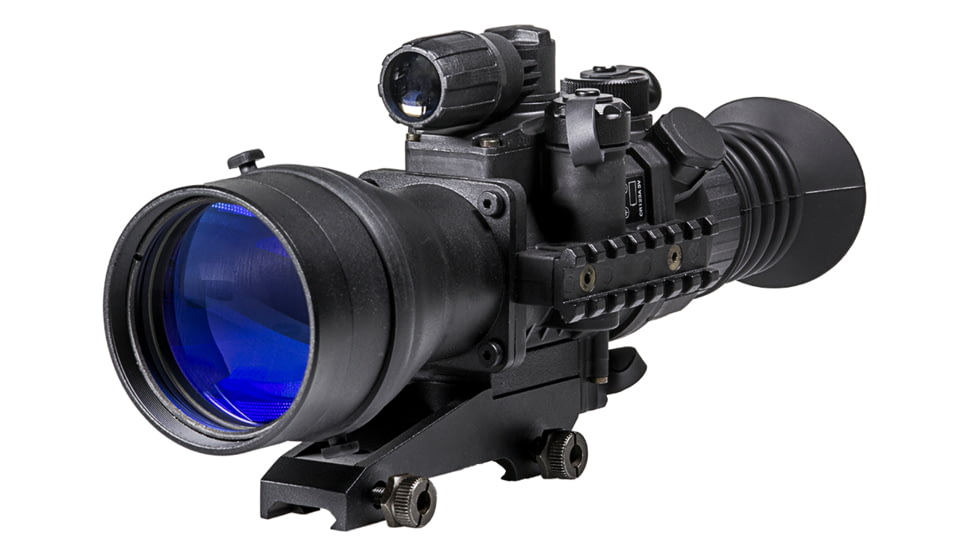

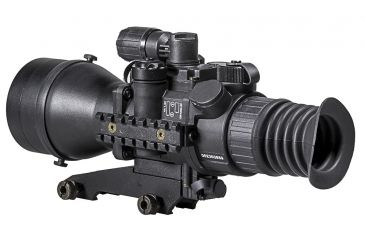

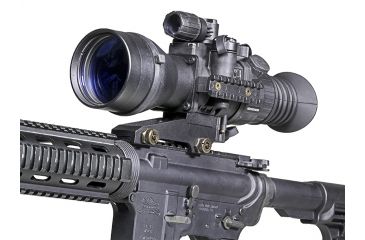

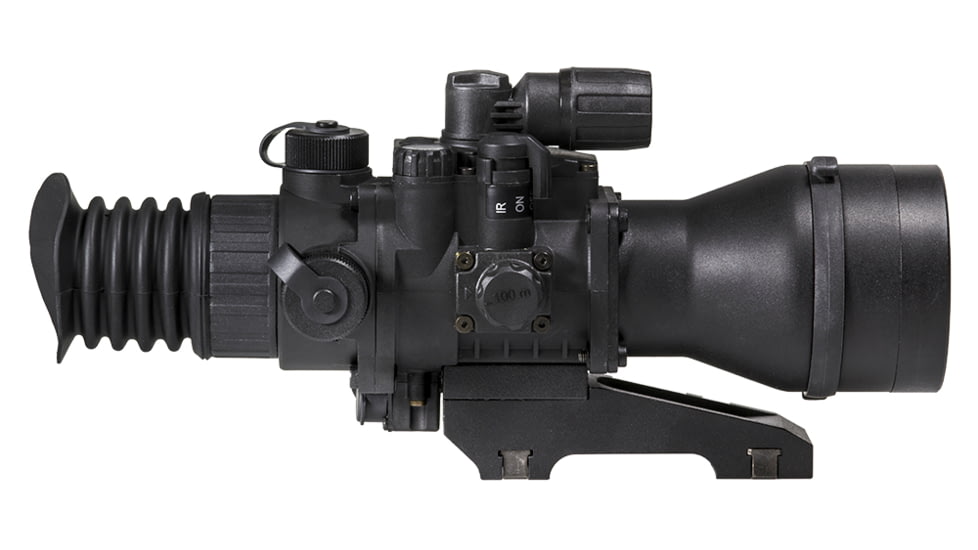

Product Info for Pulsar Phantom 4x60 MD Gen 3 NV Scope
Focus on making your mark with the Pulsar Phantom 4x60 MD Gen 3 NV Scope w/ Mil-dot Reticle. This night vision Rifle Scope engineered by the experts at Pulsar feature an auto-gated, L3 Gen 3 unfilmed image intensifier tube that meets mil-spec specification; provides a higher resolution (64-72lp), gain and photosensitivity over filmed, commercial-grade images. The Pulsar Phantom 4x60 MD Gen 3 L3 Unfilmed 64-72lp NV Scope includes a modular, 100 mW IR illuminator with an 805 nm wavelength, providing exceptional viewing distance and brightness. Wear-resistant and weatherproof, the Pulsar Phantom 4x60 MD Gen3 Shockproof Night Vision Scope is rugged and reliable.
Specifications for Pulsar Phantom 4x60 MD Gen 3 L3 Unfilmed 64-72lp NV Scope:
| Generation: | 3 |
| Image Tube Type: | L3 MX-10160 |
| Useful photocathode diameter , mm: | 18 |
| Photocathode type: | GaAs |
| Integral Photocathode Sensitivity, μm/lm,: | 1800 |
| Signal to Noise Ratio, value, not less than / typical value: | 24.1 |
| Resolution, lines per mm: | 64-72 |
| Gate Type: | Auto-Gated |
| Film Type: | Unfilmed |
| Phosphor: | P43 |
| Magnification: | 4 |
| Lens diameter, mm: | 60 |
| Lens focus, mm: | 101.5 |
| Relative aperture: | 1 |
| Field of View, degrees: | 9 |
| Field of View, m@100m: | 15.7 |
| Minimum focusing distance, m: | 8 |
| Eye Relief, mm: | 50 |
| Exit Pupil, mm: | 7 |
| Diopter adjustment, dptr.: | ±3.5 |
| Focusing type on distance: | Internal |
| IR Wavelength, nm: | 805 |
| Equivalent IR Power, mW: | 100 |
| Range of detection, m(object 1,7m high, illuminatuin level 0,05 lux("1/4 moon"): | 850 |
| Power Supply, V: | 1.5/3 |
| Battery type: | 1xAA/1xCR123 |
| Battery Life (with IR), hour: | 5/8 |
| Battery Life (w/out IR), hour: | 15/24 |
| Reticle Type: | Mil-Dot, red/green |
| Windage & Elevation, 1 click, mm / 100m or MOA: | 13.5 or 1/2MOA |
| Lens Material: | Glass |
| Body Material: | Glass filled nylon composite and duraluminum |
| Type of Accessory Mounting Rails: | Weaver |
| Operating Temp, °С/°F: | -30 to +40/-22 to 104 |
| Level of Protection (acc. to IEC 60529): | IP66 |
| Nitrogen Purged, yes/no: | Yes |
| Remote control: | Yes |
| Length, mm: | 320 |
| Width, mm: | 95 |
| Height, mm: | 103 |
| Weight, oz: | 35.2 |
| Warranty period, year: | 3 |
Features of Pulsar Phantom 4x60 MD Gen 3 NV Scope w/ Mil-dot Reticle:
- Fine image quality and resolution
- Red or green mil-dot reticle
- Shockproof with the use of heavy recoil ammunition
- Nitrogen purged optical path
- IPx6 rating against water intrusion
- Stabilized power supply unit
- Functions with one aa or cr123a battery
- Low battery indicator
- Fast start-up function
- Accurate internal front lens focus adjustment
- Ergonomic design and easy-to-use interface
- Remote control with secure attachment
- Additional weaver mil-std-1913 rail for accessories
- Manufacturing employs carbon plastic and other modern technologies
- Objective lens cover

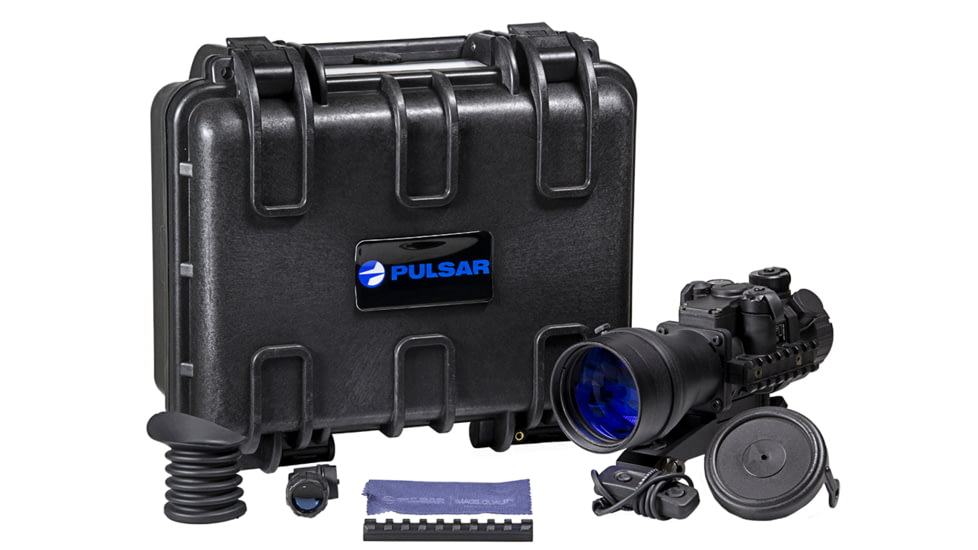

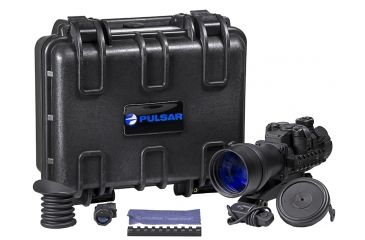

Package Contents:
- Pulsar Phantom 4x60 MD Gen3 Shockproof Night Vision Scope
