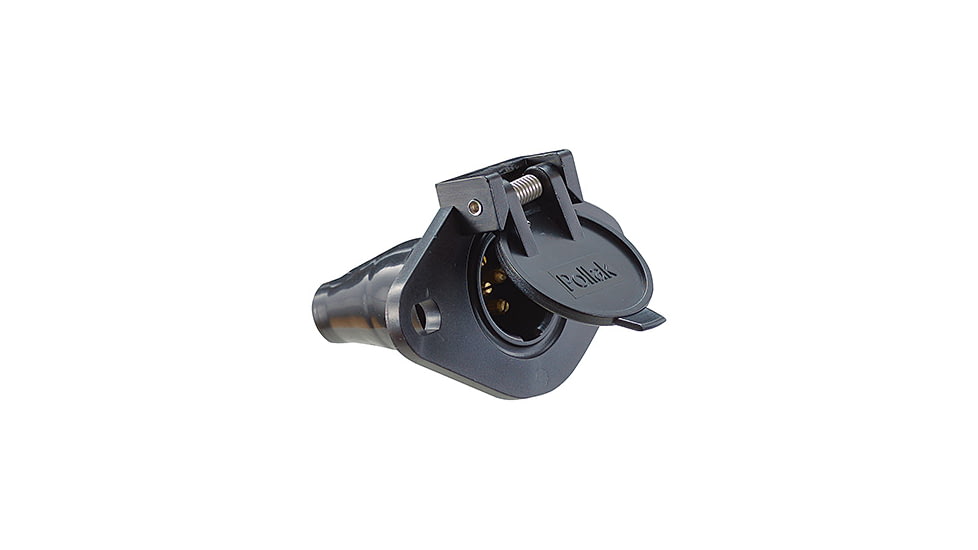

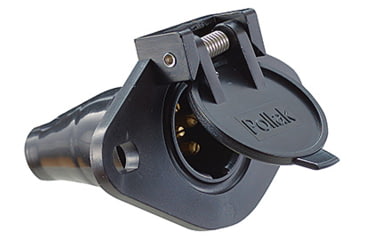

RV Designer P120 6 Way Nylon Socket And Boot

New corrosion resistant ABS plastic 6-Way Socket (Car End) with spring loaded cover. Interchangeable with other 6-way round pin connectors. Rubber boot seals against dust and moisture. 6-Way interiors are secured with a key and keyway to eliminate twisting (disorientation) and breakage with make and break forces that apply in normal function. Terminal Guide: The white terminal pin is the ground return circuit, the brown terminal pin is the tail light circuit, the yellow terminal pin is the left turn circuit, the red terminal pin is the electric brake circuit, the green terminal pin is the right turn circuit and the blue terminal pin is the auxiliary circuit in the center of the socket.

Features of RV Designer P120 6 Way Nylon Socket And Boot

• Interchangeable with other 6-way round pin connectors, Spring loaded cover keeps out debris and dust, Brass terminal pins for best conductivity, terminals accept up to #12 gauge wires, Two 1/4" mounting holes on 6-way sockets, 2-7/8" on center, Mounts through a 1-3/8" hole

Package Contents:

• RV Designer P120 6 Way Nylon Socket And Boot
