KAK .750 Multi Position Dimple Drill Jig

KAK Multi Position Dimple Drill Jig, .750 KAK-DRILL-JIG-750
KAK Multi Position Dimple Drill Jig, .750 KAK-DRILL-JIG-750
1 of 1 images
KAK Multi Position Dimple Drill Jig, .750 KAK-DRILL-JIG-750

Tap Tap to Zoom

Questions & Answers
Does this work for Superlative Arms adjustable gas blocks?

Yes. Superlative Arms is .500

by fsted2a, Verified Owner, November 28, 2021
See 1 More Answer
What size is the drill bit? Where can I just purchase the drill bit? Expert Answer

The KAK .750 Multi Position Dimple Drill Jig drill bit is 3/16x90.

by Hunter, Gear Expert, July 26, 2022
View All Q&A You Have a Question? Ask!
Customer Reviews
Helpful Positive Review
Simple and high quality by Highmaster16, April 6, 2025
I've used this jig on 2 barrels so far and it has worked perfectly on both of them. One thing I really appreciated was the included spot drill. I'm a machinist and was very surprised to see the spot drill was made by YG. YG makes high quality cutting...
Read More...
1/2 found this helpful
Helpful Positive Review
.750 jig for barrel dimpling by clayboy, April 21, 2022
Very pleased with this product in ease of use and final results after gas block installed. Only shortcoming about the product is the provided bit, will not even put a dint in a melonite surface, I had to purchase 2 titanium bits but job was a success...
Read More...
1/2 found this helpful
Helpful Positive Review
Friggin simple by Dan, May 1, 2022
Match to gas block holes, set your set screw and drill, loved it. Review wants me to write more about it, spheres more, and some more yet, and even more yet. C'mon guys it's a jig, not a cure for stupidity, is that enough?
9/9 found this helpful
Helpful Positive Review
Worked on 3 barrels, did not work on Odinworks Stainless by JustaNobody, Verified Owner, March 12, 2023
I used this jig on 3 barrels, but Odinworks has a shoulder that is closer to the gas hole on the barrel, and it will not align with KAK. I bought SLR dimple jig as the gas port hole sits very close to the end of the jig on SLR, and it worked beautifu...
Read More...
2/2 found this helpful
Helpful Positive Review
does what it’s supposed to by steel, Verified Owner, July 8, 2024
This tool does exactly what it’s supposed to, and that’s put a dimple perfectly opposite the gas port on a barrel. It does a good job of that and seems to be a well made part. However I prefer to square the gas block perfectly with the upper it’s goi...
Read More...
1/1 found this helpful
Helpful Positive Review
Great Tool. by Mark, May 17, 2021
I did a dimple job on a Ballistic Advantage barrel I purchased it did not come dimpled. It worked great very solid tool and came with a drill bit. You should ALWAYS I repeat ALWAYS have dimples on your barrel for your gas block screws..
1/2 found this helpful
Read All 34 Reviews
Condition:
New
Color:
Black

Code: 3KE-TJG-MLTP-KAK-DRILL-JIG-750

MPN: KAK-DRILL-JIG-750

UPC: 000028049807

Product No Longer Available

Product Info for KAK .750 Multi Position Dimple Drill Jig

Kak Multi Position Dimple Drill Jigimage

4140 Thru Hardened Steel

Mag Phosphate Finish

For Use With .750 Diameter Barrels

Dimples Barrels For Gas Block Set Screw Spacing Of

.500

.470

.450

.425

.400

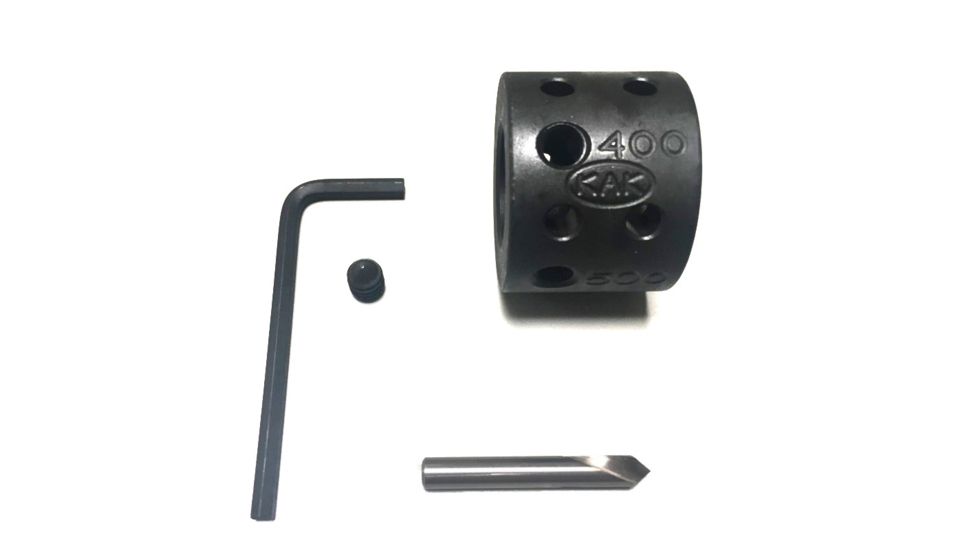

Includes

Drill Jig

Keo Brand Spot Drill

Pointed Set Screw For Alignment

Allen Wrench

Package Contents:

  • KAK .750 Multi Position Dimple Drill Jig
