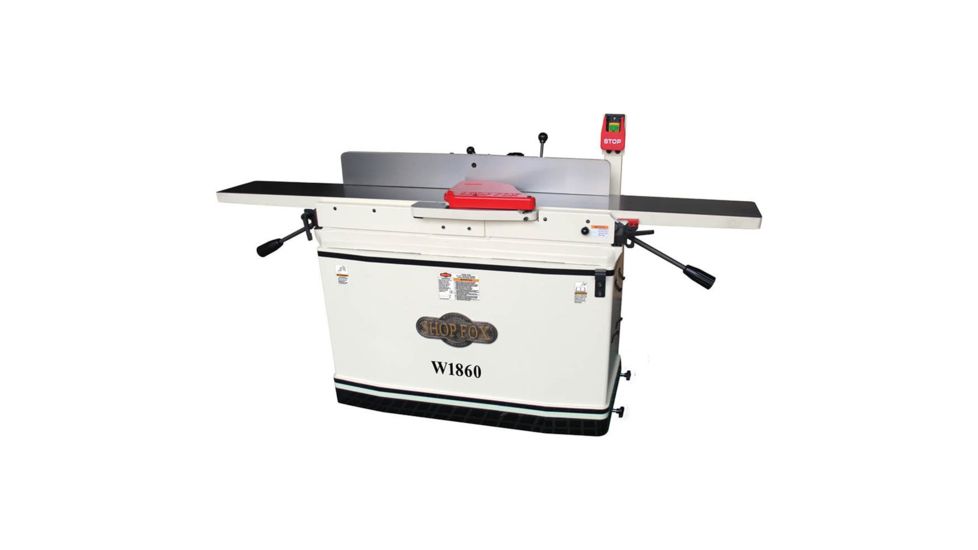

Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base W1860

Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base, 8x76 W1860
Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base, 8x76 W1860
1 of 1 images
Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base, 8x76 W1860

Tap Tap to Zoom

Questions & Answers

Product Discontinued by Manufacturer

Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tools, Hand Tools yourself to try and find the perfect replacement for you!

Product Info for Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base

This 8" Parallelogram Jointers feature extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal mounted switch is conveniently located for easy on and easy off. This version features a spiral cutterhead. CSA certified.image

Features of Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base:

  • Parallelogram table design
  • Lever-adjusted table height with depth gauge
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Precision-ground cast-iron tables
  • Extra long 40" infeed table
  • Powder-coated finish
  • 4" dust port with built-in dust chute
  • Motor: 3 HP
  • 230V
  • single-phase
  • Total table size: 9" x 76"
  • Fence size: 4-5/8" x 38"
  • Maximum depth of cut: 1/8"
  • Rabbeting capacity: 1/2"
  • Cutterhead speed: 5500 RPM
  • Cutterhead diameter: 3-1/16"
  • Cuts per minute: 22,000
  • Number of cutterhead inserts: 36
  • Insert size: 15.0 x 15.0 x 2.5mm
  • Power transfer: Poly V-belt
  • Switch: magnetic push-button switch with large off paddle for safety
  • Fence system: positive stops at +/- 45 degrees and 90 degrees
  • Approximate shipping weight: 298 lbs.
  • CSA certified

Package Contents:

  • Shop Fox Parallelogram Jointer with Spiral Cutterhead and Mobile Base
