Questions & Answers
What do the chevron and hotshot reticle so look like Expert Answer

These Trijicon TA11F-A ACOG 3.5x35 Rifle Scope reticles can be seen in the last images in the product images section on the left side of the page.

by Hunter, Gear Expert, September 12, 2022
Is this product brand new? Expert Answer

Yes. This product will be new and unused.

by Brandon B, Gear Expert, September 10, 2021
Customer Reviews
Helpful Positive Review
This is my first ACOG. It is very clear and bright. The Amber color reticle is much easier to see than Red. My eyesight is rather poor so the very fine small lines that makeup the drop ballistic lines is too small for me to see. Also, they squeez...
Read More...
9/10 found this helpful
Helpful Positive Review
ACOG is the Best by Deer Stalker, Verified Owner, October 22, 2017
From the recommendations I received, I expected the ACOG 3.5x35 to be a great scope! I was not disappointed. It has preformed flawlessly. I have this on on one of my AR15s. I am saving up to get one for my AR10. Makes it twice as much fun to sho...
Read More...
1/1 found this helpful
Helpful Positive Review
Great but be carefu which reticle color you get by Dan, Verified Owner, April 27, 2022
The TA11 is probably the best all-round ACOG in the whole lineup. I live in Florida and really should have guessed the Green reticle is probably not the best option for this biome. This is a fantastic optic and I really have no complaints apart from ...
Read More...
1/1 found this helpful
Helpful Positive Review
Bad Bad Bad by Nick, March 7, 2016
Awsome awsome scope. I can see why people spend the money on these. I was concerned with how big the TA11 was until I saw it. It looks like an average scope and so now I realize that the TA31s are sorta small. Green Chevron is beautiful. Perfect br...
Read More...
1/1 found this helpful
Helpful Positive Review
This is my 2nd Acog. It is well worth the money. I find the bullet drop chevron and lines easy to use. Excellent eye relief allows for easy mounting. The lighted chevron gives me quick target acquisition. MY only complaint is this 2nd Acog came in an...
Read More...
1/1 found this helpful
Helpful Positive Review
TA11F-R by Legacy Reviewer, November 17, 2012
Vary happy with the purchase. The extra eye relief of the TA-11 sold me over the TA-31. If your a nose to charging handle AR shooter the TA-31 might be your choice. Pros: Clarity and eye relief Cons: price
3/3 found this helpful
Read All 12 Reviews
In Stock
2 Models Available
Reticle
All
Illumination Color
All
Included Accessories
All
Search
Click to select this item for your bundle offer!

Buy Together and Save

As low as $1,833.95
You Save Up to 26%
Receive $36.68 OP Bucks

made-in-usa-flag Made in USA

Help support American manufacturing! Marked models of this product have gone through rigorous review and been certified by the manufacturer as Made in the USA.

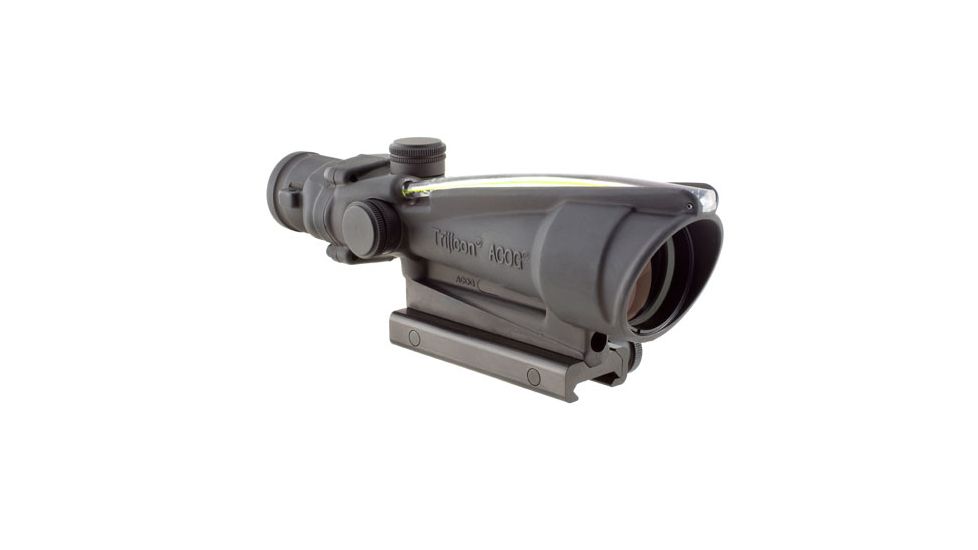

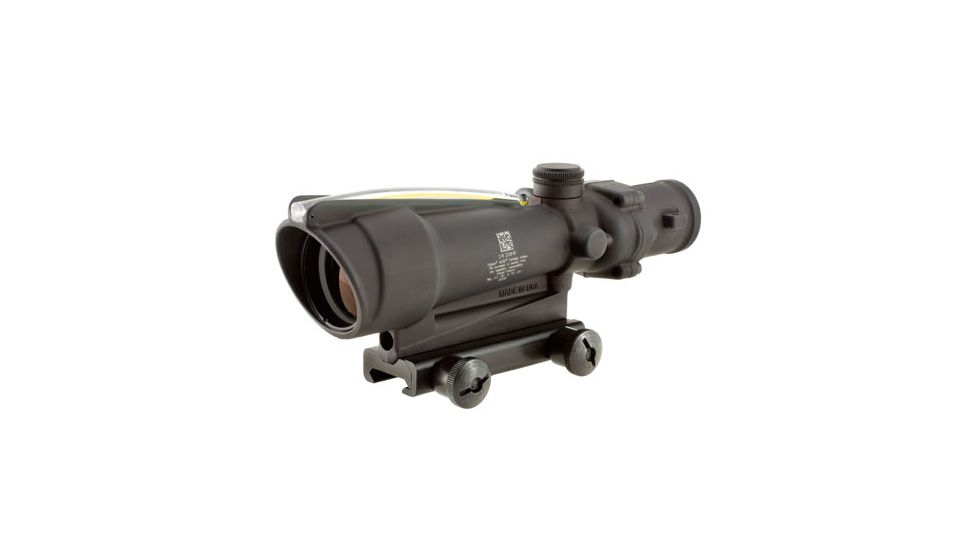

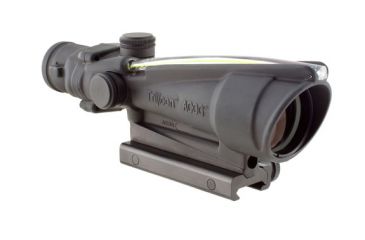

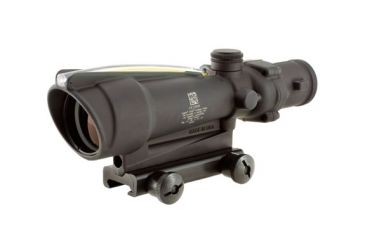

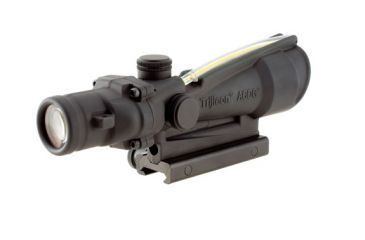

Product Info for Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter

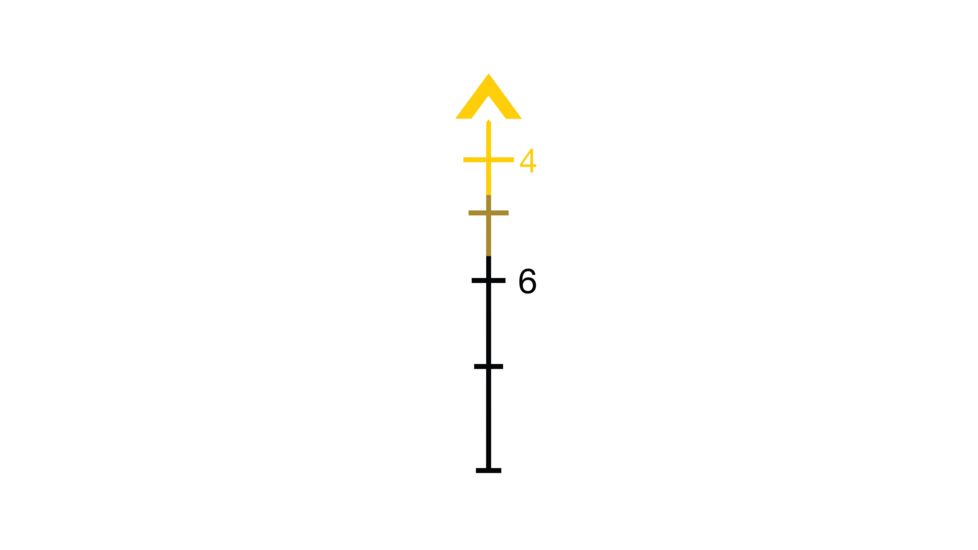

Trijicon TA11F ACOG 3.5x35 Scope with Chevron BAC Reticle includes Trijicon Flat Top Adapter TA51. The ranging reticle of the Trijicon Gunsight is calibrated for 5.56mm (.223 cal) flat-top rifles out to 800 meters. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is 19" at 300 meters. This allows range estimation for silhouette targets. Trijicon TA11F-A 3.5 x 35mm ACOG Advanced Combat Optical Gunsights hit fast in any light. Trijicon ACOG 3.5 x 35 Rifle Scopes are internally-adjustable, compact telescopic sights with tritium illuminated reticle patterns for use in low light or at night. Bindon Aiming Concept (BAC) models feature bright daytime reticles using fiber optics which collect ambient light. Trijicon 3.5x35 ACOGs combine traditional, precise distance marksmanship with close-in aiming speed. Although Trijicon ACOG 3.5 x 35 Rifle Scopes TA-11F have many features which are very advantageous for military use, they were developed by Trijicon without government funding. Designed for use with the M16 family, every feature of its mechanical and optical design was chosen for a single purpose: to provide increased hit potential in all lighting conditions - without failure-prone batteries.image

Specifications for Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter:

Manufacturer: Trijicon
Objective Lens Diameter: 35 mm
Magnification: 3.5 x
Exit Pupil: 10 mm
Finish: Matte
Field of View, Linear: 28.9 ft at 100 yds
Field of View, Angle: 5.5 degrees
Eye Relief: 2.4 in
Color: Black
Weight: 14 oz
Adjustment Click Value: 1/4 MOA
Length: 8 in
Adjustment Type: MOA
Illumination Type: Fiber Optics/Tritium
Fabric/Material: Forged Aluminum
Shockproof: Yes
Fogproof: Yes
Package Type: Polymer Hard Case
Magnification Type: Fixed
Condition: New
Country of Origin: USA
Attachment Type: TA51

Features of Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter:

  • Always On, Always Ready: Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
  • Take Control: Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
  • Rugged, Reliable Housing Design: Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
  • "Both Eyes Open" Design: "Both eyes open" shooting using Trijicon's Bindon Aiming Concept (BAC) feature allows for improved situational awareness.
  • Outstanding Clarity: The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
  • Exact Target Distances & Holds: Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
  • Combat Proven: No other magnified optic has been used more in combat than the ACOG.
  • Shock-Resistant: Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
  • Waterproof: Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

Package Contents:

  • Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter
  • Thumbscrew Flattop Adapter (TA51)
  • 3.5x35 Scopecoat (TA63)
  • LENSPEN (TA56)
  • Lanyard Assembly for Adjuster Caps (TA71E)
  • Trijicon Logo Sticker (PR15)
  • ACOG BAC Manual
  • Warranty Card

Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter Orderable Models

List of Orderable Models

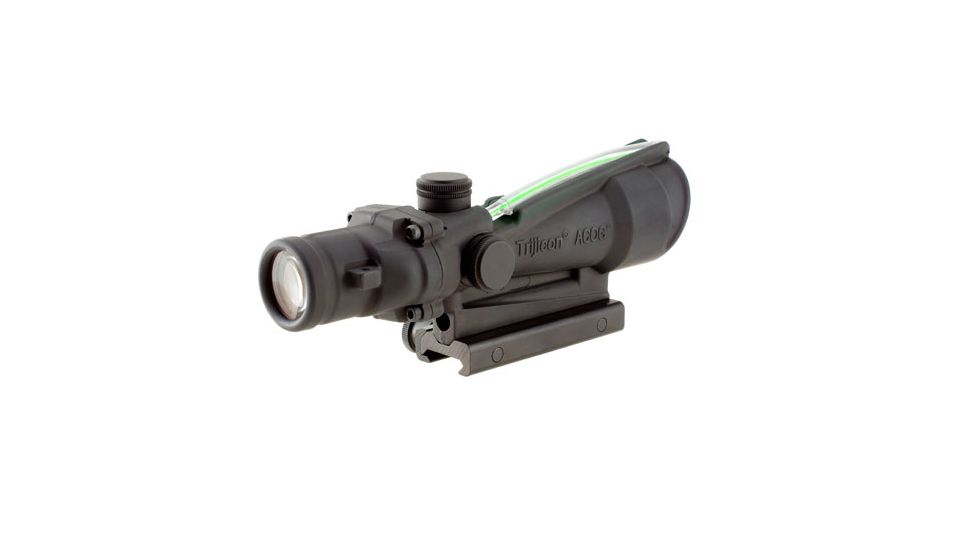

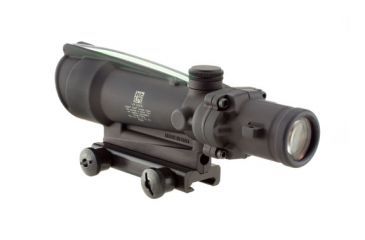

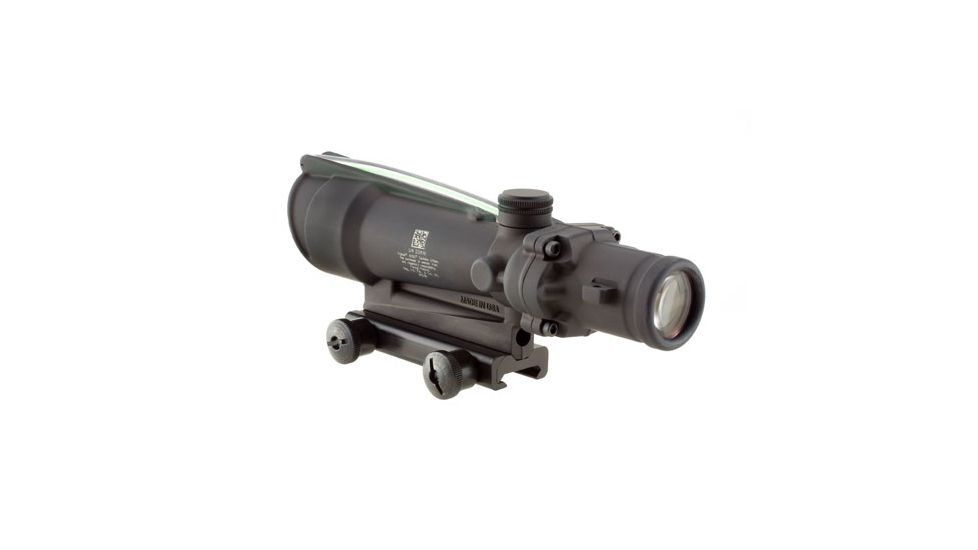

  • Trijicon ACOG 3.5x35 Rifle Scope, Dual Illuminated Green Chevron .223 Ballistic Reticle w/ TA51 Mount , MPN: TA11F-G , UPC: 719307303461 , Code: TJ-RS-TA11F-G
  • Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Amber Chevron BAC .223 Flattop Reticle, Flat Top Adapter , MPN: TA11F-A , UPC: 719307301320 , Code: TJ-RS-TA11F-A

Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Chevron BAC .223 Flattop Reticle with Flat Top Adapter Unavailable & Discontinued Models

List of Unorderable Models

  • Trijicon ACOG 3.5x35 Rifle Scope, Dual Illuminated Red M249 Chevron .223 Ballistic Reticle w/ TA51 Mount , MPN: TA11F-M249-KIT , Code: TJ-RS-TA11F-M249-KIT
  • DEMO, Trijicon ACOG 3.5x35 Rifle Scope, Dual Illuminated Green Chevron .223 Ballistic Reticle w/ TA51 Mount , MPN: 100149-DEMO , Code: TJ-RS-TA11F-G-DEMO
  • Trijicon ACOG 3.5x35 Rifle Scope Kit, Dual Illuminated Green Chevron .223 Ballistic Reticle w/ TA51 Mount , MPN: TA11F-G-KIT , Code: TJ-RS-TA11F-G-KIT
  • Trijicon TA11F-A ACOG 3.5x35 Rifle Scope - Amber Chevron BAC .223 Flattop Reticle, Flat Top Adapter, FREE Multi-Plier 1471 , MPN: TJ-RS-TA11F-A-KIT2 , Code: TJ-RS-TA11F-A-KIT2
