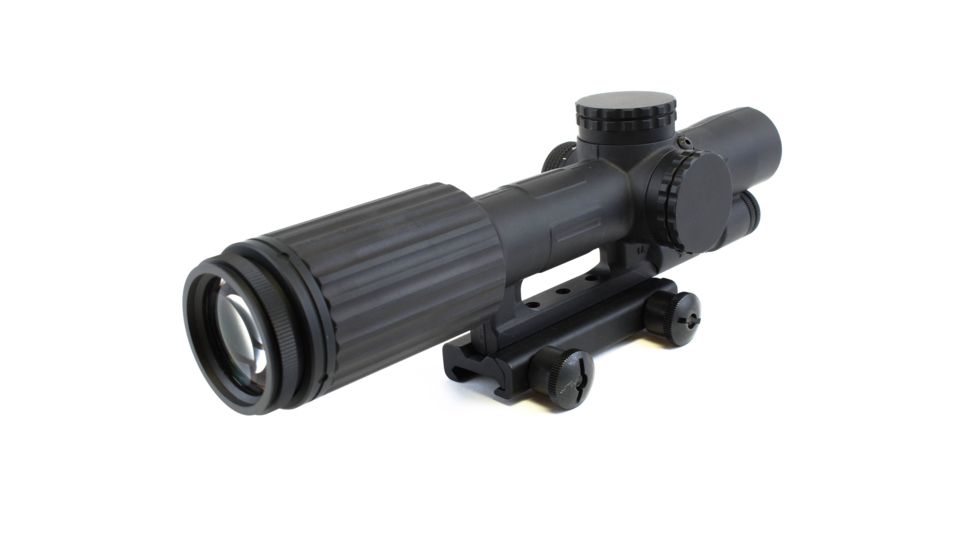

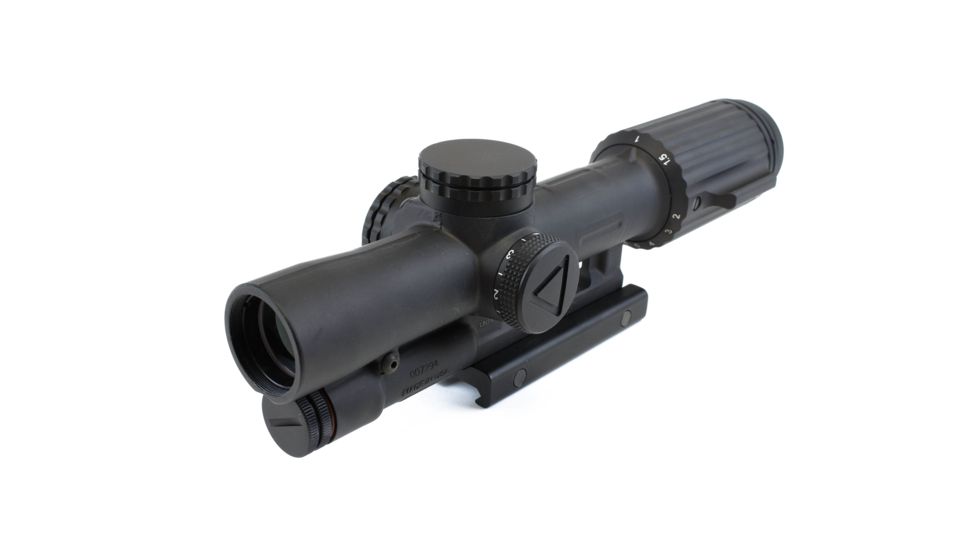

Trijicon VCOG 1-6x24mm Red Segmented LPVO Rifle Scope, Integrated Mount, First Focal Plane (FFP), Color: Black
w/ Free Shipping — 11 models
The clearance between the battery compartment and the top of the picatinny rail is about .253”. Unfortunately it is not quite enough for the 45 degree offset RMR mount to fit. However the 45 offset mount will fit under the eyepiece end of the VC16-C-1600040.
Only item negative is that you don’t give a dust cover with a 2500 dollar scope but give one with a 1000 dollar scope. Don’t be so cheap. This thing cost more than the rifle. And don’t tell me how much I need to say either. Thanks
I got a real good price for the VCOG luminated mil sight with the Bobro/Trijicon QD mount. The mount is rock solid and the glass is REAL NICE and clear! It will be nice using AA batteries instead of CR 2032 or CR123. The housing is built like a brick...
Read More...
I really adore my Trijicon VCOG scope. I own the 55gr m193 version and shoot it with hornady 55gr BT FMJ cannelure's I purchase in bulk.
A note to its durability... It has survived multiple drops and is still in perfect condition; not even a mar to...
Read More...
I bought this optic specifically for my new AR-10 I was building. Optic was delivered ahead of the delivery time frame.
Finished the build, mounted the optic. Zeroing was a piece of cake. No issues
This is an awesome scope for people with astigmatism that wants something like a red dot. It's built like a tank. The only thing I didn't like is the water effect it has at 1x, but not a deal breaker. I wish the red led had the same battery life as t...
Read More...
Product Info for Trijicon VCOG 1-6x24mm Red Segmented LPVO Rifle Scope, Integrated Mount, First Focal Plane (FFP)

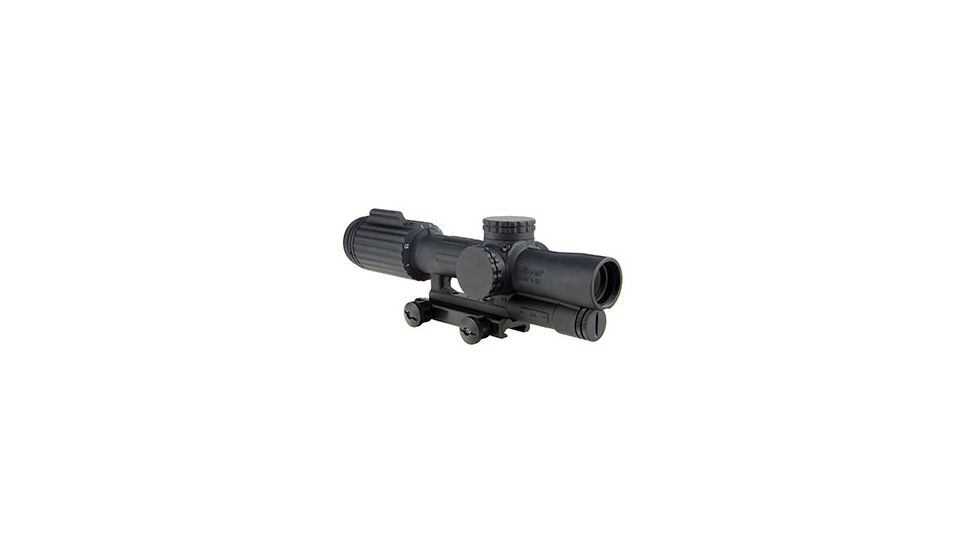

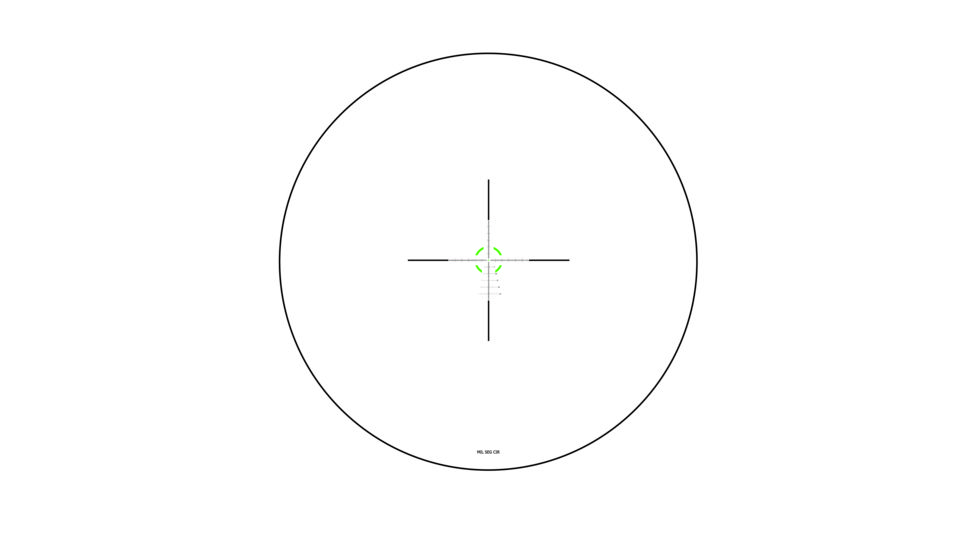

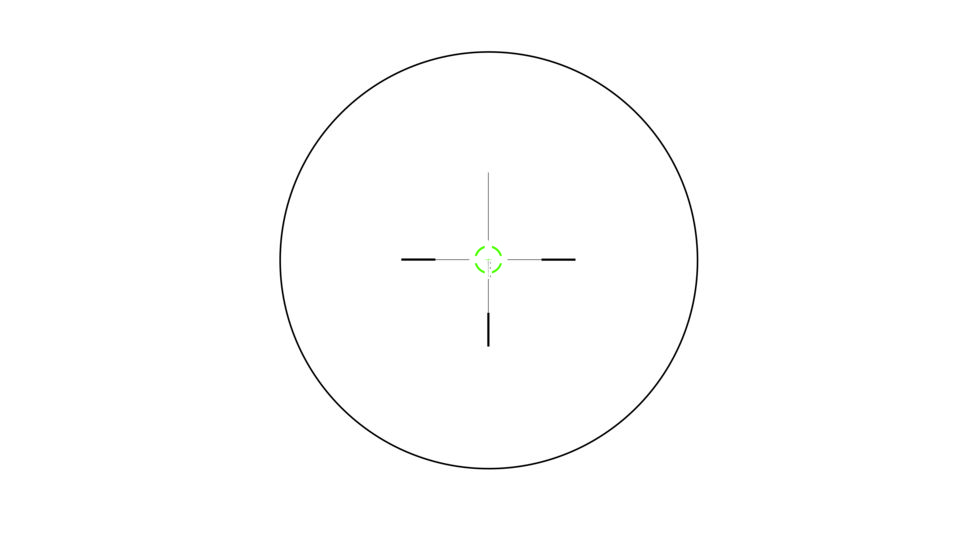

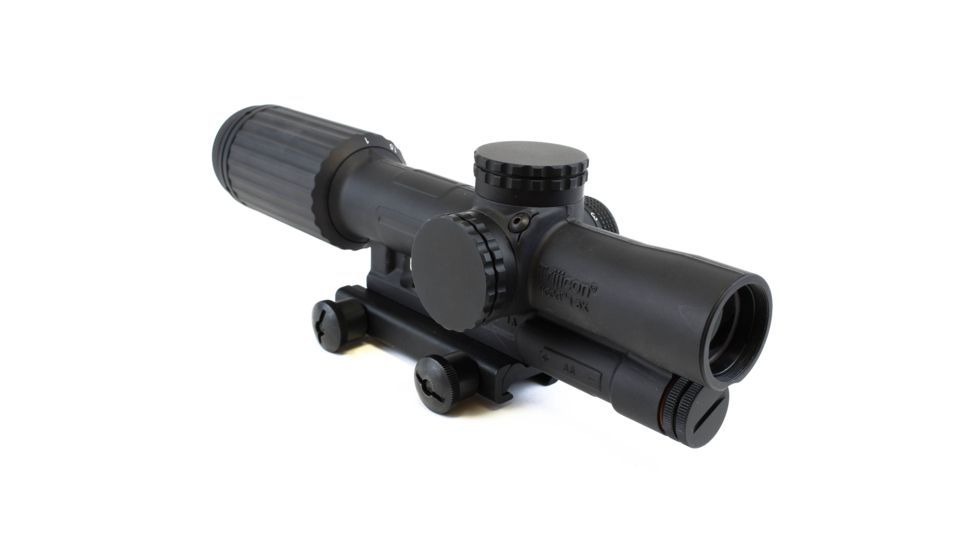

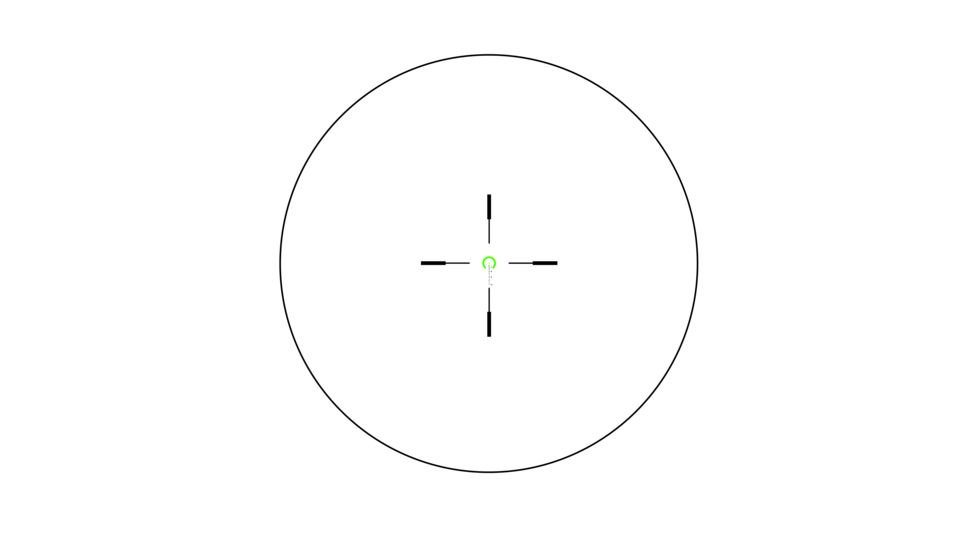

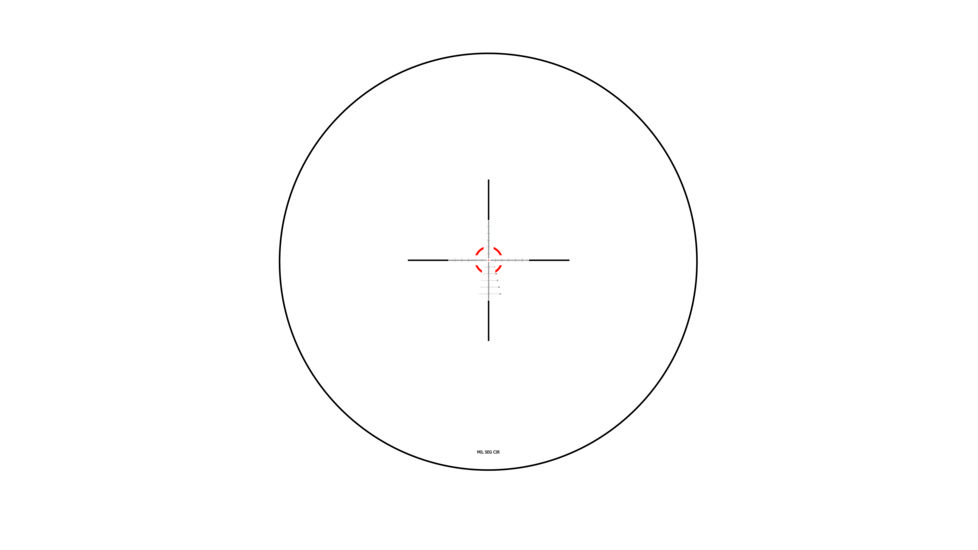

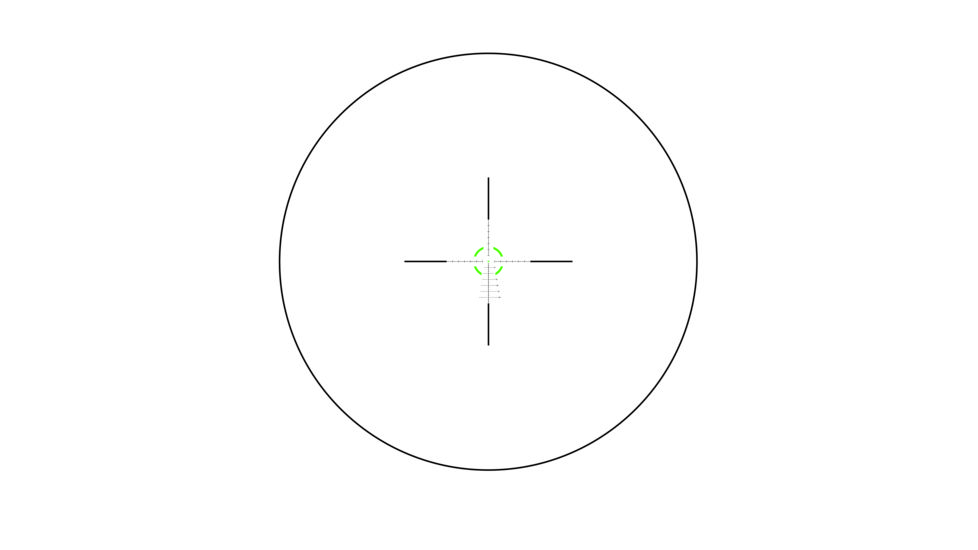

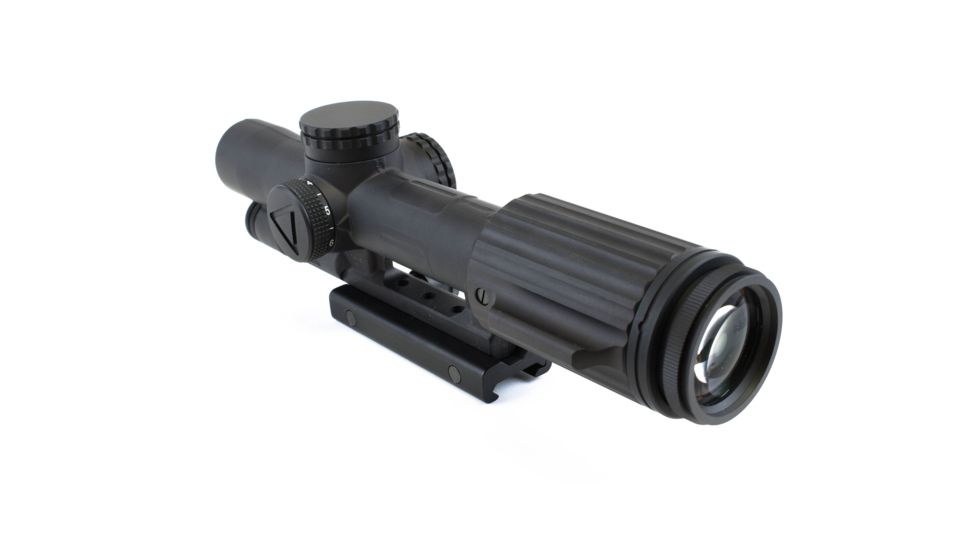

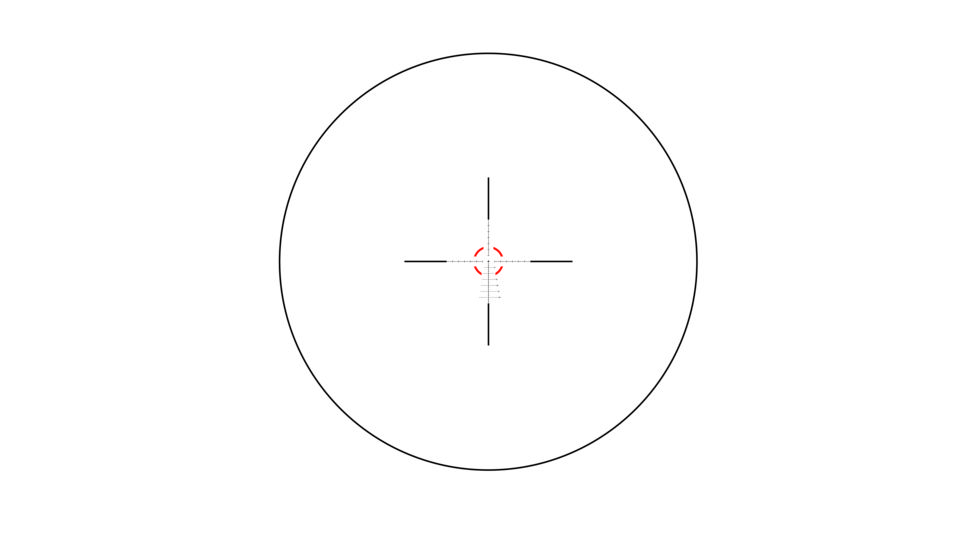

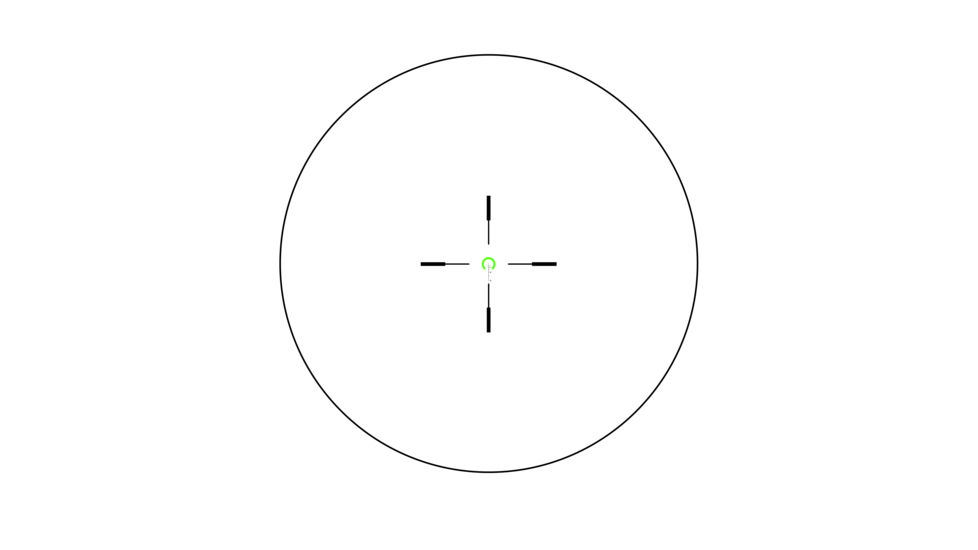

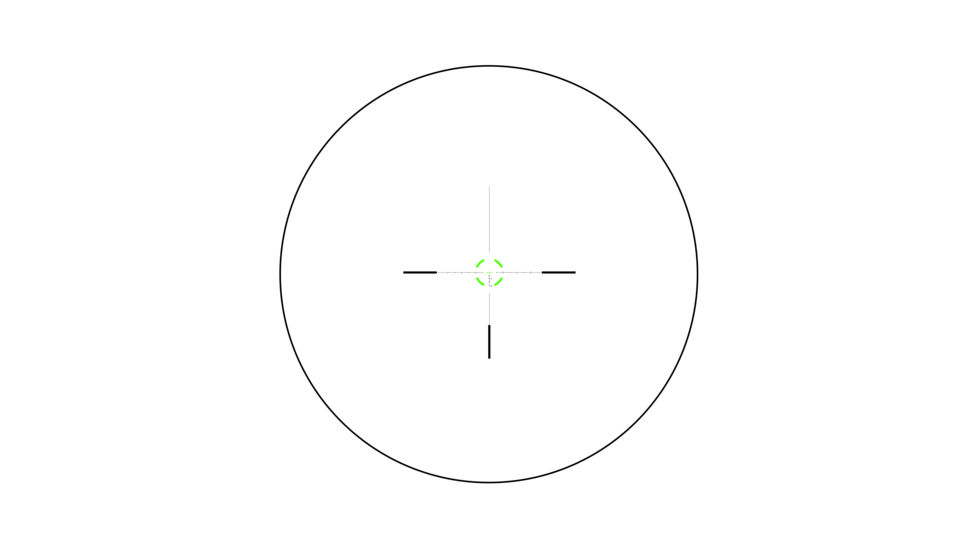

The Trijicon 1-6x24 VCOG (Variable Combat Optical Gunsight) is a rugged variable powered LPVO Rifle Scope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing the VCOG is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application the VCOG utilizes a single AA battery commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided) it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.). Thumb Screw Mount (TA51) 1 Lithium AA Battery 1 LENSPEN (TA56) 1 Trijicon Logo Sticker (PR15) 1 Manual 1 Warranty Card
Specifications for Trijicon VCOG 1-6x24mm Red Segmented LPVO Rifle Scope, Integrated Mount, First Focal Plane (FFP):
Manufacturer:
Trijicon
Objective Lens Diameter:
24 mm
Magnification:
1 - 6 x
Reticle Focal Plane:
First Focal Plane (FFP)
Exit Pupil:
0.15 - 0.41 in
Illumination Color:
Green
Finish:
Matte
Field of View, Linear:
95 - 15.9 ft at 100 yds
Field of View, Angle:
18 - 3 degrees
Eye Relief:
4 in
Color:
Black
Weight:
23.2 oz
Length:
10.05 in
Parallax:
Fixed
Illumination Type:
LED
Battery Type:
AA
Width:
2.51 in
Fabric/Material:
Forged Aluminum
Height:
2.73 in
Brightness Settings:
6
Battery Life:
1400 hours
Shockproof:
Yes
Fogproof:
Yes
Battery Quantity:
1
Package Type:
Box
Included Accessories:
Standard
Magnification Type:
Variable
Attachment Type:
TA51
Features of Trijicon VCOG 1-6x24mm Red Segmented Rifle Scope, Integrated Mount, First Focal Plane (FFP):
First Focal Plane Reticle allows user to rapidly acquire target and apply correct hold throughout magnification range;
Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion;
Rugged forged 7075-T6 aircraft-aluminum-alloy housing provides for a nearly indestructible sighting system;
Illuminated reticle powered by a single AA battery;
Adjustments are easy and precise without requiring tools;
The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system. Compatible with many mounts in the marketplace designed to fit the Trijicon ACOG;
Rugged and durable - tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate service to conditions in the field;
6 user-selectable brightness settings;
Integrated dial fin allows easy rotation through magnification settings;
Constant eye relief distance means no head or stock adjustments throughout entire magnification range;
Waterproof to 20 meters (66 ft);
Dry-nitrogen-filled to eliminate fogging;
Limited Lifetime Warranty. Electronics are warranted for 5 years from date of original manufacture
Package Contents:
Trijicon VCOG 1-6x24mm Red Segmented Rifle Scope, Integrated Mount, First Focal Plane (FFP)
