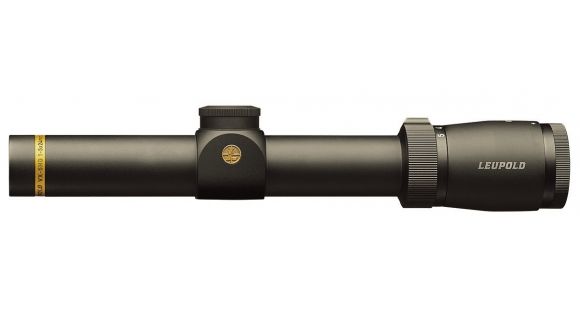

Product Info for Leupold VX-5HD 1-5x24mm Rifle Scope, 30 mm Tube, Second Focal Plane, Black, Matte, Red FireDot Duplex Reticle, MOA Adjustment, 172367

The Leupold VX-5HD 1-5x24mm Rifle Scope, 30 mm Tube, Second Focal Plane, Black, Matte, Red FireDot Duplex Reticle, MOA Adjustment, 172367 Objective Lens Diameter: 24 mm, Magnification: 1 - 5 x, Reticle: FireDot Duplex, Tube Diameter: 30 mm, Reticle Focal Plane: Second Focal Plane (SFP), Exit Pupil: 4.8 mm, Illumination Color: Red, Finish: Matte, Field of View, Linear: 123.2 - 20.4 ft at 100 yds, Eye Relief: 3.7 - 3.82 in, Color: Black, Weight: 13.4 oz, Adjustment Click Value: 1/4 MOA, Length: 10.7 in, Adjustment Type: MOA, Illumination Type: Fiber Optics, Battery Type: CR2032, Fabric/Material: 6061-T6 Aluminum, Lens Material: Glass, Optical Coating: Guard-Ion Rain Shedding, Brightness Settings: 8, Water Resistance Level: Waterproof, Shockproof: Yes, Fogproof: Yes, Battery Quantity: 1, Package Type: Box, Included Accessories: Standard, Magnification Type: Variable, Condition: New, W/E Travel at 100 Yds: 170/170 MOA, Last Chance: Yes. is here at OpticsPlanet with competitive prices 23% Off! Please also check out more options for Leupold VX-5HD 1-5x24mm Rifle Scope, 30mm Tube, Second Focal Plane (SFP).

Purchase your new Leupold VX-5HD 1-5x24mm Rifle Scope, 30 mm Tube, Second Focal Plane, Black, Matte, Red FireDot Duplex Reticle, MOA Adjustment, 172367 from OpticsPlanet today and you will appreciate the easy checkout process, fantastic customer service, Free Shipping policy and information on easily tracking your order.

The VX-5HD is taking optical performance to a whole new level. We gave it a High-Definition optical system for sharpened clarity and the Twilight Max? Light Management System for even greater low-light performance giving hunters a visible advantage at dawn and dusk when the biggest game is on the move. The new CDS-ZL2 (Custom Dial System ZeroLock 2) elevation dial locks in place so it cannot be inadvertently rotated off zero. A mere press of a button will allow the user to dial up two turns of elevation if necessary. On the 2nd revolution of the elevation dial the button sinks in to show you are on the 2nd turn so you can dial for extended ranges and never lose your place. The covered pop-up windage dial provides fast and accurate sight-in and easy rezero. All VX-5HD CDS-ZL2 Rifle Scopes include one free Custom Ballistic Dial with purchase. FireDot illuminated reticles provide daylight bright red dot-like performance with an easy to use 1 button intensity adjustment. 1/4 MOA Finger Click 100% Waterproof and Fog Proof 30mm Maintube Blackened Lens Edges CDS-ZL2 Zero Lock Adjustment with Revolution Indicator Extended Battery Life Extreme Fast-Focus Eyepiece FireDot Illumination Guard-Ion - Rain shedding coating MST (Motion Sensor Technology) Twilight Max Light Management System All Leupold Scopes are designed machined and assembled in the USA. Leupold Lifetime Guarantee

Features of Leupold VX-5HD 1-5x24mm Rifle Scope, 30mm Tube, Second Focal Plane (SFP):

  • 2nd Generation Argon/Krypton Waterproofing: exclusive, proprietary Argon/Krypton gas blend, which nearly eliminates the effects of thermal shock, and reduces the diffusion of gases sealed inside your scope even more than our proven nitrogen technology already does.
  • 30mm Maintube offers incredible strength and allows for the greater range of windage and elevation adjustment.
  • 5:1 Zoom Ratio: Versatile magnification range offers a wide field of view at low power and precise target identification at high power.
  • Crafted from 6061-T6 Aircraft Quality Aluminum.
  • Generous Eyebox allows getting on target faster to take the shot of a lifetime. Even at higher powers, the longer eye relief and generous eyebox provides incredible head position latitude, edge-to-edge brightness, and a full clear sight picture that fills the eyepiece completely.
  • Guard-Ion Rain Shedding Coating is extremely durable, scratch resistant, and sheds water, dirt, and fingerprints.
  • Pop-Up Rezero Adjustments: Pop-up re-zero finger click windage and elevation adjustments assure maximum adjustment range, precision and insant re-zeroing. The adjustment dials can be repositioned to align with the marked zero indicator of the adjustment without changing the adjustment setting of the scope.
  • Twilight Max Light Management System means delivering usable light to your eye and forming a crisp, high contrasting image. Lens coatings are applied that maximize light transmission in blue and red, and balancing colors to develop the highest possible contrast. Glare is controlled with special mechanical structures. This means you can see antler tines in dark shadows long after the competition has gone home.
  • Twin Bias Spring Erector System: The twin bias spring exerts up to 30 percent more holding force on the erector, virtually eliminating erector system backlash and stress on the vital internal workings of the scope, for longer life.
  • Leupold Full Lifetime Guarantee.

Package Contents:

  • Leupold VX-5HD 1-5x24mm Rifle Scope, 30mm Tube, Second Focal Plane (SFP)
  • Bungee Lens Covers
WARNING: California`s Proposition 65

Specifications for Leupold VX-5HD 1-5x24mm Rifle Scope, 30 mm Tube, Second Focal Plane, Black, Matte, Red FireDot Duplex Reticle, MOA Adjustment, 172367

Objective Lens Diameter 24 mm
Magnification 1 - 5 x
Reticle FireDot Duplex
Tube Diameter 30 mm
Reticle Focal Plane Second Focal Plane (SFP)
Exit Pupil 4.8 mm
Illumination Color Red
Finish Matte
Field of View, Linear 123.2 - 20.4 ft at 100 yds
Eye Relief 3.7 - 3.82 in
Color Black
Weight 13.4 oz
Adjustment Click Value 1/4 MOA
Length 10.7 in
Adjustment Type MOA
Illumination Type Fiber Optics
Battery Type CR2032
Fabric/Material 6061-T6 Aluminum
Lens Material Glass
Optical Coating Guard-Ion Rain Shedding
Brightness Settings 8
Water Resistance Level Waterproof
Shockproof Yes
Fogproof Yes
Battery Quantity 1
Package Type Box
Included Accessories Standard
Magnification Type Variable
Condition New
W/E Travel at 100 Yds 170/170 MOA
Last Chance Yes
List: $1,299.99 (Save 23%)
$999.99
Code: LU-RS-VX5D124-172367
MPN: 172367
UPC: 030317013875
