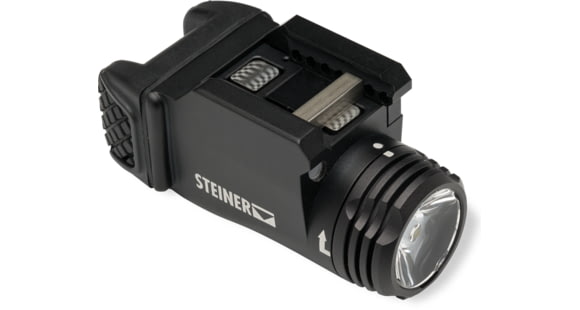

Steiner TOR Fusion Pistol Laser Sight, White/Red, 350 - 470 Lumens, Black, 7005

Combines both white light illumination with

a red or green aiming laser that fits all

pistols.

Features/Specifications:

Description: Miniature high power rail mounted aiming laser and illuminator for pistols

Features:

Type III hard anodized machined aluminum housing, rail mount, and illuminator bezel.

Dust proof and splash proof to IP54.

Available in red (635 nm) or green (520 nm).

The green laser is a direct diode type that, like the red laser, is capable of extreme cold weather operation.

Cool white LED and total internal reflector produces a uniform circular illumination spot plus wide angle flood lighting for situational awareness.

Left and right fire buttons for ambidextrous use.

Universal rail mount. Fits all pistols that have a Picatinny or Weaver rail forward of the trigger guard. The design enables optimum positioning of the laser so that the fire buttons are comfortably located for a wide range of users.

Holster compatible.

A constant power drive circuit ensures that the laser output remains constant throughout the life of the battery.

Low battery indication: If the battery is low and needs to be replaced soon, the laser will flash a quick triple pulse when first turned on and once every 2 minutes.

Windage and elevation bore sight adjustment screws move the laser spot in straight horizontal or vertical paths.

Selectable modes: Press and hold both fire buttons simultaneously, the laser will light up. After one second the laser turns off and the illuminator turns on. After another second, the laser turns on and the illuminator stays on. Continuing to hold both fire buttons repeats the cycle. Releasing the fire buttons locks in the mode and the laser and/or illuminator turns off after a half second. The Fusion remembers the mode setting until reset even if the battery is removed and replaced.

Adjustable laser and illuminator power: Press and hold the fire button when the laser, illuminator, or both are on and it will step through low, medium, high, and high pulse settings, spending a half second at each setting. Release the fire button when the desired setting is reached. The Fusion remembers the power setting for each mode until reset even if the battery is removed and replaced. When the Fusion is in dual mode (both laser and illuminator are on), pressing and holding the fire button adjusts the illuminator; the laser remains in high power.

Optional auto-on. An internal accelerometer senses the guns position. The TOR Fusion turns on when drawn from a holster and brought up level or when picked up from lying on its side and brought up level. The Fusion turns off when put back in holster or set down on its side. Auto-on mode is engaged by pressing and holding one of the fire buttons for more than 3 seconds when the laser is off. After three seconds, the laser will flash a quick double pulse indicating the Fusion is in auto mode. After three more seconds or if the fire button is released and pressed and held for three seconds, the laser will flash once indicating the Fusion is in manual mode.

Boost mode: Double clicking either fire button puts the TOR Fusion into Boost mode. No matter what mode or power level the Fusion was set on previously (including off), it will turn both the laser and illuminator on to maximum power temporarily. After 1 minute, the Fusion will drop back to the previous mode and power level.

Specifications:

Max laser power = 5.0 mW

Max continuous illuminator power = 350 lumen

Boost mode illuminator power = 470 lumen

2.70 in (685.6 mm) long

1.34 in (34.0 mm) wide

1.39 in (35.4 mm) tall

Powered by (1) CR123 battery

Class 3R laser

Features of Steiner TOR Fusion 3R Pistol Laser Sight LED Weapon Light:

• Rugged miliary-grade anodized aluminum housing
• Adjustable windage/elevation
• Universal rail mount
• Waterproof
• Fits surefire x300 holster
• Ambidextrous operation
• Adjustable power levels including white light strobe
• Customizlabe for laser only, light only, or laser/light combo Auto-on function
• Fits all pistols with a Picatinny or Weaver Rail

Package Contents:

• Steiner TOR Fusion Laser Sight
