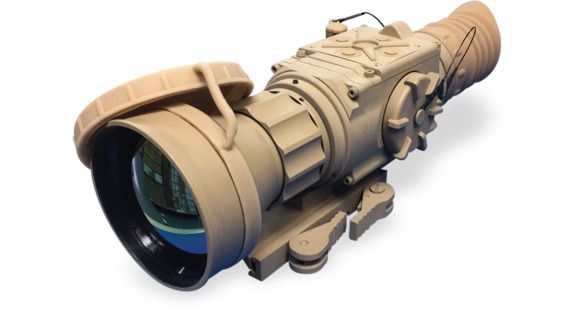

Armasight Zeus 640 3-24x75 Thermal Imaging Rifle Scope, 60 Hz, Tan, TAT166WN7ZEUS32

The FLIR Zeus is a solid-state, uncooled, standalone longwave infrared weapon scope. Reliable thermal imaging allows 24/7 mission capability, making day and night engagements possible with a single weapon sight. Ideal for limited-visibility situations, the Zeus allows you to detect targets through snow, dust, smoke, fog, haze, and other atmospheric obscurants.

Features/Specifications:

SYSTEM OVERVIEW

Dimensions (L x W x H) 291 89 96 mm (11.5 3.5 3.8 in)

Focus Range 10m to inf.

Pixel Size 17 m

Warranty 2 years standard, 3 years with product registration

Height of the Scope Axis above Rail 48 mm (1.89 in)

Magnification 2.7x / 3.2x

Digital Compass -

Digital Inclinometer -

Eye Relief mm 45 mm

Optional Accessories Mil-Standard Hard Shipping/Storage Case #101, AMRF2200 - Advanced Modular Range Finder, Extended Battery Pack, IRIS Wireless Head Mounted Display, HD DVR Digital Video Recorder

Recoil Resistance 700 g

Warranty on Detector 10 Years

Weight w_o Batteries 1.1 kg (2.4 lbs)

Windage Adjustment Range NTSC_ PAL 61MOA / 50MOA

Windage_Elevation Boresight Increment NTSC 0.76 mOA0.22 mils0.8 in/100 yd2.2 cm/100 m

Windage_Elevation Boresight Increment PAL 0.63 mOA0.18 mils0.65 in/100 yd1.8 cm/100 m

ACCESSORIES

Included Accessories Soft carrying Case, Battery Cassette, Packing Box, Instruction Manual with Warranty Card, Two Lithium Battery CR123A, AWReC (Advanced Wireless Remote Control) #94, Picatinny adapter for AWReC (Advanced Wireless Remote Control), Video Cable, Lens Tissue

CONNECTIONS & COMMUNICATIONS

Remote Control Wireless

Video Recording Optional Digital Video Recorder with SD card slot

Analog Input and Output Format resolution NTSC (640 480 pixels) / PAL (768 574 pixels)

ENVIRONMENTAL & APPROVALS

Operating Temperature -40degC to +50degC (-40degF to +122degF)

Storage Temperature -50degC to +70degC (-58degF to +158degF)

IMAGING & OPTICAL

Active Contrast Enhancement Yes

Digital Zoom 1, 2x, 4x, and 8x

Diopter Adjustment Manual

Display Type AMOLED SVGA 060

Smart Scene Optimization Yes

Thermal image palettes White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom

Boresight Retention -

Diopter Adjustment Range 5 diopter

Reticle Type 6-Pattern Digitally Controlled Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair, and No Reticle

Automatic Gain Control AGC Yes

Boresight Accuracy -

Boresight Adjustment Pix_MOA Digitally Controlled

Boresight Repeatability -

Digital Angle Cosine Indicator -

Display Brightness Discretely Adjustable to 8 Levels

Elevation Adjustment Range NTSC _ PAL 46MOA /38MOA

Exit Pupil Diameter mm 10 mm

Field of View angle 8.3deg 6.6deg

Focus Method Manual

Information_Based Histogram Equalization IBHEQ _ SKY_SEA -

Objective F_number 1:1.3

Objective Focal Length 75 mm

Objective Lens Type Germanium

Pixel Array Format 640512

Pixel Display Format 800600

Reticle Color Black, White, Red, Cyan

Second Generation Digital Detail Enhancement DDE _ Sharpness Yes

Silent Shutterless NUC SSN Yes

Type of Focal Plane Array FLIR Tau 2

User_Controlled Manual Non_Uniformity Correction_ Flat_Field Correction UCMNUC_ FFC Yes

POWER

Battery Two CR123A 3V Lithium batteries or CR123 type rechargeable batteries with voltage from 3.0V to 3.7V (2)

Battery life Up to 4 hr (optional up to 12 hrs)

Battery status indicator Yes

Start Up Time 3 sec

External Power Supply 6 VDC/ 600mA

PRESENTATION

Refresh Rate 60 Hz

Features of Armasight Zeus 3 Thermal Imaging Rifle Scope:

• Optical Magnification 2.8x/3.4x
• High-performance thermal imaging camera
• Lightweight and robust design
• Easy to operate
• Manually adjustable eyepiece and objective lens
• Real-time display
• Adjustable display brightness
• Selectable 6-pattern reticle including no reticle option
• Switchable reticle color
• Selectable image palette
• Field environment corrections
• Zoom
• Windage/Elevation boresighting
• Displaying information on the current operating state (battery status, active function etc.)
• Wireless remote control
• Analog video input and output (NTSC/PAL)
• Powered by two standard CR123A batteries.
• Power input capability
• Digital video recorder (optional)
• Fits any Picatinny MIL STD 1913 and Weaver rail with an adjustable quick-release mount
• Serviceability under severe conditions
• Filled with dry nitrogen to prevent internal fogging
• Water Resistant

Package Contents:

• Armasight Zeus 3 Thermal Imaging Rifle Scope
• Objective Lens Cap
• Eyecup
• Mount
• CR123A Lithium Battery
• Advanced Wireless Remote Control (AWREC)
• Picatinny Adapter for Advanced Wireless Remote Control
• Operation and Maintenance Manual
• Hard Shipping/Storage Case
• Battery Cassette
• Video Cable
