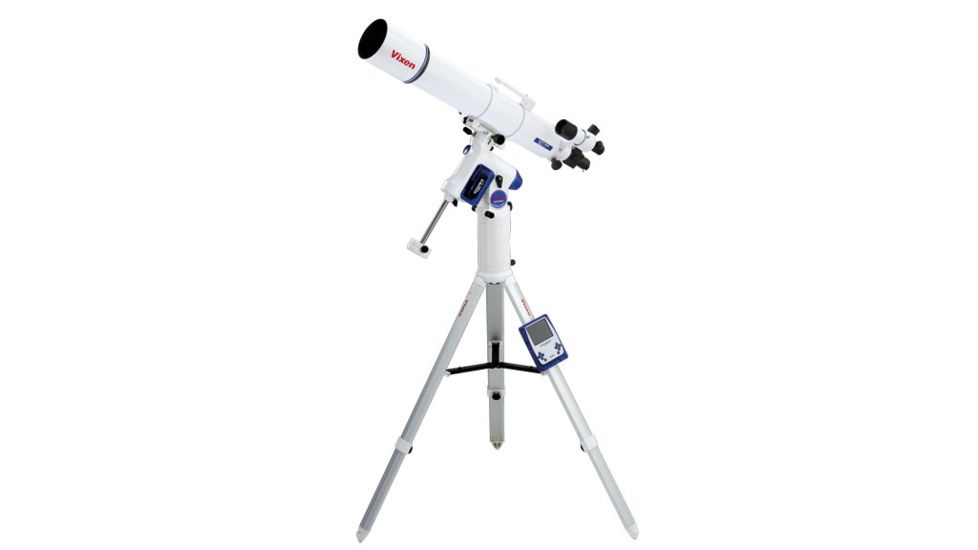

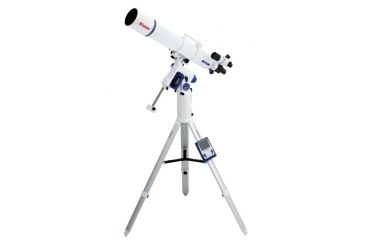

Vixen ED115 Telescope 115mm and Sphinx SXW Mount 95034
Tap Tap to Zoom
Code: VI-TS-95034
MPN: 95034
UPC: 811971014183
Product Info for Vixen ED115 Telescope 115mm and Sphinx SXW Mount
The Vixen ED115 Telescope and Sphinx SXW Mount 95034 has lenses that focuses the full visible spectrum of visible light to a critical point much more accurately than past ED telescopes. The Vixen ED115S lenses are almost free of chromatic aberration in all colors and are critically sharp edge to edge. The astro-photographer will be especially pleased with the high contrast images through this telescope. The newly designed high definition ED lens on Vixen's ED115 95034 gives excellent optical performance with its Extra Low Dispersion glass. Chromatic aberration is virtually eliminated. The vixen telescope corrects false colours almost perfectly when in focus...Pointing the scope at the evening stars showed the optics to be pretty much perfectly corrected". The new ED lenses feature brighter images from the shorter f/7.7 focal ratio to capture crisp, pinpoint star images for your enjoyment. The Vixen ED115S 95034 Telescope lenses are made with environmently friendly technologies, free of hazardous lead that helps to support a cleaner global environment. For a full line of Vixen Telescopes and other products by Vixen on sale please visit the Vixen Telescopes page on our website. For more brand name Telescopes please visit our Telescopes store section.
Specifications for Vixen 115mm Telescope and Sphinx SXW Mount 95034:
| Objective lens: | 4.5 in (115mm) ED Apochromatic, multi-coated |
| Focal length (Focal ratio): | 890mm (F/7.7) |
| Resolving power, limiting magnitude: | 1.01 arc sec., 12.1 |
| Light gathering power: | 270x |
| Tube size & weight: | OD) 4.9 in (125mm) x (L) 37 in (940mm), 9.7 lb (4.4 kg) |
| Adapter thread / visual back: | 60mm, 42mm for T-ring / 50.8mm ], 31.7mm push- t, with Flip mirror diagonal |
| Photography: | Prime focus, Eyepiece projection and Afocal imaging |
Specifications for Vixen Sphinx SXW Equatorial Mount:
| R.A. Slow Motion Axis: | 180-tooth wheel gears whole circle movement |
| DEC Slow Motion Axis: | 180-tooth wheel gears whole circle movement |
| R.A. Coordinates Display: | On the screen of STAR BOOK, 01 min. increments |
| DEC Coordinates Display: | On the screen of STAR BOOK, 01 arc min. increments |
| Polar Axis Scope: | Optional |
| Altitude Adjustment: | 0 degree to 70 degrees (Fine Adjustment with tangent screw |
| Azimuth Adjustment: | Double screw fine adjustment |
| Telescope Controller: | STAR BOOK |
| Power Source: | DC 12 volts |
| Maximum Loading Weight: | 16kg/35 lbs |
| Counterweight: | 1.9 kg/ 4.2 lbs |
| Weight: | 6.8 kg/ 15 kbs (without couterweight) |
Features of Vixen ED115 and Sphinx Mount 95034:
- lenses are designed to focus the full spectrum light
- Pefect for Astro Photography
Package Contents:
- Vixen ED115 and Sphinx SXW Mount 95034
- ED115S with Dual Speed Focuser
- Sphinx Mount and Tripod
- 7x50 Finder Scope and Bracket
- Flip Mirror
- Half Pillar
- NLV25mm Eyepiece
