What is the table length and what is the total weight of the W1755S? Expert Answer

The table dimensions are 55.5"x6". The weight of the unit is 325 lbs.

by Ethan C., Gear Expert, November 9, 2019
View All Q&A You Have a Question? Ask!

Product Discontinued by Manufacturer

Shop Fox 6in Jointer with Spiral Cutterhead has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Tools, Hand Tools yourself to try and find the perfect replacement for you!

Product Info for Shop Fox 6in Jointer with Spiral Cutterhead

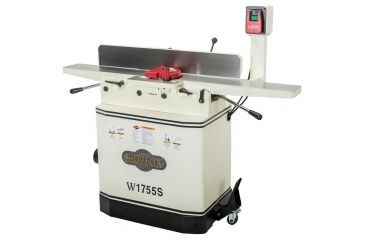

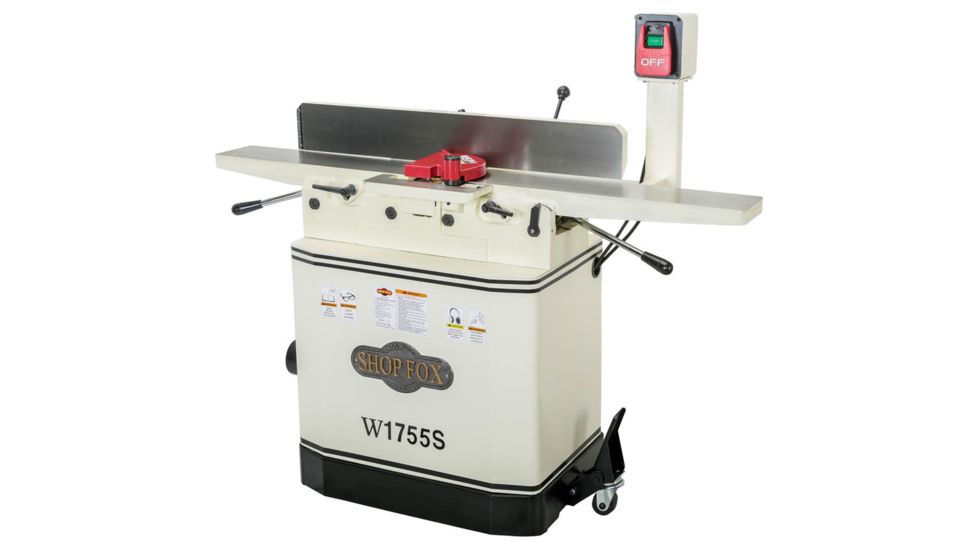

This Shop Fox 6" Parallelogram Jointer is built like a tank and loaded with red-hot features like parallelogram tables, a 4-row helical cutterhead with indexable carbide inserts, and a built-in mobile base. The 120V, 1-1/2 HP motor makes this a real workhorse with a small footprint.image

Features of Shop Fox 6in Jointer with Spiral Cutterhead

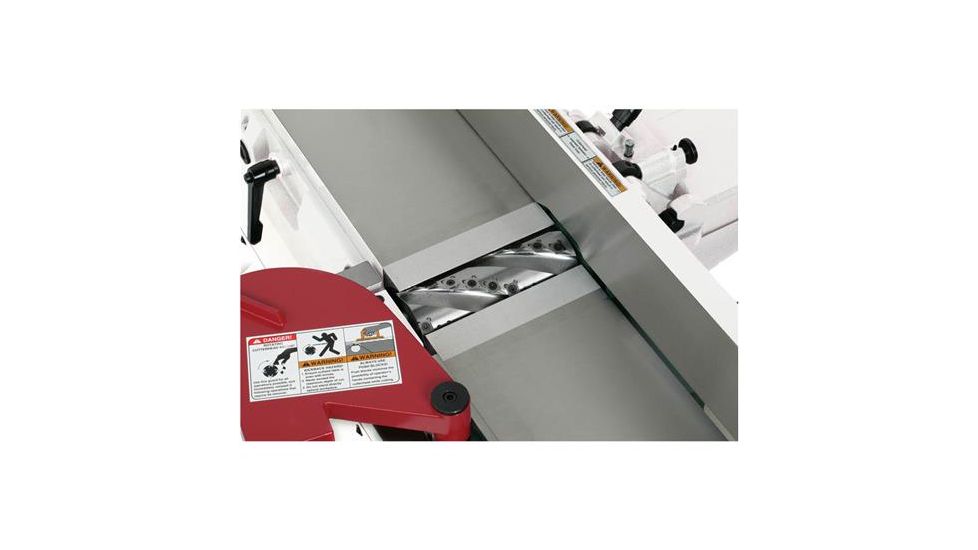

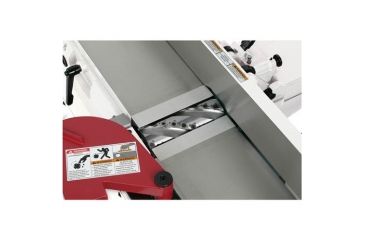

  • Helical Cutterhead with 30 Indexable Carbide Inserts
  • Built‐In Mobile Base

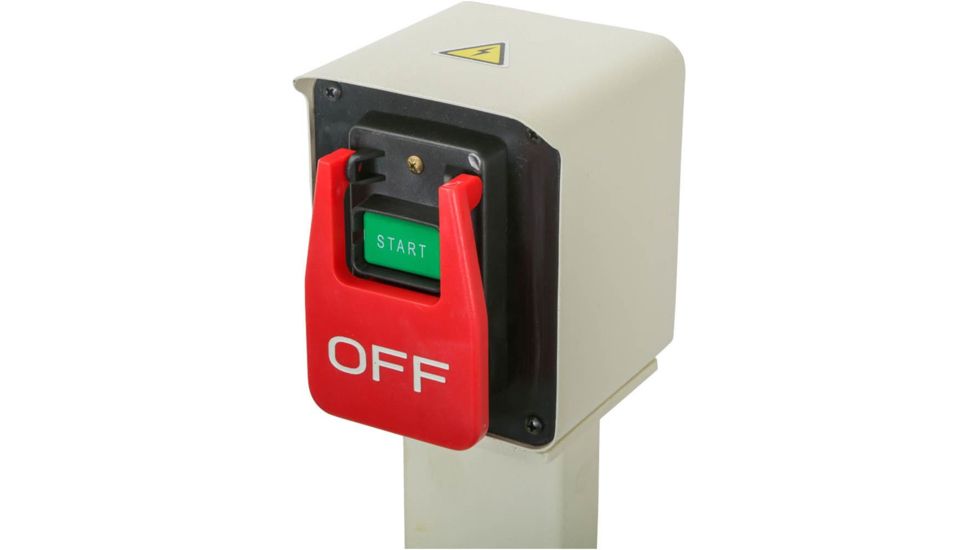

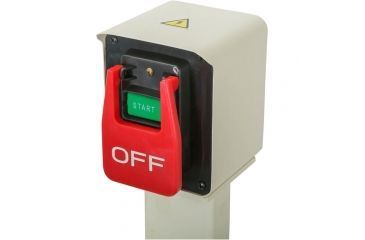

  • 1‐1/2 HP MotorEasy‐to‐Reach Pedestal‐Mounted Control Panel

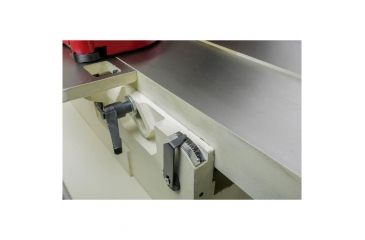

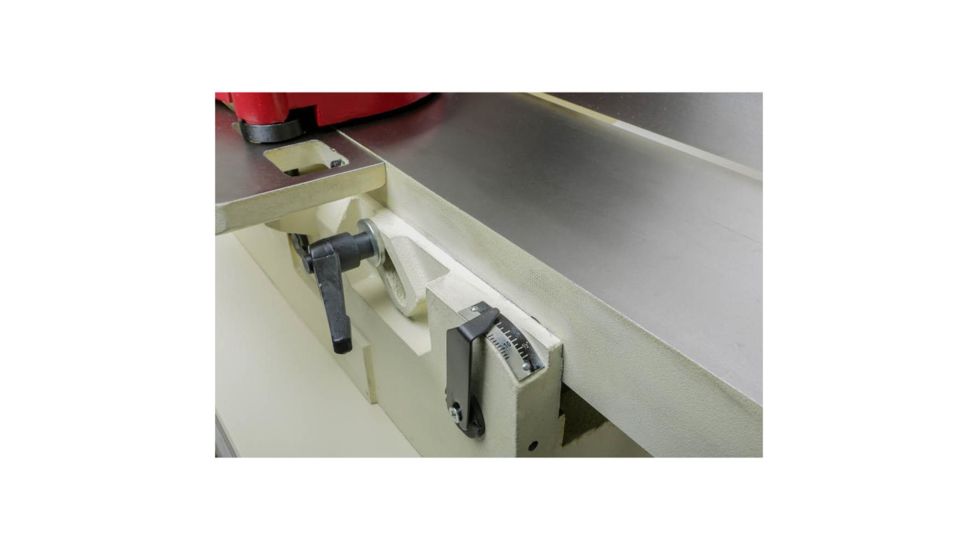

  • Parallelogram Table Design Allows for Full Adjustability and Calibration
  • 5in Tall Fence
  • Sturdy Cabinet Stand
  • Motor: 1.5 HP, 120V/240V, pre-wired 120V, single-phase, TEFC, 3450 RPM
  • Amps: 15A/ 7.5A
  • Precision ground cast iron table size: 55.5 x 6 inches
  • Floor to table height: 32.5in
  • Maximum depth of cut (per pass): 0.125in
  • Maximum width of cut: 6in
  • Rabbeting capacity: 0.5in
  • Cutterhead type: Spiral with German-made indexable carbide inserts
  • Cutterhead diameter: 3in
  • Cutterhead speed: 4850 RPM
  • Cuts per minute (effective): 19,400
  • Power transfer: V-belt drive
  • Switch: standard push-button type switch with large off paddle for safety
  • Fence system: positive stops ±45 and 90 Celcius
  • Built-in mobile base
  • Built-in 4" dust port
  • Parellogram table design allows for full adjustability and calibration
  • Easy-to-reach pedestal mounted control panel

Package Contents:

  • Shop Fox 6in Jointer with Spiral Cutterhead
