Leica CRF Rangemaster 900 Rangefinder, Yards 40517
Tap Tap to Zoom
Read More...
Code: LE-RF-CRF-900-40517
MPN: 40517
UPC: 4022243405172

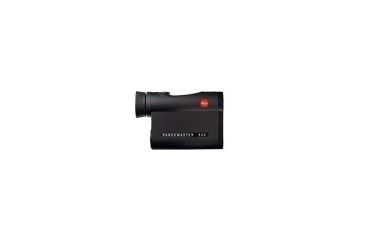

Product Info for Leica CRF Rangemaster 900 Rangefinder, Yards
The Leica CRF Rangemaster 900 Range finder has a maximum range of 825 meters and is therefore the ideal starter rangefinder for many different applications. Leica CRF Rangemaster 900 Rangefinder design and operation concept are fully tuned to the needs of the user. To ensure a steady shake-free image Leica CRF Rangemaster 900 Range finder is not held with both hands like a pair of binoculars but is intended for single-hand operation. Weighing a mere 220 grams, the lightweight and unusually compact rangefinder is the perfect companion, fitting into the smallest shirt pocket.
With its excellent light transmission ratio, wide field-of-view, unsurpassed image qualities and comfortable ocular with generous diopter compensation, the Leica CRF Range Master 900 Rangefinder is both a high-end 7x rangefinder and a measuring device. Delivering the highest measuring precision even on small or moving targets and extreme reliability in difficult weather conditions at a finger tip, the Leica CRF Rangemaster 900 Rangefinder features an LED-display which automatically adjusts itself to surrounding light conditions.
All optical and electronic components in Leica CRF Rangemaster 900 Range Finder are integrated in a solid die-cast metal housing ensuring optimum precision and durability, a super-compact, lightweight and watertight carbon fiber reinforced housing protects the CRF Rangemaster 900 Rangefinder by Leica against the harshest of weather conditions.
Leica CRF Rangemaster 900 Rangefinder available versions:
- 40517: Leica CRF Rangemaster 900 Rangefinder, Yard-Version
Specifications for Leica CRF Rangemaster 900 Rangefinder:
| Delivery scope: | Carrying cord, battery, Cordura case | |
| Magnification: | 7x | |
| Front lens diameter: | 24 mm | |
| Exit pupil: | 3.4 mm | |
| Twilight factor: | 13 | |
| Field of view at 1,000 m: | 115 m | |
| Field of view at 1,000 yds: | 347 ft | |
| Eye-relief: | 15 mm | |
| Objective angle of view: | 6.6 | |
| Diopter compensation: | ± 3.5 diopters | |
| Distance measurement: | ||
| Range: | 10 to approx. 825 m, 10 to 902 yds | |
| Accuracy: | ± 1 m/yd to 366 m/400 yds, ± 2 m/yds to 732 m/800 yds, ± 0,5 % over 732 m/800 yds | |
| Read-outs: | LED display with four digits, automatic brightness control | |
| Eyepiece for eyeglass wearers: | yes | |
| Eyecup: | turn down rubber eyecup | |
| Prism system: | Roof prism with phase correction coating P40 | |
| Watertightness: | Watertight to a depth of 1 m/3.2 ft | |
| Housing: | Carbon fiber-reinforced composite material | |
| Dimensions (W x H x D): | 4.5 x 2.25 x 1.25 in. | |
| Weight: | approx. 220 g / 7.8 oz incl. battery | |
| Meter/Yard Selector: | no | |
| Laser: | Eye-safe invisible laser according to EN and FDA class1 | |
| Laser beam divergence: | approx. 0.5 x 2.5 mrad | |
| Measuring time: | maximum approx. 0.85 s | |
| Measuring mode: | Scanning mode | |
| Power supply: | 1 x 3 V/Lithium-type CR2 | |
| Battery lifetime: | approx. 2,000 measurements at 20°C/68°F | |
Features of Leica CRF Rangemaster 900 Rangefinder:
- LED display with four digits, automatic brightness control
- Roof prism with phase correction coating P40
- Watertight
- Carbon fiber-reinforced composite material
- Eye-safe invisible laser
- Lightweight and compact
Package Contents:
- Leica CRF Rangemaster 900 Rangefinder
- Carrying cord
- Battery
- Cordura case
