Product Discontinued by Manufacturer

L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera has been discontinued by Thermal Eye and is no longer available. Our product experts have helped us select these available replacements below. You can also explore other items in the Thermal Imaging Cameras category yourself to try and find the perfect replacement for you!

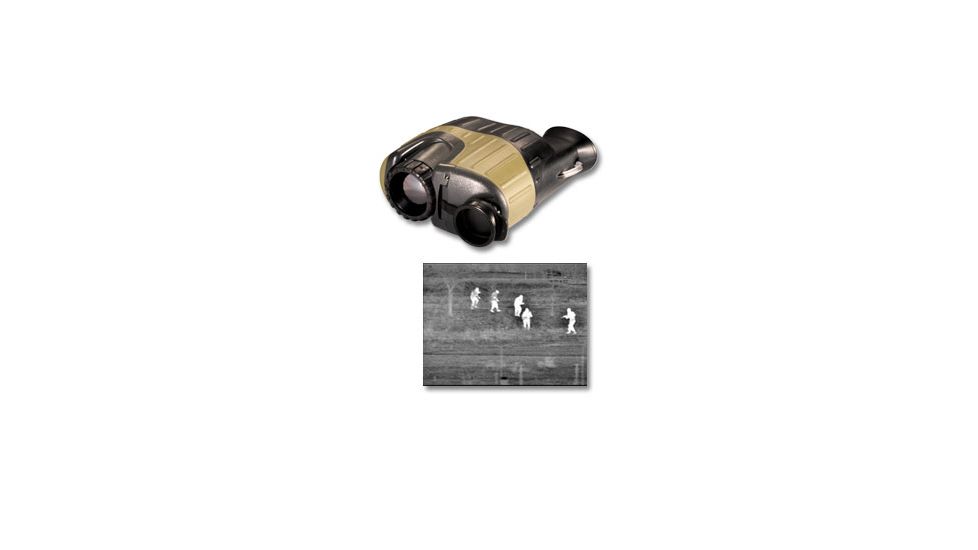

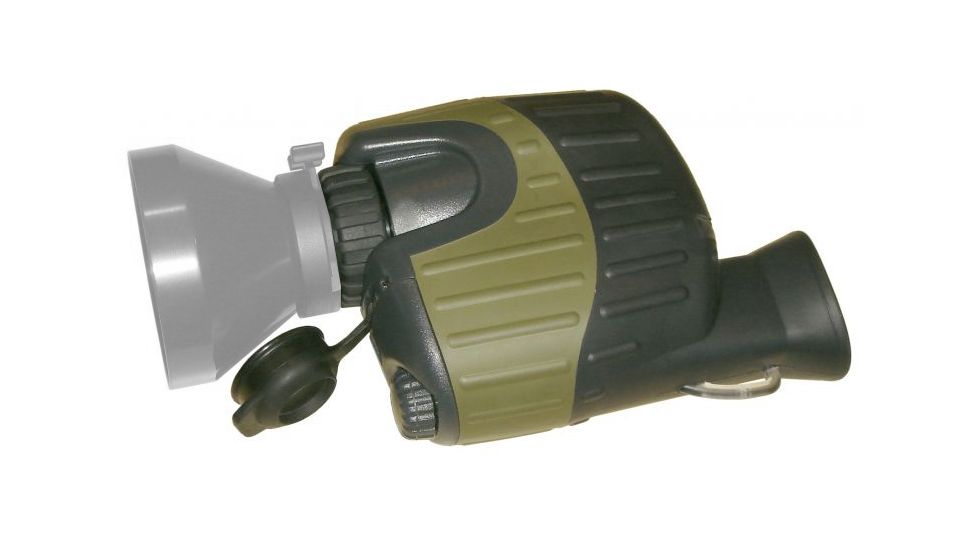

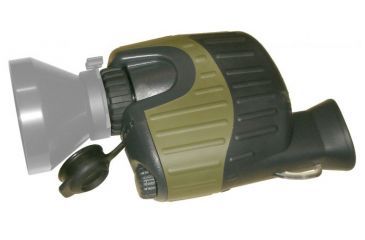

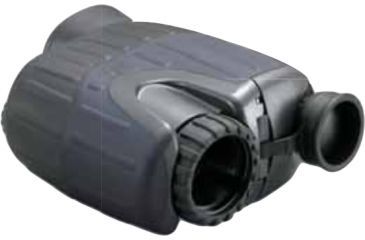

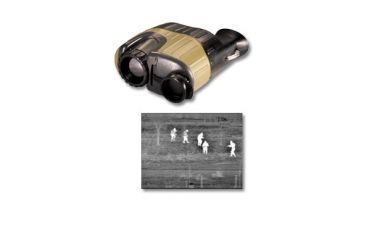

L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera Product Info

Warning: Requires U.S. Department of Commerce License for export.

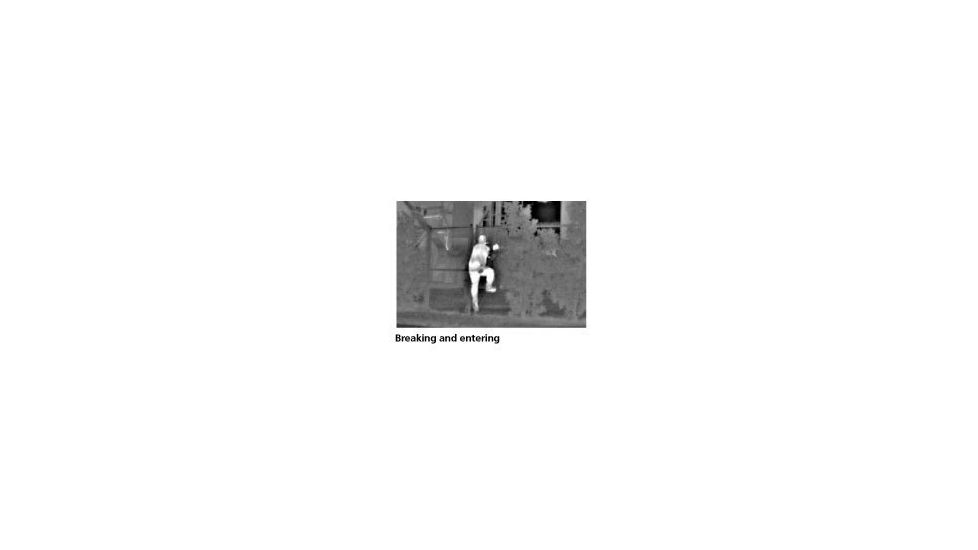

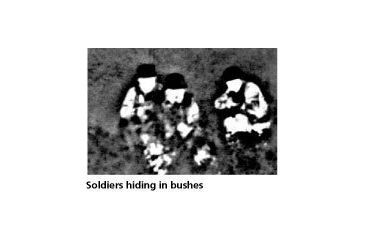

Powerful and unrelenting, the L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera has performed with accolades in both Afghanistan and Iraq. This thermal imaging camera by Thermal Eye offers 50% greater stand-off-rangeimage than the previous generation's unit and can detect human activity at up to 450 meters/1,500 feet (about the length of four football fields). The L3 Thermal Eye X200xp Waterproof Thermal Camera also has improved image processing for best-in-class image quality. The unit's sophisticated image processing provides greater scene detail and improved clarity and sharpness. The advanced technology of L3 Thermal Eye X200XP Thermal Imagers also offer improved vision in challenging field conditions like dust, smoke and complete darkness, all while preventing a blooming effect from nearby lights.

Specifications for L3 Thermal Eye X200xp Waterproof Thermal Camera:

Type & Material: Amorphous Silicon Microbolometer
Pixel Count (Resolution): 160 x 120
Spectral Response: 7-14 μm (filter bandwidth)
Thermal Sensitivity: ≤50 mK
Startup Time: ~ 3 sec. (includes 1 sec. display of start-up logo)
Contrast / Brightness: Fully Automatic
Susceptibility to Blinding Visible Light: None
Infrared Polarity: White = Hot, Black = Cold
Lens Focal Length: 25mm
Field of View: 11° x 8°
Range to Detect Human Activity: Up to 1500 feet (450 meters)
Minimum Focus Distance: ~ 3 ft. (1 meter)
Focus Method: Manual
Video Output Format: Analog
Viewfinder Display: Monochrome LCD (320 x 240)
Viewfinder Dimming: Integral to power on/off switch
Power Source: Two (2) AA batteries
Operating Time: ~ 2 hours with alkaline, ~ 6 hours with lithium
Auxiliary Power: 9 to 12 VDC input on rear outlet jack
Operating Temperature: -4°F to 140°F (-20°C to 60°C)
Storage Temperature: -4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance: Waterproof to 9 feet (3m) submersion, buoyant in fresh water Shockproof to 6 feet (2m) drop
EMC Compliance: FCC Part 15 & CE Mark
Size: 5-1/4in L x 4-1/2in W x 2in H (13.4 x 11.4 x 5.1 cm)
Weight: 13 oz (381g), batteries installed
Eye Cup: Integral to camera body with 2in eye relief

Features of L3 Thermal Eye X200XP Thermal Imagers:

  • Provides an officer the ultimate safety and security solution
  • Provide an incredibly clear picture of the surrounding scene, up to 1000 feet, through the use of superior imaging software
  • 30 hertz 30µm detector offers fast turn-on time and real-time video image
  • 50% greater stand-off range than X100 predecessor to detect human activity at up to 450 meters away
  • Sophisticated DSP image processing for best-in-class image quality
  • Rugged design with integral rubber eyecup can survive accidental drops and underwater submersion to 9 feet
  • Pocket-sized, weighing only 13 ounces
  • Operates on 2 AA batteries
  • On-screen battery level indicator
  • Left or right hand operation with slip resistant grip
  • Tactile battery loading feature

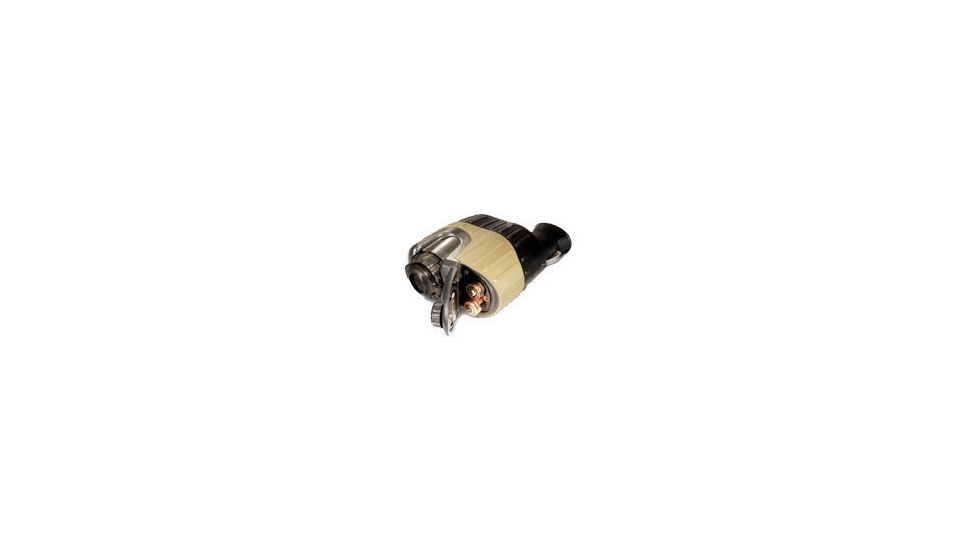

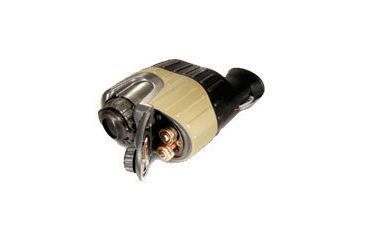

  • Sealed cover for enclosing video and power jacks
  • Long eye relief viewfinder for use with glasses
  • 1/4-20 tripod mount

Package contents:

  • L3 Thermal Eye X200xp Shockproof Thermal Camera

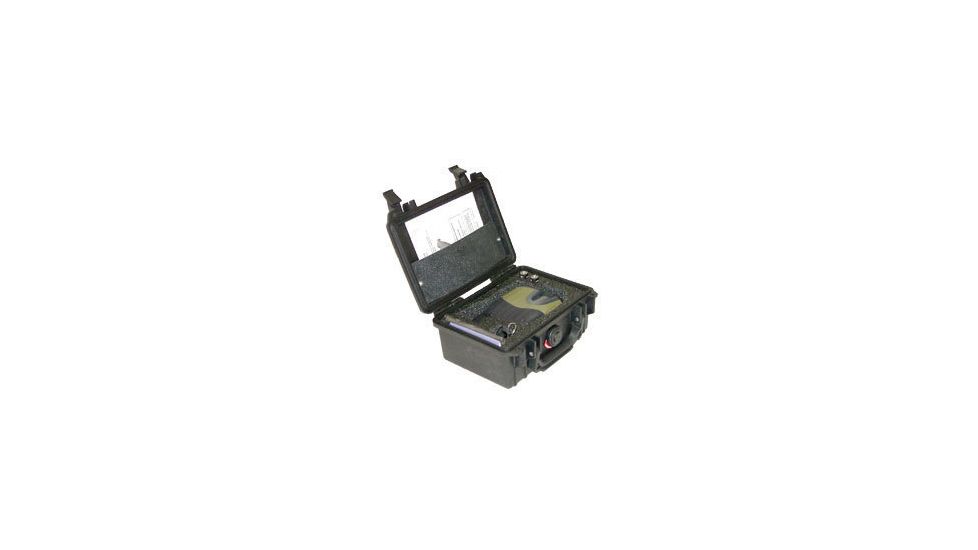

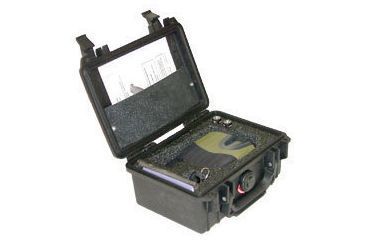

  • Hard Protective Case
  • 2 AA alkaline batteries
  • Neck strap & wrist strap
  • Lens cover
  • Lens cleaning cloth
  • Owner's Manual

L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera Related Products

L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera Unorderable Models

Thermal Eye X200XP Thermal Imaging Infrared Camera PAL 3000300-2, MPN: X200-3000300-2, Code: EY-HS-X200-3000300-2
Thermal Eye X200XP Thermal Imaging Infrared Camera NTSC 3000300-1, MPN: 3000300-1, UPC: 200-3000300-1, Code: EY-HS-X200-3000300-1

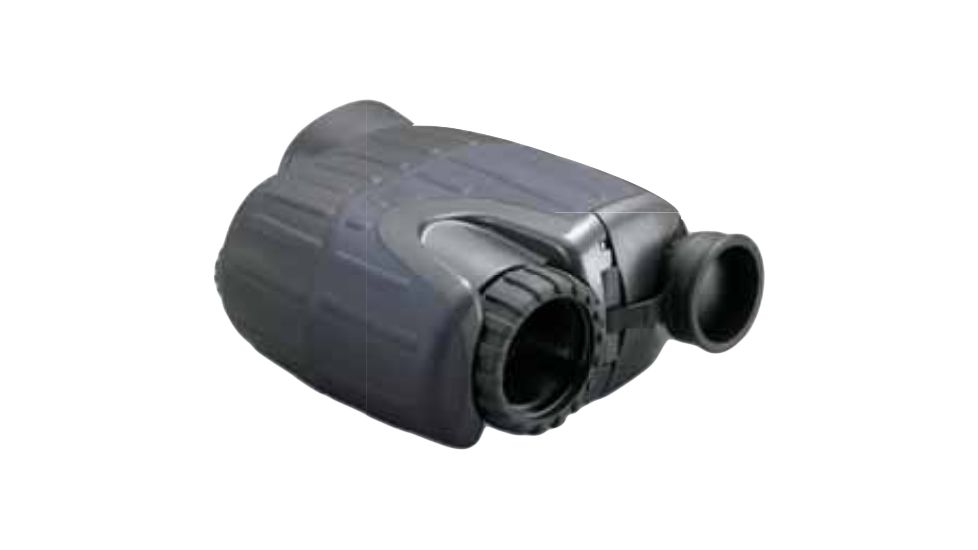

L3 Thermal-Eye X200XP Thermal Imaging Infrared Camera 7070410-0001, MPN: 7070410-0001, Code: EY-HS-X200-7070410-0001
