- Gun Make:
- SIG Sauer
- Gun Model:
- Sig Sauer MCX-SPEAR
- Color:
- Tan/Gold
- Finish:
- Anodized
- Fabric/Material:
- 7075-T651 Aluminum
- Gun Type:
- Rifle
- Blade Finish:
- Anodized
- Caliber:
- .277 Fury, .308 Winchester
- Case Finish:
- Anodized
- Handle Color:
- Black
- Handle Finish:
- Anodized
- Weight:
- 2 oz
Code: 3KD-WS-ADMCX308ZRC-ZRC-SPEAR-H
MPN: ZRC-SPEAR-H
UPC: 850036188667
Product Info for Arisaka Defense MCX Spear 308 Zero Retention Clamp
The Patent Pending Arisaka Zero Retention Clamp (ZRC) greatly reduces zero shift for lasers and iron sights that are mounted on the handguard of the MCX Spear. This version is designed for the MCX Spear chambered in 277 Fury and 308.
The MCX Spear handguard is not adequately secured to the upper receiver. This allows the handguard to flex significantly, causing a laser or front sight zero to change when minor pressure is applied to the handguard. A shift of 10 mils or more is possible by pushing on the handguard with your support hand while the rifle is shouldered. Additionally, the zero does not always return to it's original position once pressure is removed from the handguard.

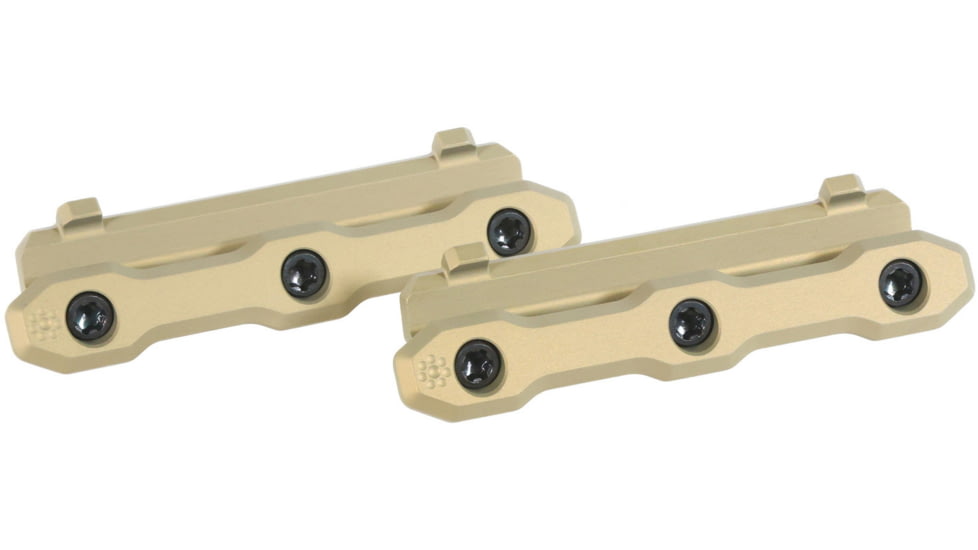

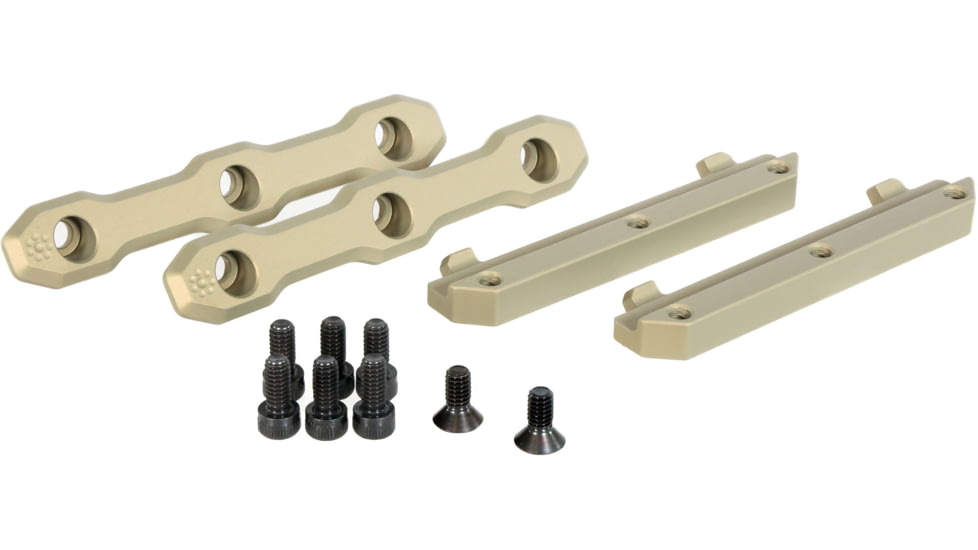

The Arisaka ZRC consists of two sets of 7075 clamps that mount in the vent slots on either side of the handguard. The inner half of each clamp engages the extended upper receiver. This secures the handguard tightly to the upper receiver across two axis, greatly reducing the zero shift. The clamps do not touch the barrel or gas system, preserving the free-floated barrel. A pair of tapered head screws are also included to replace the handguard retaining button head screws on each side of the receiver. This eliminates forward/rear and vertical movement at those two contact points.
The ZRC clamps are contoured to provide minimal interference with the user's hands while gripping the handguard.
Arisaka is not responsible for any damage caused by improper installation. The ZRC must be uninstalled before removing the handguard from the rifle.
Package Contents:
- Arisaka Defense MCX Spear 308 Zero Retention Clamp
