What is the FOM and resolution. Filmed unfilmed Expert Answer

The Armasight PVS-14 Pinnacle Elite Gen 3 IIT is a Filmed monocular. Resolution is 64-72 lp/mm. The Figure of Merit is not provided by the manufacturer. I'd recommend reaching out to them directly for more information.

by Ethan, Gear Expert, September 26, 2022
Customer Reviews
Helpful Positive Review Stunning tube performance by Stevey GB, September 14, 2023
Outrageous tube, super clean and white. My test unit had a standard 2000 FOM minimum tube, which is already excellent, but combined with this quality glass, housing and components make this Armasight PVS-14 a standout in a crowded field. Elbit Pinnac...
Read More...
1/1 found this helpful
Read 1 Review
Receive a 3x and 6x Mag Lens with Armasight PVS-14
On Sale
Generic Free Gift

Receive a 3x and 6x Mag Lens with Armasight PVS-14 ($648.00 Value)

Receive a free Armasight PVS-14 3x Lens with the purchase of eligible models! Your free gift will automatically be added when you add an eligible model to your cart while supplies last.See all qualifying items for this gift
In Stock
2 Models Available

Show with deals only:

Free Gift Available
On Sale
Condition
All
Search
Click to select this item for your bundle offer!

Buy Together and Save

As low as $4,314.29
You Save Up to 35%
Receive $90.29 OP Bucks
Free shipping* & free returns*

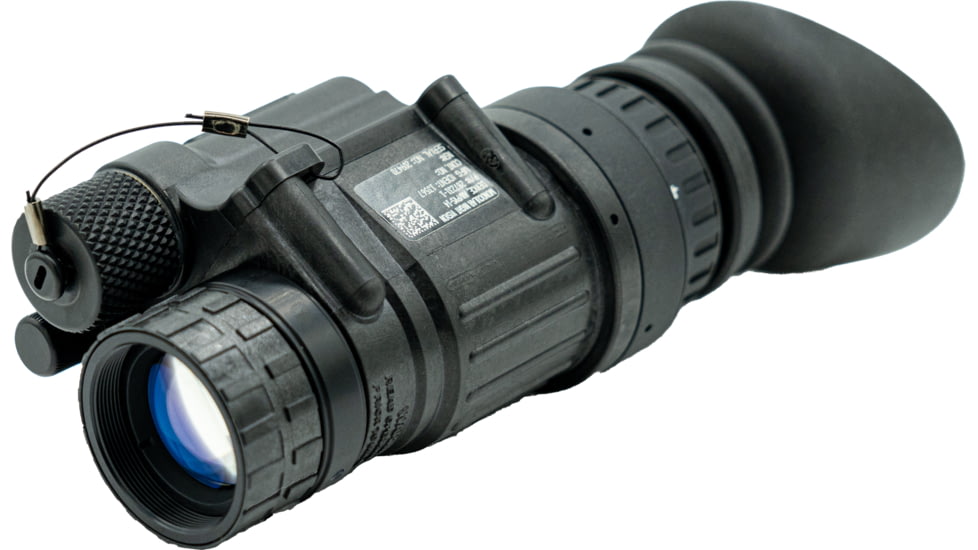

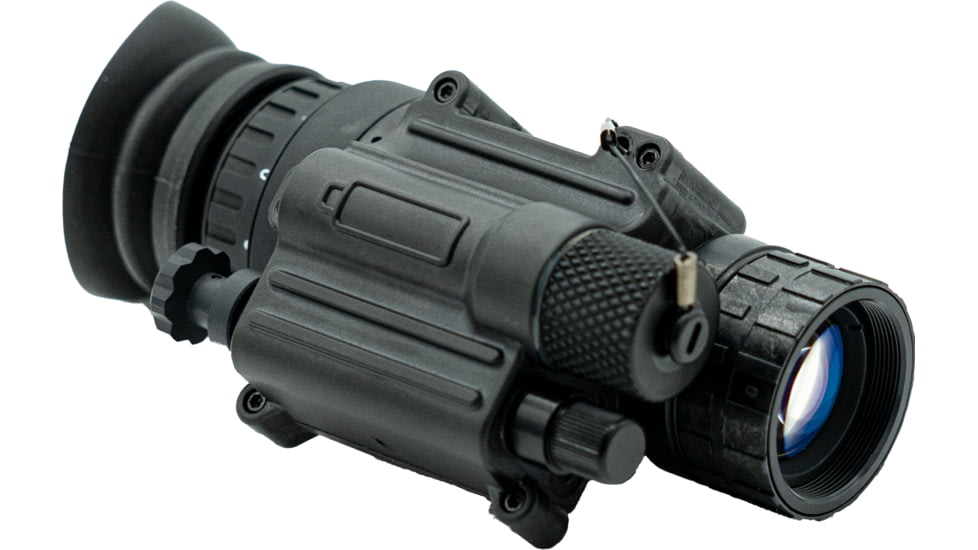

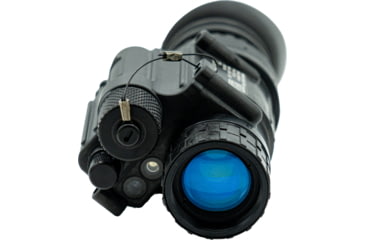

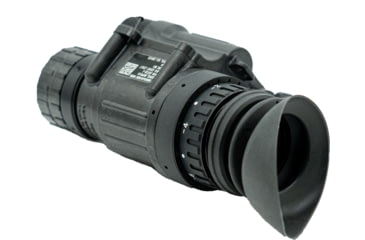

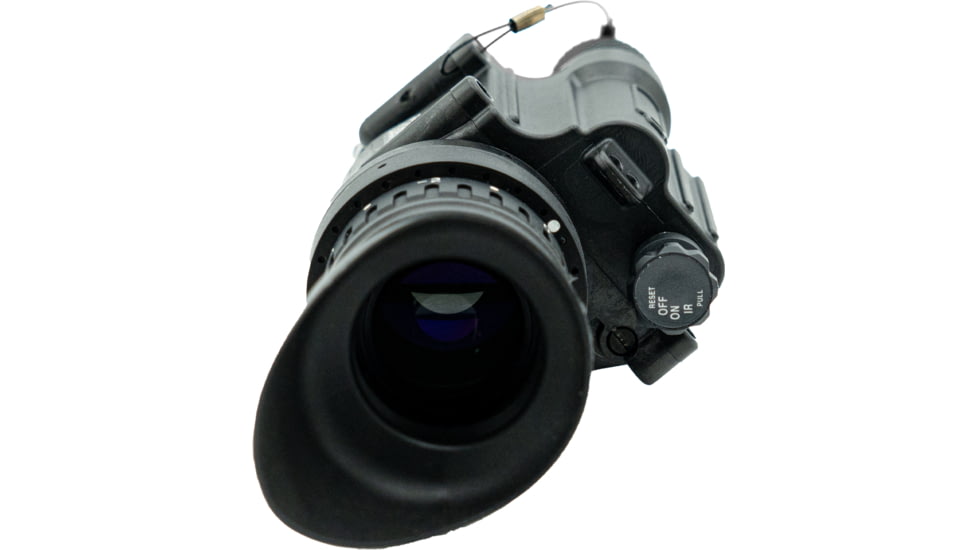

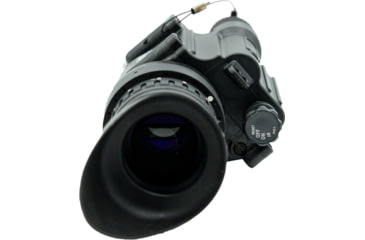

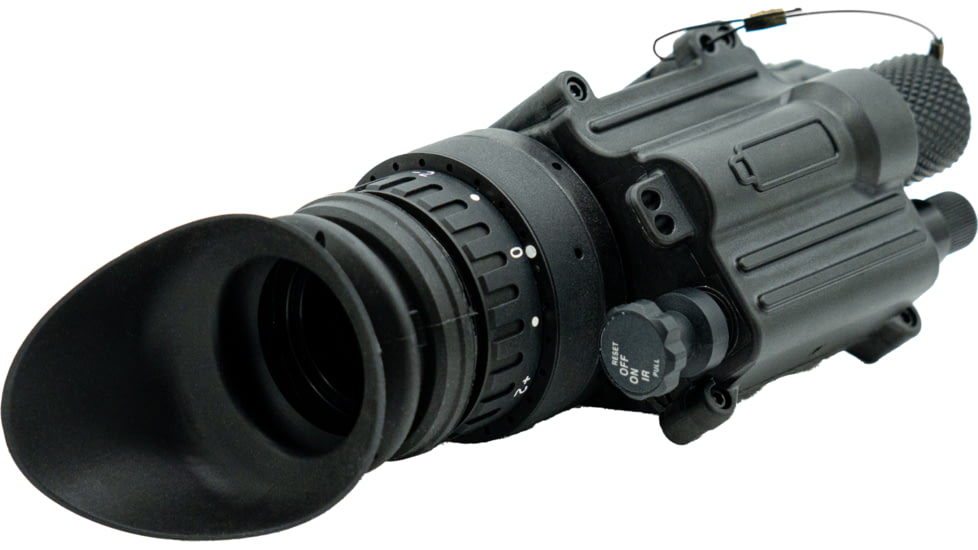

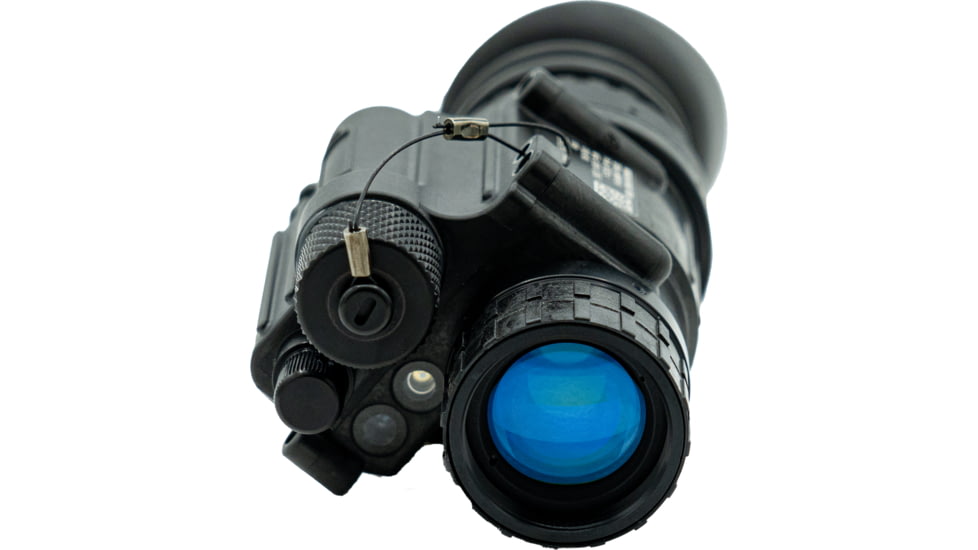

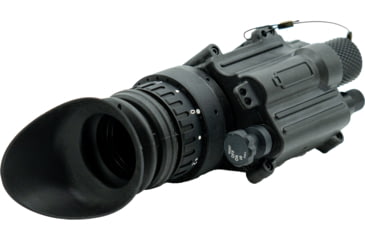

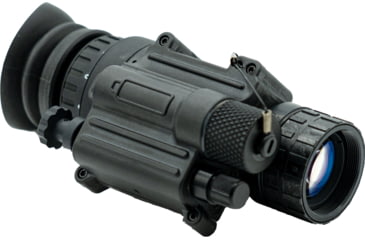

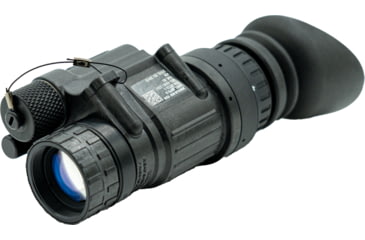

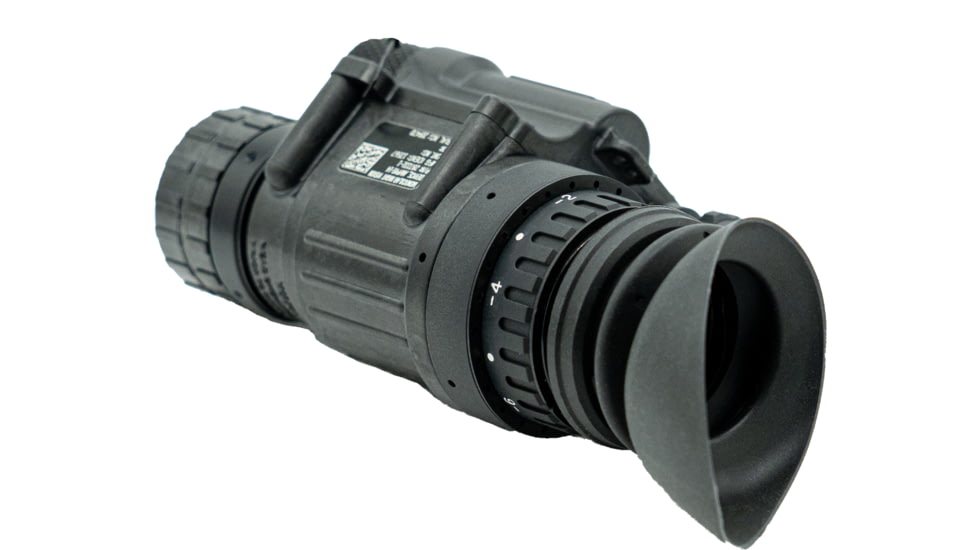

Product Info for Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular

The PVS-14, arguably the most recognized Night Vision Device on the market. A Multi-Purpose Night Vision Monocular that’s been used by the US Military and NATO Allies all over the world. It is proven, dependable, and durable. The PVS-14 is everything you need and nothing you don’t when it comes to night vision.image

Backed by its military pedigree, the PVS-14 is completely mission capable giving you the ability to head mount, helmet mount, use as a handheld unit, or be configured for use with various camera systems. The Armasight PVS-14 uses commonly found AA batteries and delivers an outstanding 50 hours of battery life. If you do find yourself running low on power, a helpful low battery indicator will appear in your field of view while using the NVD.

For those nights when there is little to no ambient light the Armasight PVS-14 has a built-in infrared (IR) illuminator to allow you to brighten up your surroundings which can only be seen under night vision. The Manual Gain Control allows you to adjust the brightness of your display to your personal needs. The Armasight PVS-14 delivers consistent performance allowing you to complete your tasks in the dark.

We understand that night vision can be complex to understand. Armasight breaks it down by separating our devices by field of view, phosphor color, and by grading our tubes in a way that is easier to understand at first glance. Get to know our offering below to decide which tube you need in your next night vision device.

Pinnacle Elite – Just when you thought things couldn’t get any better, Pinnacle Elite steps up to show you what Gold Standard means. With a minimum of 2000 FOM with a higher signal to noise ratio (SNR) and absolutely no inclusions in zone 1, this tube only allows 1 inclusion in zone 2 or zone 3 that can’t be bigger than .006.” These devises have virtually no defect, if you find one than you have superhuman sight and likely don’t need night vision!

Pinnacle Elite 2376 – Take all the ingenuity that makes up the Pinnacle Elite and add in what our Military calls “the perfect number”. A minimum FOM of 2376, the perfect ratio of SNR and Resolution per current military standards. These units are used by top law enforcement agencies, elite hunters, and by professionals like yourself that simply put, just want the best.

Specifications for Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular:

Manufacturer: Armasight
Night Vision Generation: 3
Image Intensifier Tube: Pinnacle Elite, Minimum 2000 FOM
System/Lens Resolution: 72 - 81 lp/mm
Field of View, Angle: 40 degrees
Diopter Adjustment Range: -6 - 2 dpt
Battery Type: AA
Weight: 355 g
Magnification: 1 x
Color: Black
Objective Lens Diameter: 27 mm
Length: 2.4 in
Focus Range: 25 cm to infinity
Eye Relief: 25 mm
Battery Life: 60 Hours
Water Resistance Level: IP67
Operating Temperature: -60 - 120 Fahrenheit
Image Intensifier Color: White Phosphor
Battery Quantity: 1

Features of Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular

  • Gen 3 18mm gated Pinnacle Elite tubes providing the highest performance and reliability as well as picture clarity available under all light level
  • High resolution, high gain, and extraordinarily high photoresponse in visible and near infrare
  • Multifunctional: handheld as a monocular, head-mounted or helmet-mounted as a single-eye goggle
  • Variable gain control for enhanced performance in altering light conditions
  • Lightweight: 355g maximum
  • Powered by auniversally available AAbattery

Package Contents:

  • Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular
  • Lens Cap
  • Eyecup
  • Sacrificial Window
  • Demist Shields
  • Tethering Cord
  • Helmet/Head Mount Adapter (J-Arm)
  • Product Manual
  • Lens Cloth
  • Soft Carrying Case

Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular Orderable Models

List of Orderable Models

Armasight PVS-14 1x27mm Night Vision Monocular, Powered by Pinnacle Elite Gen 3 Ghost White Phosphor IIT, 40 Degrees, Black, NEBF60151G9DL1 , MPN: NEBF60151G9DL1 , UPC: 810081910552 , Code: 0A-NVN-ARMS2-NEBF60151G9DL1
DEMO, Armasight PVS-14 1x27mm Night Vision Monocular, Powered by Pinnacle Elite Gen 3 Ghost White Phosphor IIT, 40 Degrees, Black, NEBF60151G9DL1 , MPN: NEBF60151G9DL1-DEMO , Code: 0A-NVN-ARMS2-NEBF60151G9DL1-DEMO

Armasight PVS-14 1x27mm Pinnacle Elite IIT Night Vision Monocular Unavailable & Discontinued Models

List of Unorderable Models

DEMO, Armasight PVS-14 1x27mm Night Vision Monocular, Powered by Pinnacle Elite 2376 Gen 3 Ghost White Phosphor IIT, 40 Degrees, 40 degrees Black, NEBF60151G9DY1 , MPN: NEBF60151G9DY1-DEMO , Code: 0A-NVN-ARMS2-NEBF60151G9DY1-DEMO
Armasight PVS-14 1x27mm Night Vision Monocular, Powered by Pinnacle Elite 2376 Gen 3 Ghost White Phosphor IIT, 40 Degrees, 40 degrees Black, NEBF60151G9DY1 , MPN: NEBF60151G9DY1 , UPC: 810081911467 , Code: 0A-NVN-ARMS2-NEBF60151G9DY1
