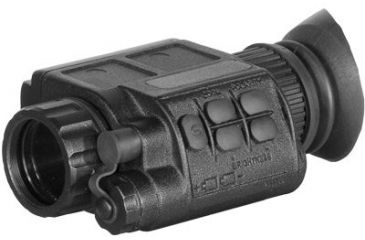

ATN OTIS-10 9hz Thermal Imaging System

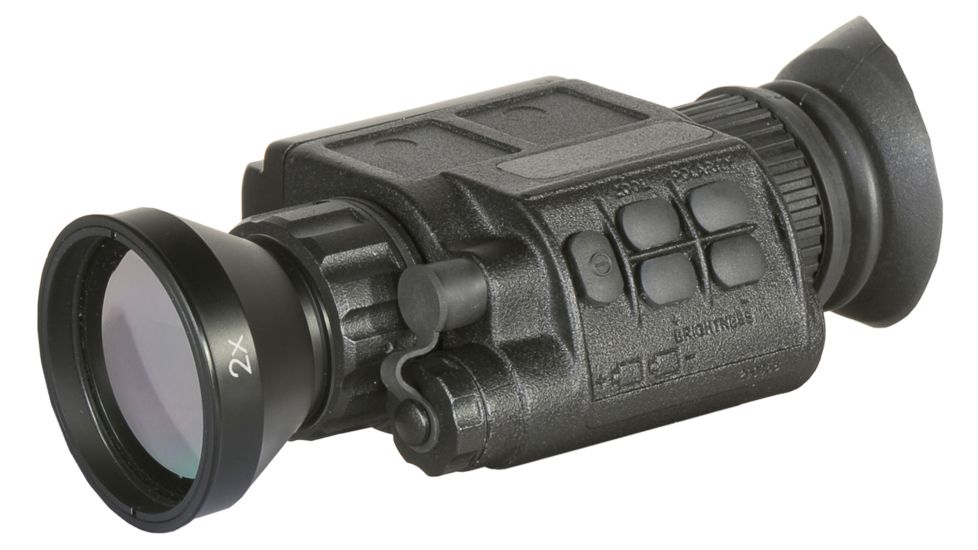

ATN OTS10 with 2x Lens

ATN OTS10 Left View with Lens Cap

ATN Otis-10 9Hz Color Thermal Handheld Scope TIMPOTIS10CHZ9

ATN OTIS-10 9hz Thermal Imaging System TIMNOTIS10HZ9

ATN OTs10 Professional Use

ATN Otis-10 9Hz Color Thermal Handheld Scope TIMPOTIS10CHZ9

ATN OTIS-10 9hz Thermal Imaging System TIMNOTIS10HZ9

1 of 6 images

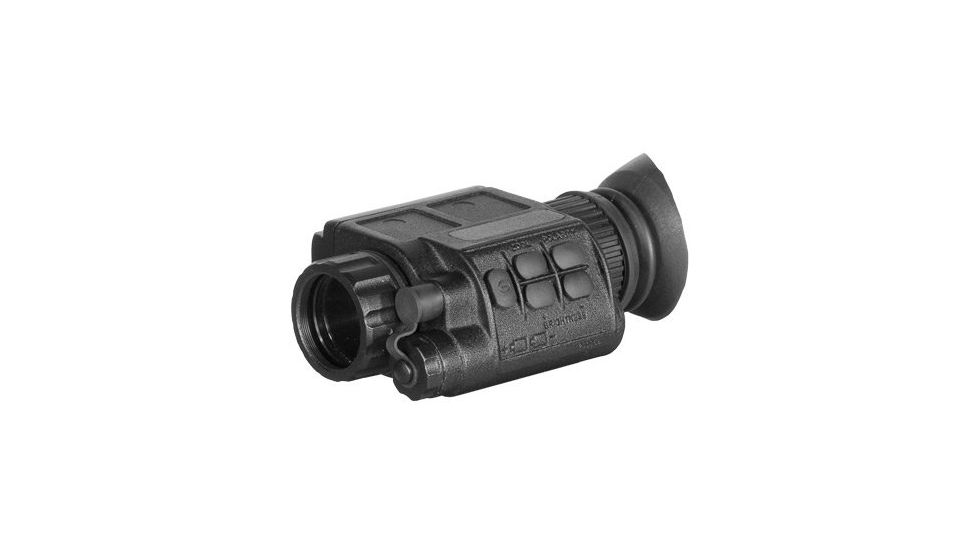

ATN OTIS-10 9hz Thermal Imaging System

2 of 6 images

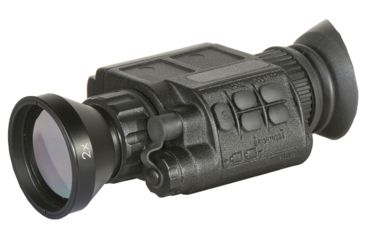

ATN OTS10 with 2x Lens

3 of 6 images

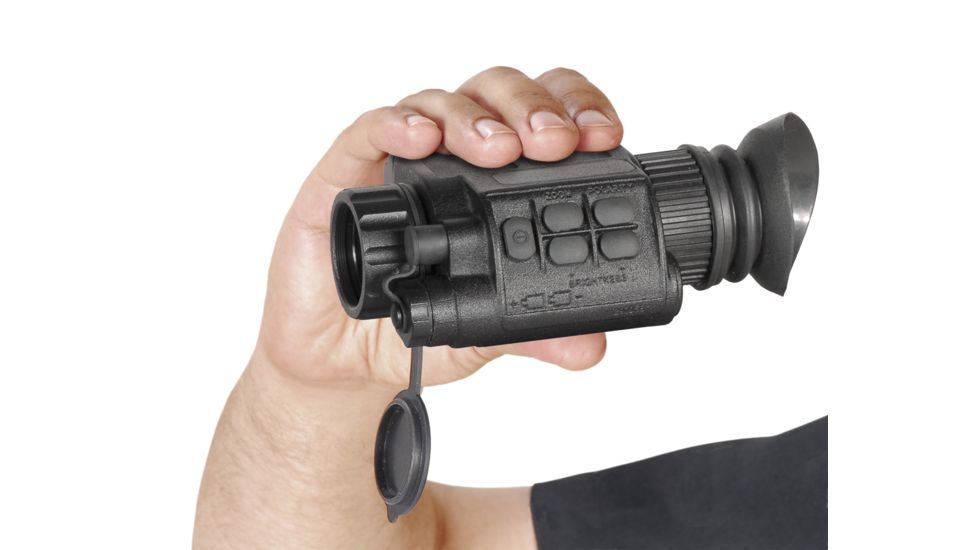

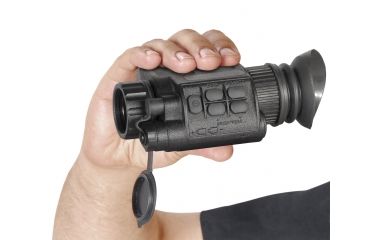

ATN OTS10 Left View with Lens Cap

4 of 6 images

ATN Otis-10 9Hz Color Thermal Handheld Scope TIMPOTIS10CHZ9

5 of 6 images

ATN OTIS-10 9hz Thermal Imaging System TIMNOTIS10HZ9

6 of 6 images

ATN OTs10 Professional Use

Tap Tap to Zoom

Questions & Answers

Customer Reviews

Helpful Positive Review

ATN OTS10-9Hz by Legacy Reviewer, April 22, 2011

Im a professional air soft player and take part in tournaments all over the world, not only in the US. I was looking for some thermal vision to play in the woods with. Initially,I was searching for some night vision and then later I decided to purcha...
Read More...

3/9 found this helpful

Most Recent Reviews

Otis-10 scope problems by Legacy Reviewer, February 15, 2013

First, initially this was pretty expensive but I own other ATN items and figured it would last. After owning it for over a year and after the warranty expired I started having problems. One was the fact it was prone to burn ins and flaring and need...
Read More...

Read All 2 Reviews

Product Discontinued by Manufacturer

ATN OTIS-10 9hz Thermal Imaging System TIMNOTIS10HZ9 has been discontinued by ATN and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Thermal Imaging, Thermal Imaging Monoculars yourself to try and find the perfect replacement for you!

Compare

Add to Wishlist

Product Info for ATN OTIS-10 9hz Thermal Imaging System TIMNOTIS10HZ9

ATN OTIS-10 TIMNOTIS10HZ9 Thermal Imaging Scope sets the standard for affordable, small, lightweight Thermal Imaging Cameras. This Thermal imaging by ATN is pocket-sized, rugged and durable. This ATN Thermal Camera offers superior performance, compact size, comfort of wear and cost efficiency that make it the perfect thermal imaging device. The OTIS 9hz is a thermal system by ATN is built around state-of-the-art uncooled Thermal Imaging technology. The ATN OTIS-10 thermal monocular provides the excellent image quality that is unaffected by lights or shadows that seriously hamper the image quality of image intensified night vision. The ATN OTIS-10 (9Hz) is ideal for Home Security, Public Safety, First Responder and Security Operations

We offer complete line of ATN Thermal Imaging. For our complete selection of products by ATN on sale please visit our ATN page. For more Thermal Imaging please visit our Thermal Imaging store section.

Specifications for ATN Otis 10 9hz Thermal Imaging System TIMNOTIS10HZ9

Magnification:	1,8X
Objective Focal Length:	25 mm
FOV:	11 x 8
Focus Range:	from 1m to infinity
Focus Adjustment:	Manual
Exit Pupil:	14 mm
Eye Relief:	25 mm
Detector Type:	Uncooled Microbolometer
Spectral Response:	7-14 µm
Pixels:	160 x 120
Pixel Size:	30 x 30 µm
Angular Resolution, mrad:	1,2
Thermal Sensitivity:	< 0,1C
Range to Detect a Human:	475 m
Output Format:	Analog PAL / NTSC
Display:	OLED matrix
Display Format:	SVGA, 852 x 600 pxl
Color:	Monochrome
Digital ZOOM:	Fixed 2x (optional 5x)
Brightness Adjustment:	Manual
Contrast Adjustment:	Automatic
Available User Interfaces:	From outside PC through USB interface
Power Supply:	2 x 3V, 123A type
Start-Up Time:	< 3 sec
Operating Time w/one battery pack:	4 hrs
External Power Supply:	DC 6V, 500 mA
Operating Temperature Range:	from -20C to +50C
Waterproof:	Yes, up to 10m submersion
Dimensions:	118 x 81 x 47 mm
Weight (w/batteries):	0,34 kg

Features of ATN Thermal Imaging System OTIS 9hz:

High resolution digital thermal imaging
Compact, lightweight and durable housing
High Quality optics
Video and computer output
Video/Image polarity selection
Waterproof

Package Contents:

ATN Otis TIMNOTIS10HZ9 9hz Hand Held Thermal Imaging System
- Lens Cap
- Video Cable
- Two Lithium Batteries
- Pelican Waterproof Hard Case
- Warranty card
- Soft carrying Case
- Lens Tissue
