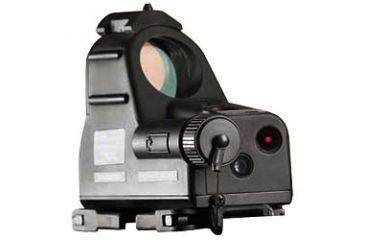

Fraser-Volpe MARS Multi-Purpose Aiming Reflex Sight RED WPIC ADR 889800000
Tap Tap to Zoom
Read More...
Product Discontinued by Manufacturer
Fraser-Volpe MARS Multi-Purpose Aiming Reflex Sight RED WPIC ADR has been discontinued by Fraser Optics and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Red Dot Sights & Accessories, Red Dot Sights yourself to try and find the perfect replacement for you!
Product Info for Fraser-Volpe MARS Multi-Purpose Aiming Reflex Sight RED WPIC ADR
Fraser-Volpe MARS Multi-Purpose Aiming Reflex Sight RED WPIC ADR provides that best performance in terms of speed, accuracy and survivability. The Fraser-Volpe MARS Reflex Sight built for durability with rugged construction. The MARS ( Multi-Purpose Aiming Reflex Sight ) by Fraser-Volpe combines the advantages of quick-reaction red-dot sight with a user-controlled aiming laser. MARS is perfect for first responders and the U.S. military. With ease in activation and use, and high performance sighting the Fraser-Volpe MARS is a high grade fast action red dot sight for accurate performance in tactical situations.
Specifications for Fraser Volpe MARS Red Dot Sight:
| Optics & Sensors | ||
|---|---|---|
| Magnification: | 1x | |
| Sight exit aperture: | 25mm | |
| Reflex dot diameter: | 0.3mRad (about 1" @ 100m) | |
| Parallax: | <0.2mRad at infinity | |
| Light transmission: | 85% for photopic response | |
| Red dot compensation: | Automatic, dynamic range = 1 | |
| Dot intensity control: | OFF, HIGH, MEDIUM, LOW, VERY LOW 5 positions (NVGs) | |
| Optical distortion: | 0.5o angular deviation of parallel light beams through the sight | |
| Laser Pointers | ||
| Red: | 650nm, 1.0 mW, Class 2 (IEC 825-1) | |
| IR (optional): | 850nm, 0.4 mW, Class 1 (IEC 825-1)**restricted to law enforcement and military only | |
| Beam divergence: | 0.5mRad | |
| Zeroing | ||
| Adjustment: | Reflex sight and pointing lasers adjusted with one operation | |
| Physical | ||
| Weight: | 15.2oz. with battery and cable | |
| Dimensions: | 4.9in (L), 1.7in (W), 3.4in (H) | |
| Adapter: | Picatinny rail | |
| Electrical | ||
| Power Source: | Single 1.5V "AA" battery | |
| Reflex Sight operation: | 200hr continuous | |
| Laser pointer: | 10,000 operations of 5 sec each | |
| Low voltage warning: | @ 1V ±0.1V, non-interfering with sight operation | |
| Reliability | ||
| Laser switch lifetime: | Min 40,000 operations | |
| Environmental | ||
| Temperature Range: | -20° C to +55° C MIL STD 810F | |
| Humidity: | 95% at +70° C | |
| Thermal shock: | -20° C to +70° C | |
| Immersion: | 1m, 30min. Salt fog, dust and sand | |
| Altitude: | 15,000ft-50,000ft (non-operating) | |
| Shock: | 30g for 11ms | |
Features of FraserVolpe Reflex Sight MARS:
- Rugged Construction
- Simple, Intuitive Operation
- Integrated, Pressure Activated Laser Pointer (IR or Red)
- Automatic Brightness Compensation
- Easy Bore Sighting
- Sleep Mode
- Reflex sight, solid prism not holographic
- Quick release mount on Picatinny rail
- Easy zeroing of Reflex Sight and Laser with single adjustment
- Coated optics without glare or corona affect in the sight window
- Undetectable aiming dot with NVGs from the front
- Replaces multiple "bolt on" components
- World-wide military and law enforcement usage
Package Contents:
- Fraser-Volpe MARS Multi-Purpose Aiming Reflex Sight RED WPIC ADR
