Code: GA-ND-010-00484-00
MPN: 010-00484-00
UPC: 753759052249
The Garmin GMR 404 Marine Radar, 4ft Open Array (Network Device) 010-00484-00 sold by us is an 100% Genuine Garmin Digital Navigation product that comes with a Garmin manufacturer's warranty. Garmin GMR 404 Marine Radar, 4ft Open Array (Network Device) 010-00484-00 will fulfill all of your specific needs as Garmin products are trusted and considered to be the best Marine Electrical navigation systems all around the world. Buying a Garmin GMR 404 Marine Radar, 4ft Open Array (Network Device) 010-00484-00 from us means getting the best price and purchasing from a trusted source - we're an Authorized Garmin Dealer for all Garmin as well as running and cycling Marine Electrical, Marine Electrical, radios, and hundreds of Garmin GPS Accessories, software and maps.![]()
The GMR 404 open array radar allows you to scan more of what's out there while you're on the water. Whether ships, shores, birds or weather, you'll see it sooner with the powerful 4-foot GMR 404 and its larger counterpart, the GMR 406.

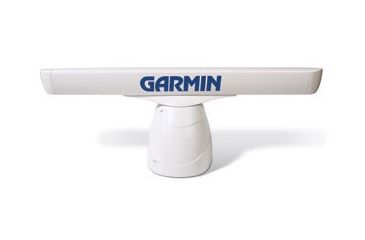

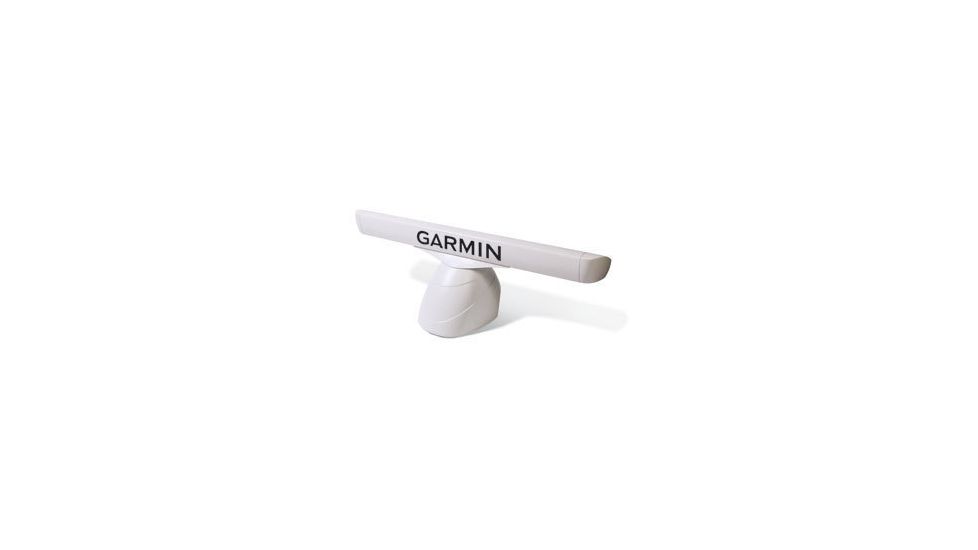

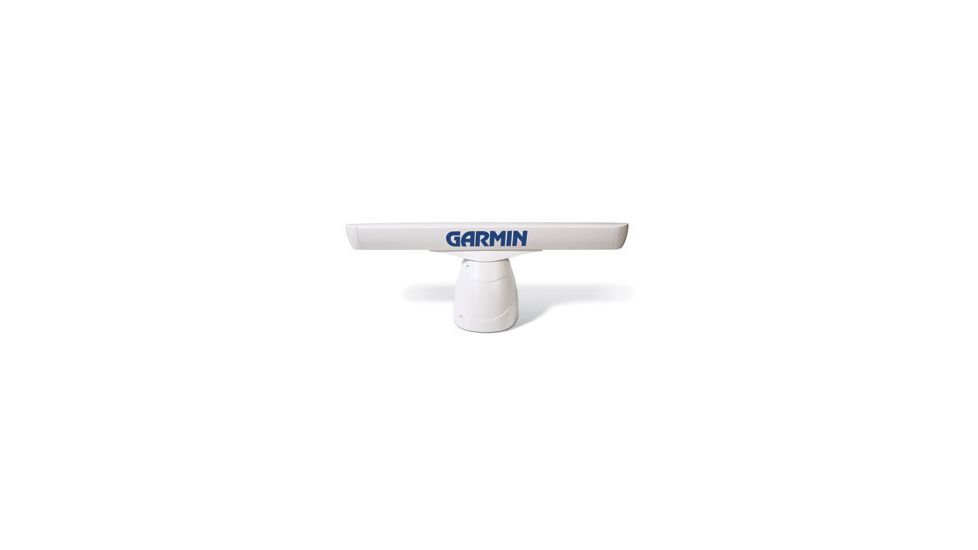

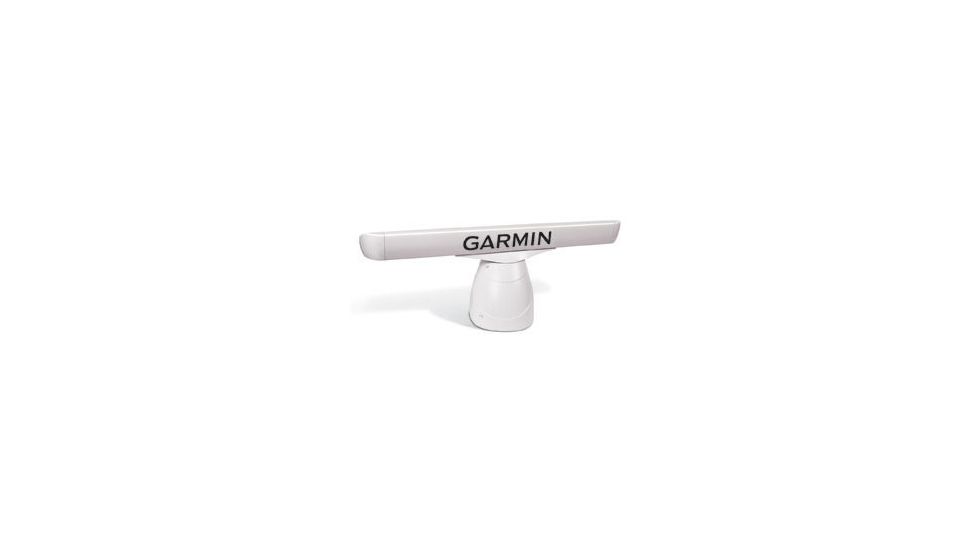

The GMR 404 is a 4-foot open array scanner with 1.8° beamwidth and a range of 72 nautical miles. With this beamwidth and 4 kilowatts of power, the 404 offers outstanding clarity, precision and target definition. You can also use the 404 to avoid traffic on the water with MARPA target tracking.

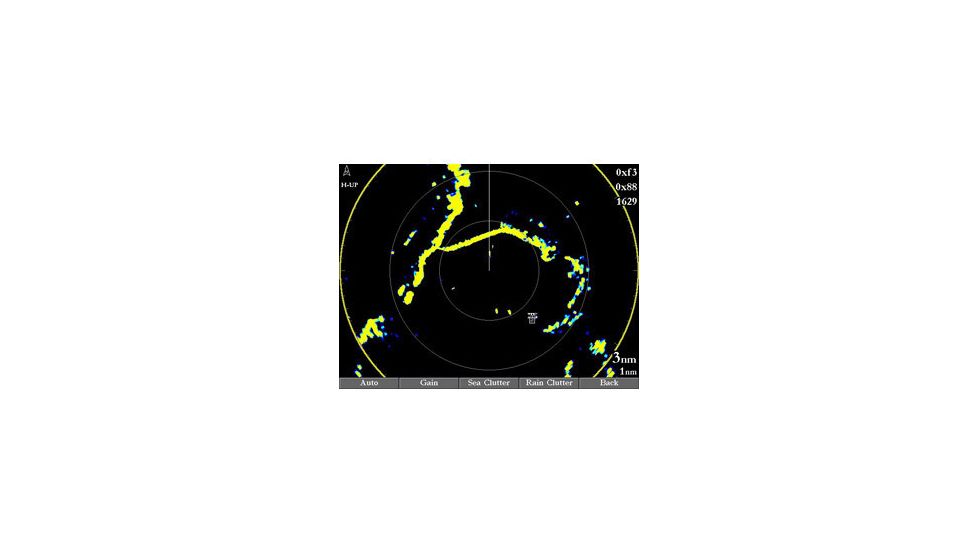

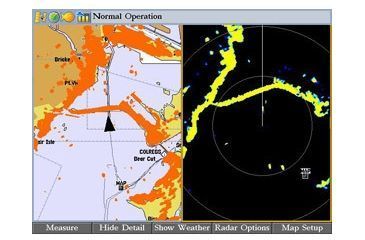

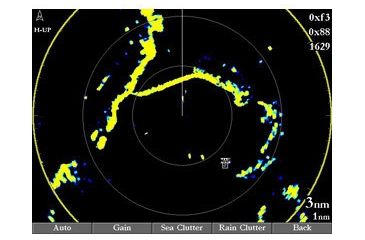

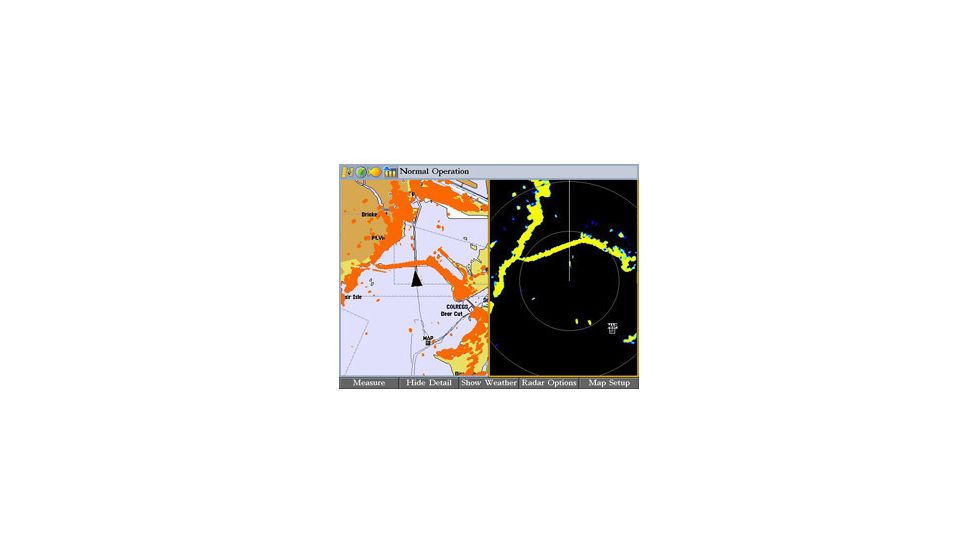

The GMR 404 transmits data over the Garmin Marine Network, a 100-megabit plug-and-play proprietary network that gives you the ability to expand your boat’s system as needed. Once connected to the network, any network-compatible Garmin chartplotter can double as your radar screen. And as an aid to locational awareness, you can overlay the GMR 404 radar image on the chartplotter's map page. You can also split the on-screen display so that you can view the map and the standard radar page simultaneously.
Note: Open array must be used in combination with pedestal which is sold separately.
| Unit dimensions, WxHxD:Â | 4' diameter (1.22 meter diameter); pedestal 24" x 11" x 16" (61 x 28 x 40.6 cm) | |
| Weight:Â | antenna only 12 lb (5.4 kg) | |
| Waterproof:Â | yes (IPX6) | |
| Antenna sweep:Â | 24 and 48 rpm | |
| Transmit power:Â | 4 kW | |
| Power input:Â | 10.5 - 38 V DC, 45 W | |
| Beam width: | 1.8° horizontal, 25° vertical | |
| Maximum range:Â | 72 nm | |
| Minimum range:Â | 20 meters | |
| RoHS version available:Â | no | |
| Garmin Marine Networkâ„¢ compatible:Â | yes | |
| MARPA target tracking (collision avoidance):Â | yes (requires heading sensor; sold separately) | |
| Guard zone alarm:Â | yes | |
